Ford Focus MK4 | handle light diffuser V2 (REMIX)

0 reviews
Diffuser fitting a Ford Focus MK4 to install Aliexpress ambient lights.
1h 14m
3× print file
0.28 mm
0.10 mm
0.40 mm
11.00 g
Creality Ender 3 V3 SE
0
12
0
341
updated December 24, 2024

Summary

PDF
Diffuser fitting a Ford Focus MK4 to install Aliexpress ambient lights.

Tags

ford focus fordfocus aliexpress ambientlight

Model origin

The author remixed this model.

Ford Focus MK4 handle light diffuser V2
 by aqf23


Differences of the remix compared to the original

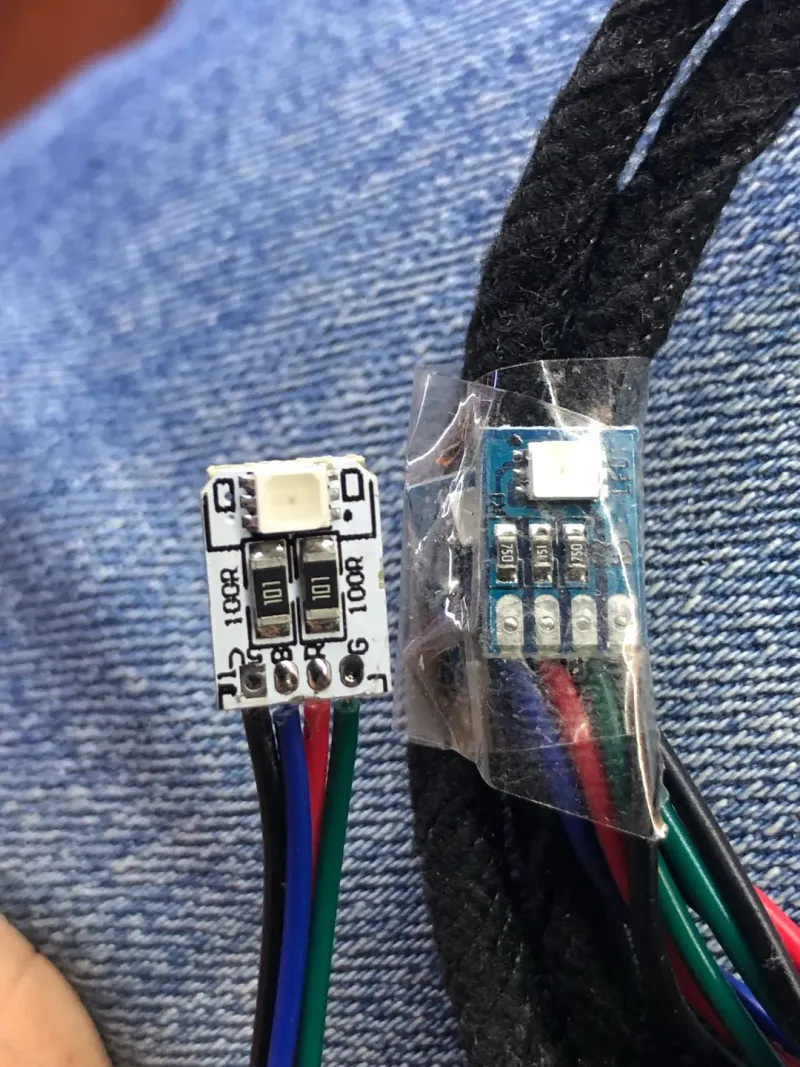

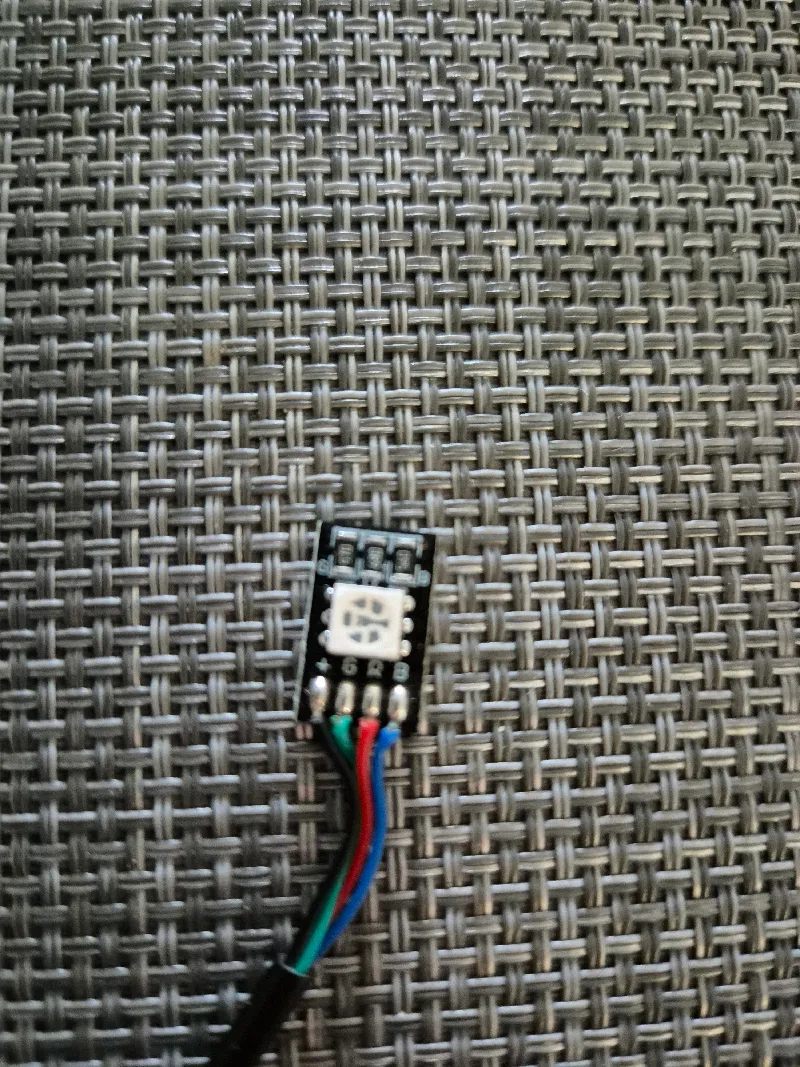

The ambient light kit i had ordered on Aliexpress used a different type of PCB.

Complete kit:

https://nl.aliexpress.com/item/1005002531794646.html?spm=a2g0o.order_list.order_list_main.141.146779d2uxOFcq&gatewayAdapt=glo2nld

Seperate parts:

https://nl.aliexpress.com/item/1005006262840179.html?spm=a2g0o.order_list.order_list_main.59.146779d2uxOFcq&gatewayAdapt=glo2nld

I re-designed the slot for the PCB's and added more hight to the diffuser so it catches the light better and cover the complete LED.

printed with fiberglass HT filament https://nl.aliexpress.com/item/1005006672244257.html?spm=a2g0o.order_list.order_list_main.17.146779d2uxOFcq&gatewayAdapt=glo2nld

Designed and added 2 extra .STL's

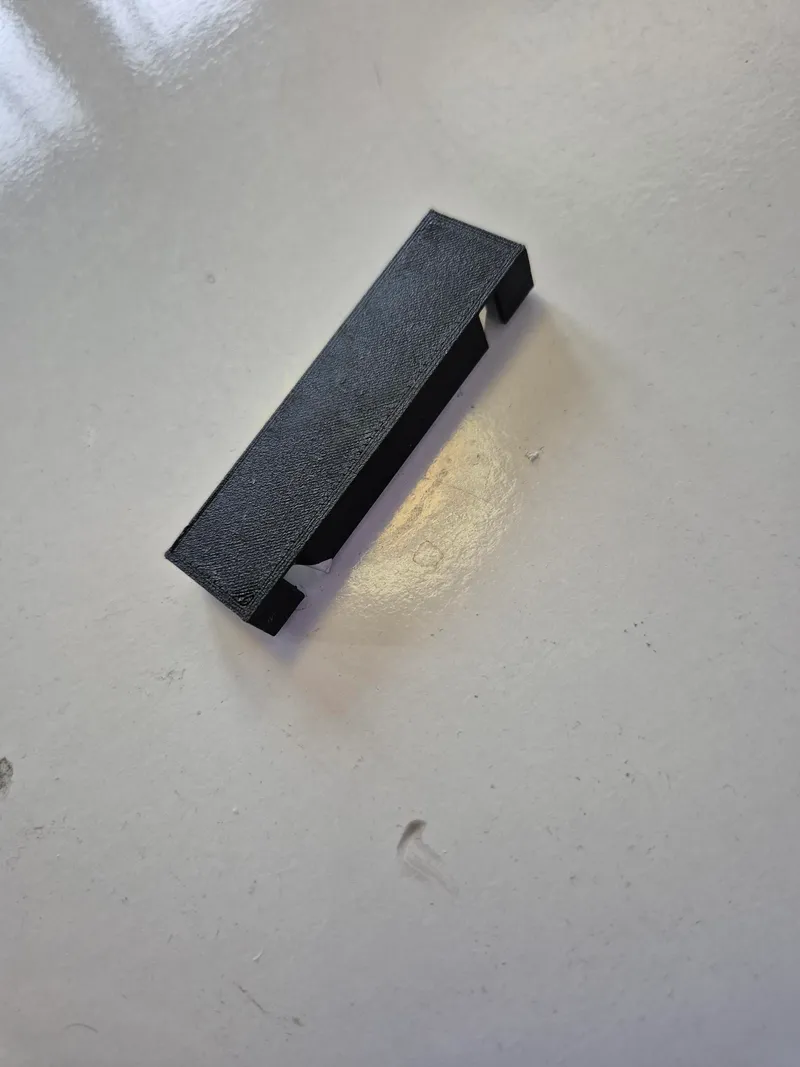

  • Template which you can slide into the handle first to mark your cuts for the diffuser.

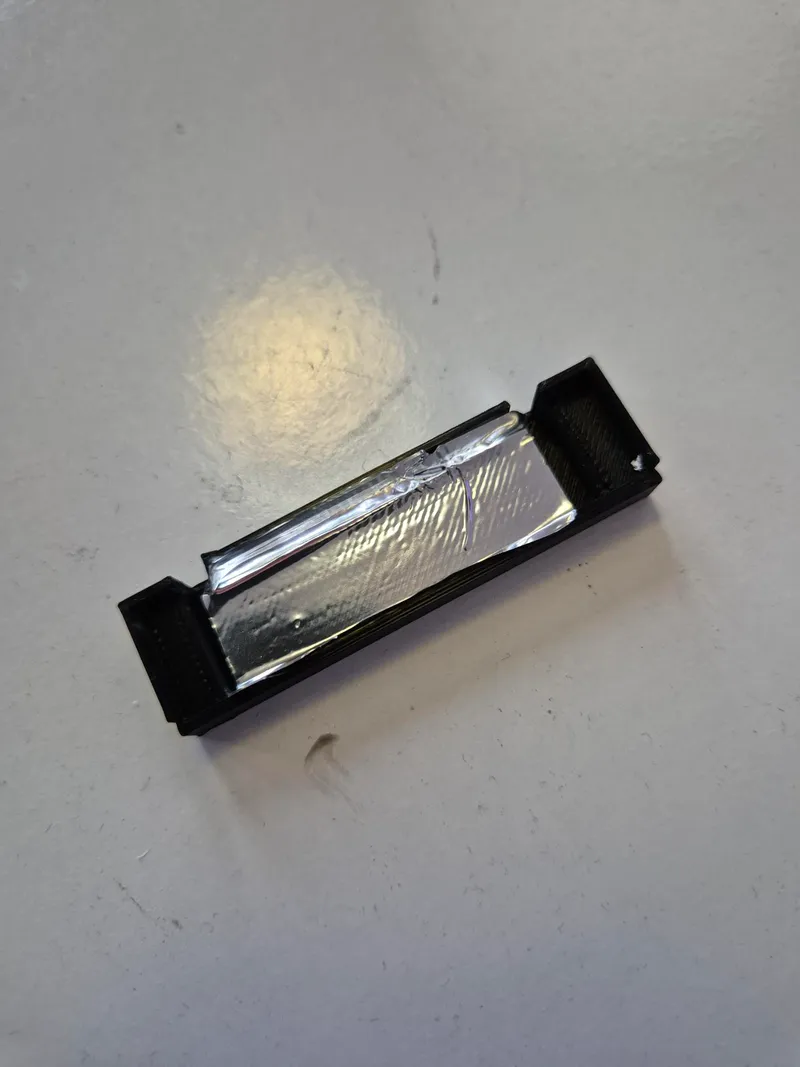

  • Cover to block the light at the top. You can ad reflective tape in the cover and close it on the handle with hot glue (best print in black).

Version used with the original model:

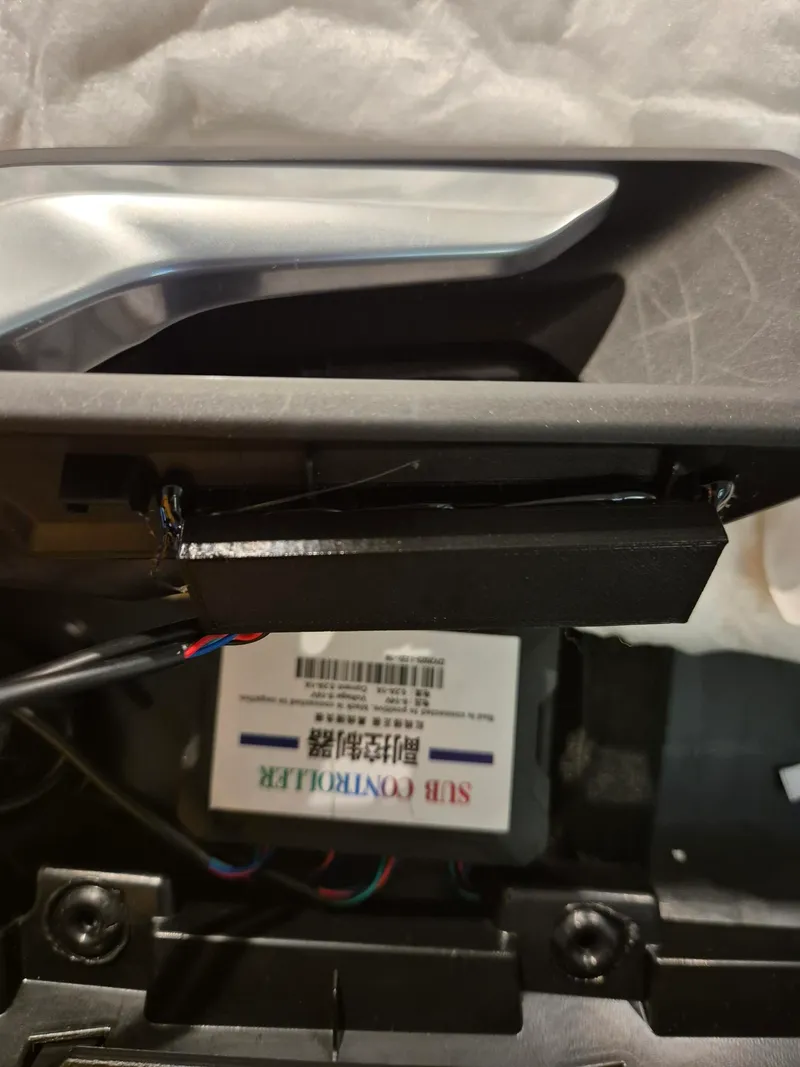

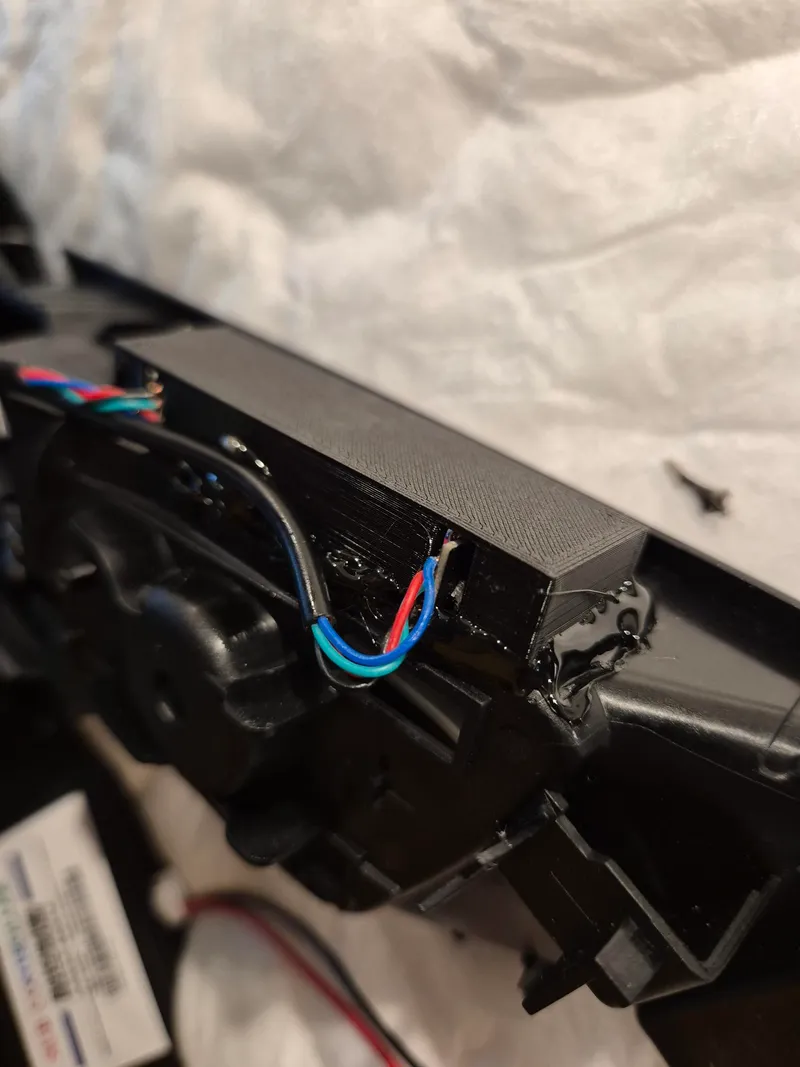

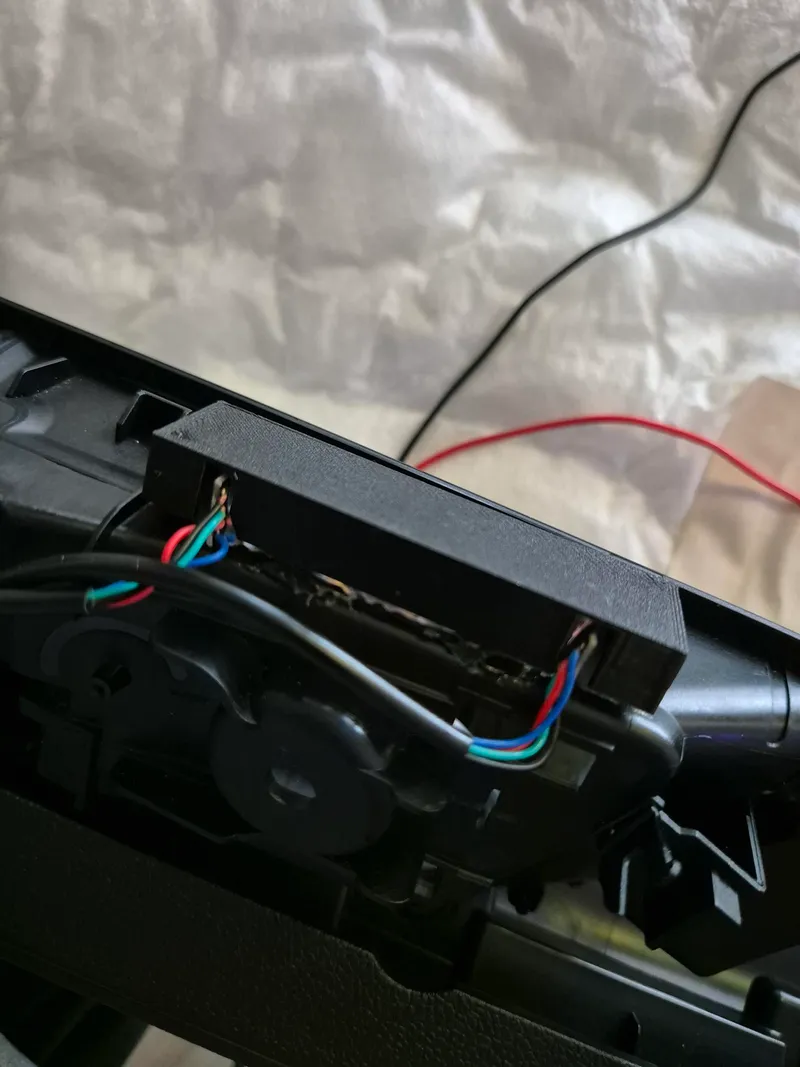

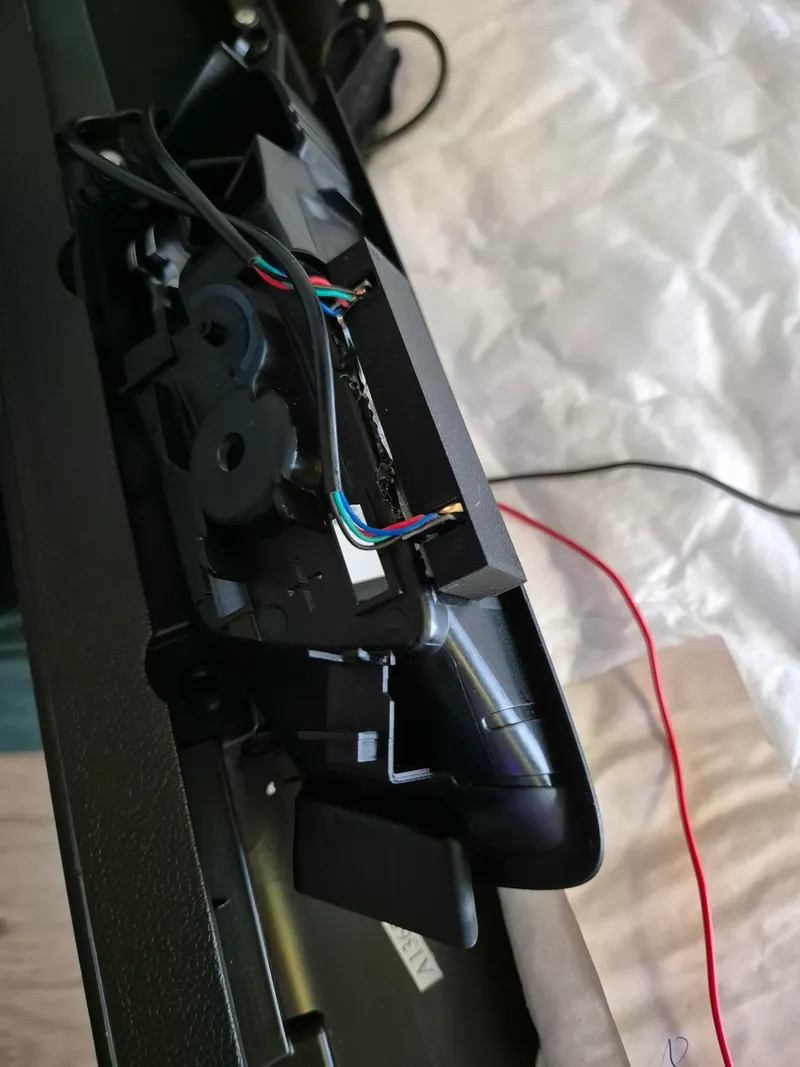

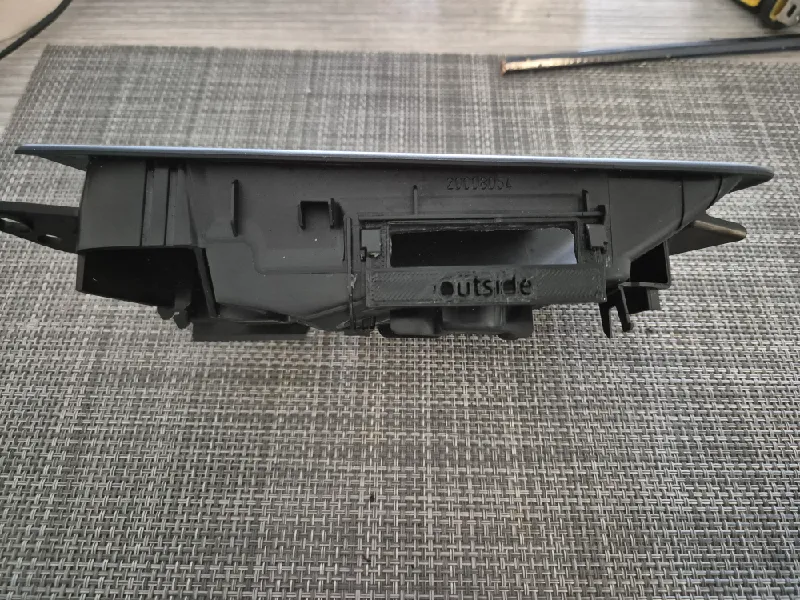

Version used with this remixed model:



















Stencil:

















Cover cap:
