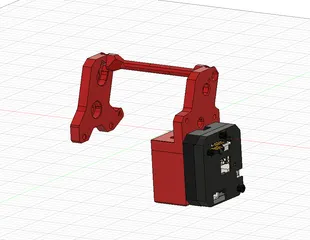

BTT runout sensor V2.0 mount for 90 deg HEPA filter housing

Brings sensor out to the 90 degree from the (Exhaust 90 - Printable Voron User Mods - Team FDM)
4
22
0
115
updated May 18, 2024

Description

PDF

Brings sensor out to the 90 degree from the (Exhaust 90 - Printable Voron User Mods - Team FDM)

I did use and edit the base of the voron Clips fo the mount.  I for to add that!

https://mods.vorondesign.com/details/9Rdnf5vD2oaJLmR7BpAuQ

note:  my ptfe tube goes from sensor through the 90 and straight to the toolhead.  I am using a 4mm OD tube

3 = 3x4x5mm heat sert

3 = M3x8mm socket head.

print with whatever you want.  needs supports.
