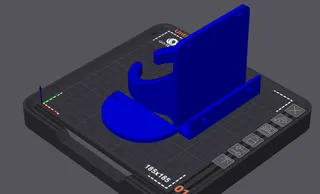

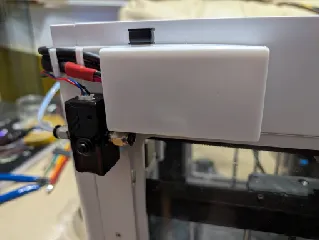

Qidi X-Smart 3 and X-Plus-3 Magnetic front cover

Replacement cover for X-Smart 3 and X-Plus 3 models. Standard, Volcano and Q1-Pro Hot ends.


Designed to use standard size ducts. Volcano front is 2mm lower and Q1-Pro is 3mm lower.

Designed for normal 5015 blowers. Qidi's funny one will be slightly out on the front opening.

Needs 12 x 6x3mm neodymium magnets.

You can use 6x2mm magnets on top and a 6x1mm washers wired into fan and toolhead to make the board fully removable without tools. Magnets make electrical connection.
