Compact Tool Holder for Small Metal Files with Fusion360 Design

I designed this compact file holder to organize and secure small metal files in your workshop. With its streamlined and minimalistic design, it ensures your files are always within reach without cluttering your workspace.

The holder is specifically tailored to fit small metal files, providing a neat and tidy arrangement that's easily accessible. Its mount is reinforced to be used with 4x30 or 4x40 wood screws with counter-sink heads, ensuring a sturdy installation on any workshop wall.

It features a diamond-shaped aperture that accommodates both round and flat files, ensuring a versatile and secure fit for various file types.

With the fully parametric Fusion360 design, you can adjust the tool holder to your desired dimensions.

Printing the Tool Holder

Find the print files and a PrusaSlicer project in the files section, complete with recommended settings for a successful print. For the best results in printing this file holder, follow the recommended settings:

Dimensions

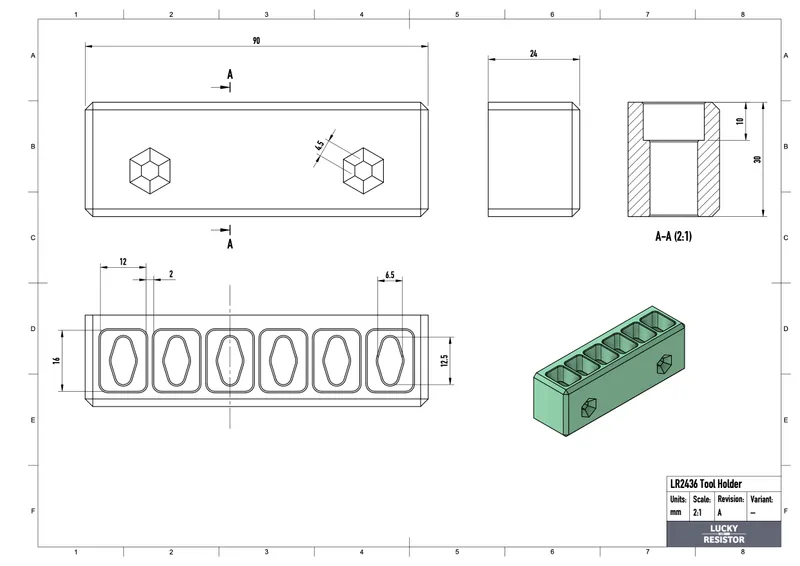

The dimensions in the drawing above are from model files and for the holder shown in the photo and renderings. Use the Fusion360 design to adjust them as you like.

Installation

The tool holder with the shown dimensions is mounted using 4x30 or 4x40 wood screws with a counter-sink head for a flush mount.
