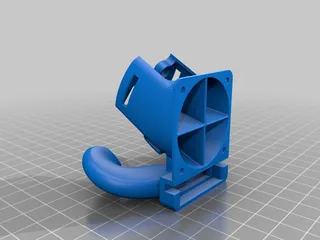

Micro Swiss NG Revo 5015 + ADXL345 mount
Slight modifications to suit my setup: ADXL345 mount, bigger screw hole for 5015
1
20
0
217
updated May 2, 2024
Description
PDFslight modifications just to make my life easier. I didn't have an m3 screw that was long enough to mount the fan, so I made a hole to fit an m4 screw. Also added a small mount to add an adxl345 above the hotend fan. Everything else is untouched. I put this shroud on my ender 3s running a revo ng.
Model origin
The author remixed this model.
Differences of the remix compared to the original
-added a mount for an adxl345 above the hotend fan
-made a hole to fit an M4 screw to mount the part fan (I didn't have a long enough M3 hole)
