Modular Winder Spool Frame 2 Base for 180mm Mini Printers

Simple split of the 220mm base from @STORM DESIGN's Modular Winder Frame 2 so that the project can be completed on mini printers with 180mm beds like the Prusa Mini, Bambu A1 Mini, Voron Micron, Rat Rig V-Minion, etc.

No glue required - when the project is assembled, the two pieces will be joined together by the other bolts.

Notes:

• The 220mm version of the base was chosen for compatibility with the Stand for Bambu Lab Filament Spool Switcher & Winder
• There is a 0.15mm clearance between the locking tabs and keyholes. You can test your printer using the included FIT_TEST_Modular_Base_220_Split.stl (It worked for me using PLA+).
• The other large piece in the project (Winder Spool Frame 2 - Arm Gear) already fits a 180mm bed. In the slicer, rotate it around the Z axis by 7.61 degrees so that the angled edge is parallel to one side of the bed (turn OFF skirt and brim to fit).

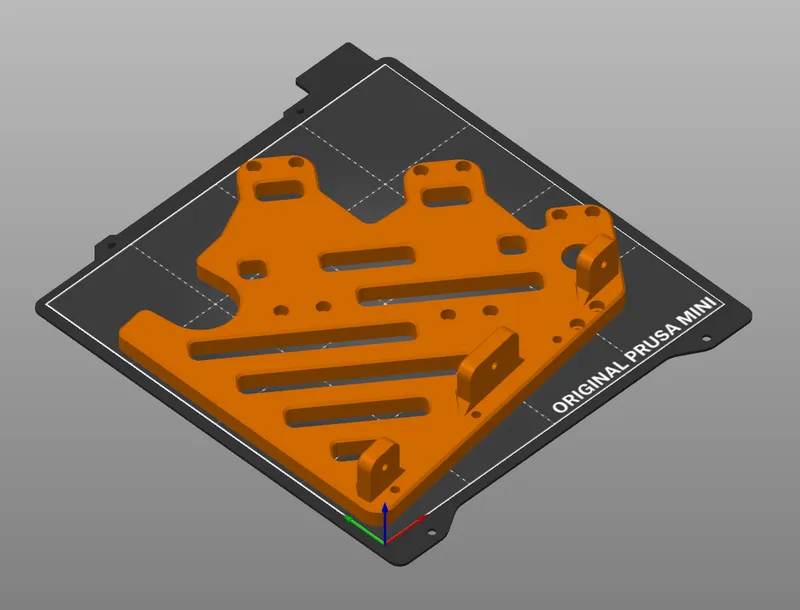

Split and locking tabs added to Winder Spool Frame 2 - Base 220mm.stl
