This is a remix, designed for use with my 1x2 latching case.

295

1142

updated July 18, 2025

Description

PDF

UPDATE 8/8/2024: There is an updated version of this watch holder available at the link below:

https://www.printables.com/model/967889-gridfinity-watch-stand-v30-for-larger-watches-thir

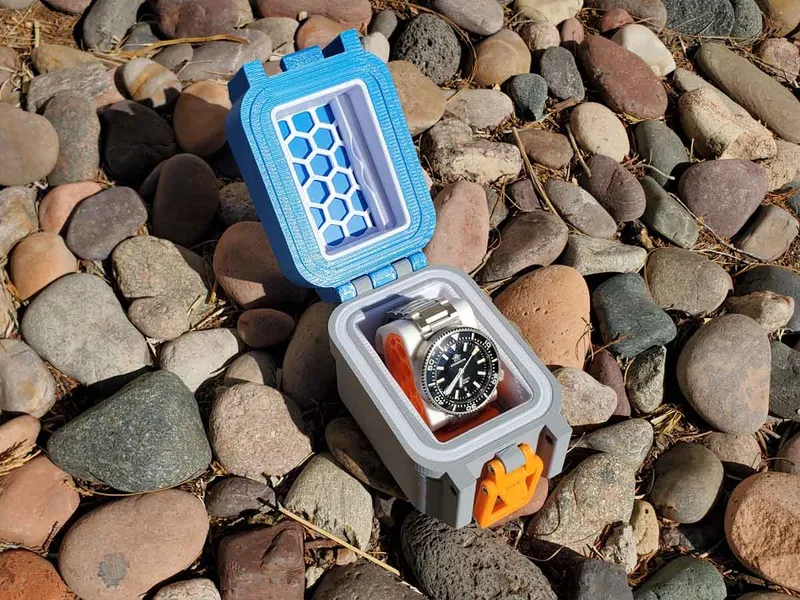

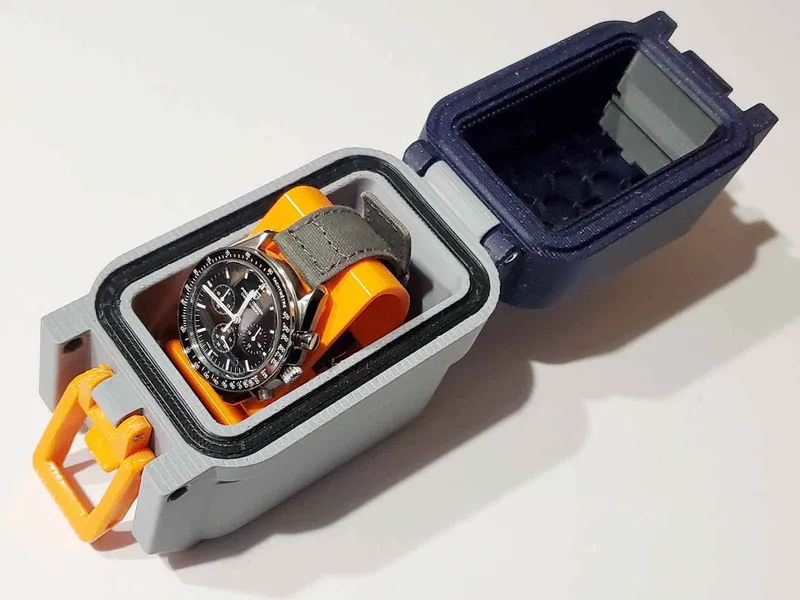

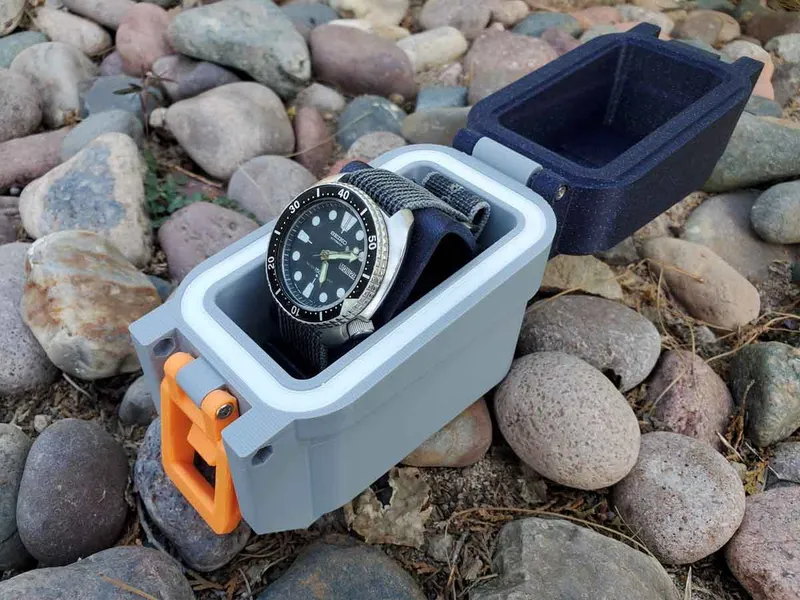

This is a remix of Luocheng Huang's Gridfinity Watch Stand, which I modified to fit a 1x2 Gridfinity Watch case I designed to hold one watch. I had to move the watch holder rearwards several mm to fit the watch and holder in my 1x2 case. A hex pattern was also added to the medium size watch holder.

There are 2 versions:

Gridfinity_Watch _V7H _Large.stl

Gridfinity_Watch _V7G _Medium.stl

The medium is the same size as the original Gridfinity Watch Stand which this was remixed from. The large version was scaled up about 125%, since my watch bands did not fit the medium size holder.

A 3MF profile is included with both versions on one plate (remove the one you don't need to print). The profile is set up with the following settings:

PLA for all parts
0.4mm X1 Carbon profile
2 Walls
Arachne wall generator
inner/outer/inner for the wall ordering
15% 3D Honeycomb infill
Tree Supports (required)
Textured PEI build plate

AMS is not required, but here is how it is set up in the profile:
1 = PETG- Orange
2 = PLA - White
3 = PLA - Dark Blue
4 = PLA - Gray
5 = TPU - Black (this is the non-AMS spool on the back)

I printed this using PolyMaker Galaxy Blue Polylite PLA.

If you are interested in a watch case to use these with, you can find a few designs linked below for a 3x and 1x watch case:

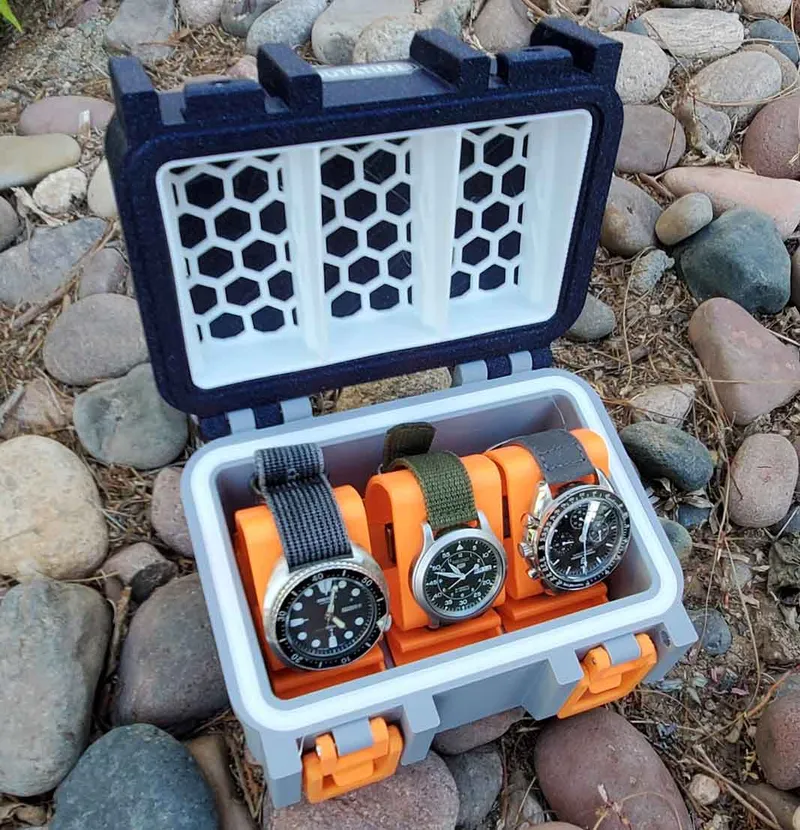

3x2 (3 Watch Case):

https://www.printables.com/model/885622-gridfinity-3x2-watch-case-12u

1x2 (1 Watch Case):

https://www.printables.com/model/885705-gridfinity-1x2-watch-case-version-20-12u

If you find these models useful, please post a like or a comment with some pics of your prints.

You can find the other things I'm working on at my blog here. You can also follow me on Printables or on MakerWorld, to find out about the new stuff I post. If you would like to support my work, you can Buy Me A Coffee using this link:

https://www.buymeacoffee.com/mystoopidstuff

Thanks for looking!

Thanks and Acknowledgements:

The models here could not have been made without the work of Zach Freedman, who introduced the world to Gridfinity, and then set it free for everyone to use. These models are not based on direct remixing of Zach' original models, but they are fully compatible, and use the same, or a similar specification for the bin bases, bin lips and base grids, which Zach Freedman developed. Zach Freedman's work is available on Thangs, and you can find examples of his Gridfinity designs here and here, which are available under his MIT license. If you like this model, or want to learn more about Gridfinity, you can check out Zach Freedman's YouTube, or you can support Zach Freedman's work on Patreon (patreon.com/zackfreedman).

Model origin

The author remixed this model.

Gridfinity Watch Stand

by Luocheng Huang

Differences of the remix compared to the original

Update 7/18/2025: You can find the latest version of this design, which includes a desiccant holder at the link below:

https://makerworld.com/en/models/1613938-gridfinity-watch-stand-with-desiccant-holder#profileId-1702837

The holder was moved back a bit, to allow using it with a 1x2 Gridfinity latching case.

There are 2 versions:

Gridfinity_Watch _V7H _Large.stl

Gridfinity_Watch _V7G _Medium.stl

The medium is the same size as the original Gridfinity Watch Stand which this was remixed from. The large versions are scaled up about 125%, since my watch bands did not fit the medium size holder.
