Infill basket | Customizable in slicer

Description

This model is designed to be fully customized by you, makers. Every printed piece will be different due to various settings of the infill and its density. The Basket has to be modified in PrusaSlicer by the modifiers to be printed nice. The basket itself is stackable and suitable for storing smaller items. It can also be printed at a larger scale to make it bigger. However there is also the model that is on the picture.

How to customize

Don't worry it's not any hard. Every wall of the basket and its file (STL) has its own modifier file (STL). Which means you can basically open the file and then you have to add its modifier. Both the model and modifier are all lined up so don't move it.

If informations below won't help here is the link on the video from Prusa 3D, where they are explaining it little more.: "Modeling" with PrusaSlicer? Modifier meshes tutorial (youtube.com)

Also if you like this model you can consider supporting me by buying me a coffee at.: https://www.buymeacoffee.com/filip_z

And if you like the model you can give it like and comment.

Example

1. You add model ("wall_b") into slicer

Don't move the model all is lined up, so if you will move it you will lost its perfect position.

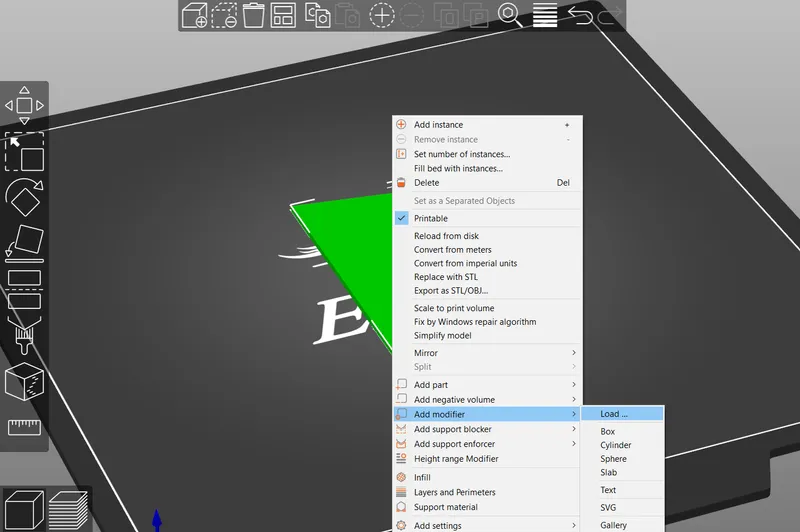

2. Right click on the model

3. Add modifier

4. Load the model of the modifier ("mod_wall_b")

5. Now when you see your modifier in the model. Right click on the modifier model and layers and perimeters.

6. Set bottom and top solid layer on “0” so there is no material.

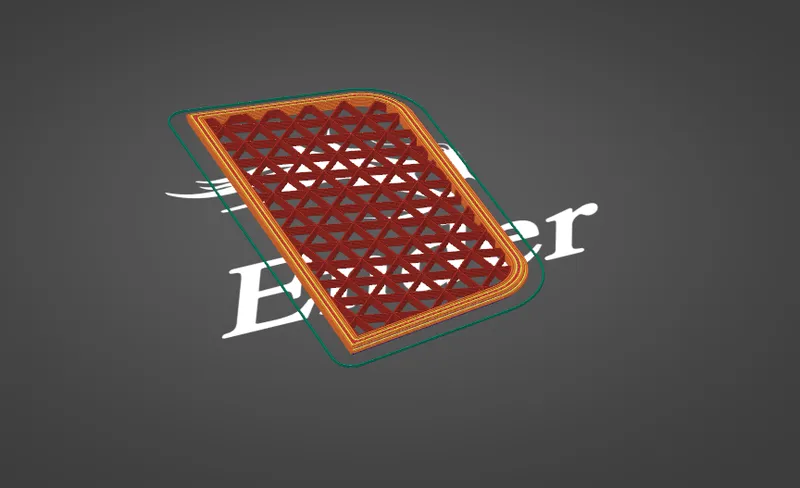

7. At last you can set diferent type of infill in clasic settings

You can also set diferent angle of the infill and its density to make it stronger.

Assembly

The assembling process is really easy. You have put the walls in the slot printed on the basket and glue it together.

I recommend printing the wall in a different color than the main body so it looks nicer. Also, you can create a patterned bottom for the basket, but it may cause the bottom to break if you put something heavier in it.

If you like the model, please consider leaving a like and comment. Your feedback is greatly appreciated.
