Ethernet RJ45 repair with snap lock
Repair clip for ethernet RJ45 plugs with broken snap lock. Prints without added supports in both PLA and PETG.
26
301
3
888
mis à jour 20 juin 2024
Description
PDFAn ethernet RJ45 repair clip with a working snap lock that locks the plug in the socket.
Prints without supports added from the slicer thus it prints quicker and and uses less material.

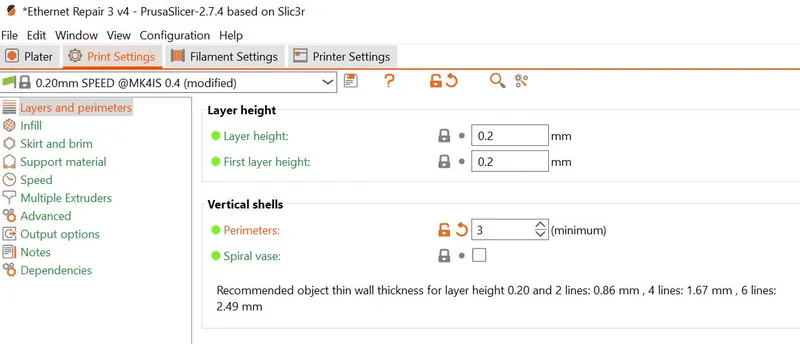

NOTE: Needs to be printed with 3 perimeters (3 walls) and with 0.2 mm layer height.

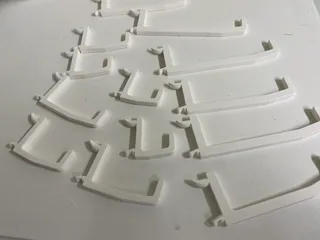

The model contains support pillars that needs to be snipped away.
Tags
Origine du modèle
L'auteur a remixé ce modèle.
Différences du remix par rapport à l'original
Inspired by this model… and also this model.
https://www.printables.com/model/839104-ethernet-rj45-repair-fix-with-no-supports
This model is entirely redrawn in fusion 360, just using the originals as inspiration.
Difference from the original models:
- Added snap lock, that locks the plug in the socket.
- Prints without supports, (just as the second model it is influenced by).
- Slimmer to work in sockets placed close to each other
