Belt tensioner pulley for Whirlpool Cabrio dryer

Got tired of the factory part constantly failing with the sleeve.

This replaces the pulley with a new one that can use a pair of standard Ball Bearings:

1/2"x1-1/8"x5/16" Ball Bearings (R8 2RS)- https://a.co/d/gY7GJW7

This fits the factory pulley shaft with a little cleanup. I cleaned it up with a little 120 grit sandpaper until the bearings fit snug.

I designed this so it can be printed without any supports.

I recommend printing with 80%+ infill with PETG.

I recommend packing extra grease in the space between the 2 bearings as you assemble it. I used white lithium grease which seems to work fine.

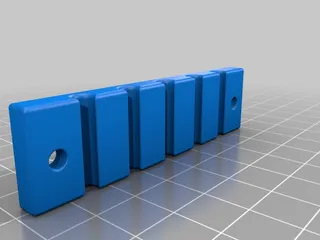

I include an stl file for a replacement retention clip, this fits tight and has the be pressed on flat.

I also include the 3d file so you can modify as needed.

Print Settings

Printer Brand:

Creality

Printer:

K1

Rafts:

No

Supports:

No

Resolution:

.2

Infill:

80%

Filament: NA PETG NA
