Bambu P1S X1C Poop Chute with Gridfinity Base and "Loo"

I saw this Thangs model and wondered the same thing as the others in the comments - how can I dump the poo? So I extended the idea with a removable Gridfinity “loo” for the poop to fall into. Between prints, just detach the “loo” from the chute base and toss out all the poo!

This is compatible with KyleWarren's Screw Together Baseplate, so expand your Bambu's Gridfinity storage as needed.

Components

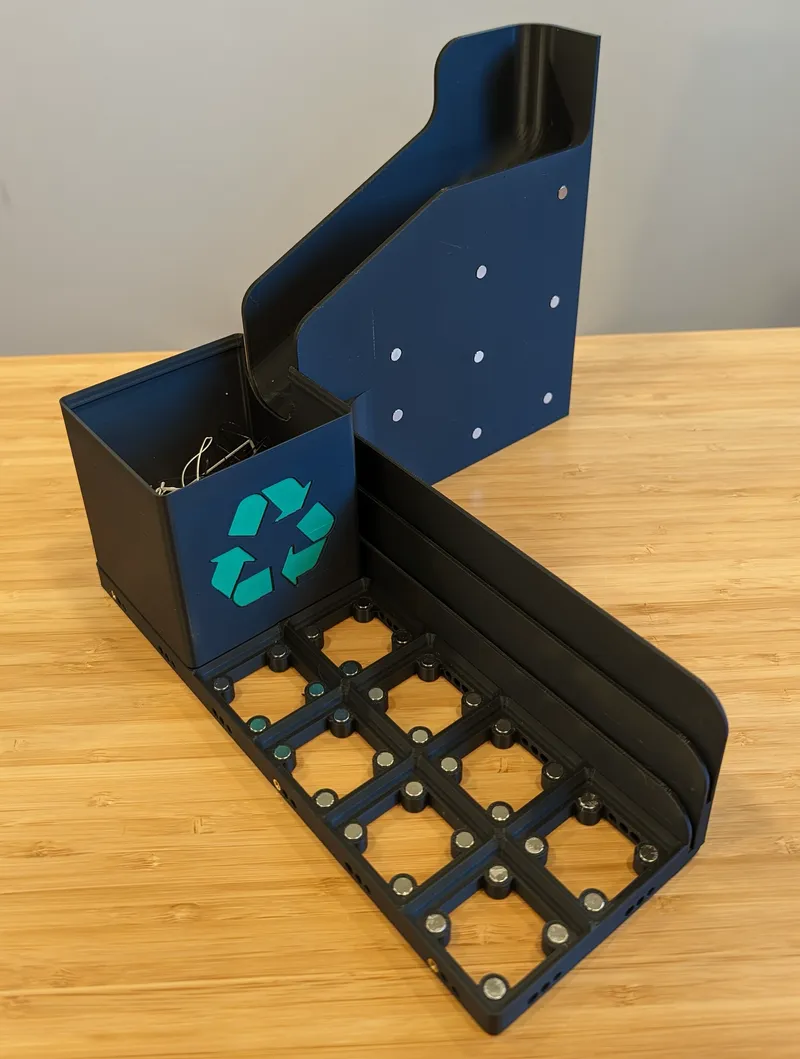

The Chute Base

The main part of this build is a very large print that takes up the majority of the build plate.

Notes

• The included Solidworks model is based on KyleWarren's Screw Together Baseplate.
  • You should be able to adjust the size of the built-in baseplate by using the “Equations” dialogue in Solidworks.
  • You can print these to expand your Gridfinity Loo Base to whatever size you need.
• The magnet holes are modeled at 6.15mm, which creates a perfect press fit on my P1S with this Elegoo PLA on the settings in the Makerworld/Bambu profile. You may want to adjust the size - I believe the standard is 2.5mm for a glue-up fit.

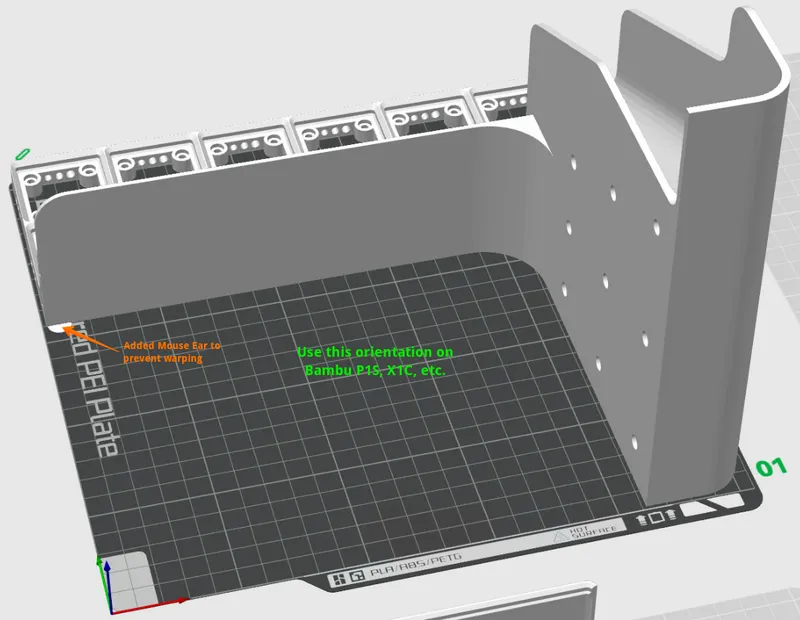

• If using the the Makerworld/Bambu profile, you must orient it correctly on the bed to print it. I did experience a bit of warping in one corner and added a mouse ear to prevent that.

Other Materials

• 0x - 49x standard Gridfinity 6x2mm magnets
  • 0x-9x magnets can go in the “chute” part. These secure the whole base to your printer and align it to its “purge portal.” Add magnets to meet your needs! I only used 4.
  • 0x or 40x magnets can be assembled to the Gridfinity baseplate to secure all your bins (including your “Loo” bin!) Hint, check out Jigfinity!!
• If you print additional Screw Together Baseplates to expand this, you'll need the following:
  • 4-40 or M3 screws (Kyle designed it for 4-40s, but I used the 12mm M3 ones from this kit)
  • 4-40 or M3 heated inserts to match what you chose above (Kyle designed it for 4-40s, but I use the M3 ones from this kit)
  • Kyle also recommends 1/8" locating pins, but I didn't bother with those

The “Loo” Bin

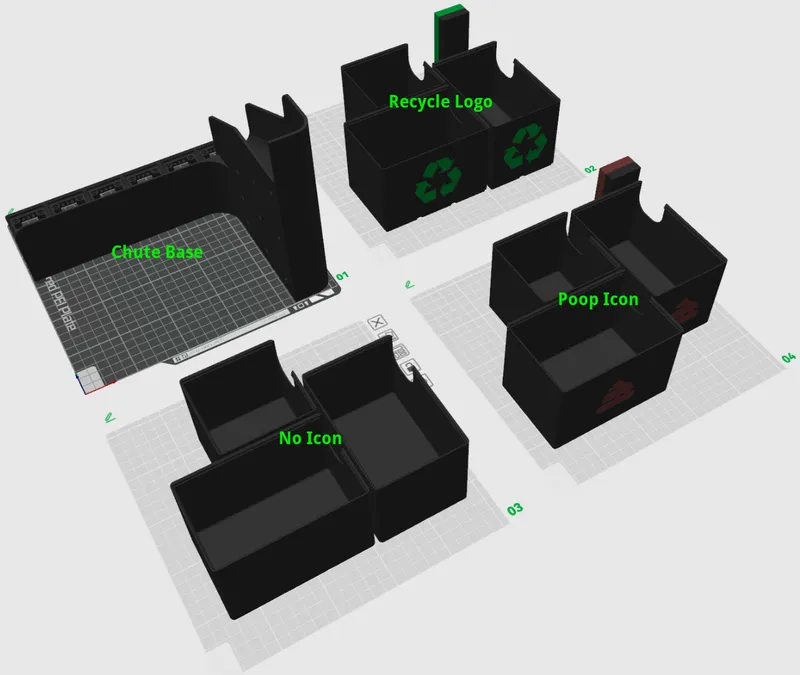

The FUN part of this print is the Loo bin! I have included all kinds of options:

• With and without the icon of your choice: No icon, with Recycling icon, or with Poop icon
• Three sizes, depending on how much your printer poops and how you want to configure: 2x2, 2x3, or 3x2

Notes

• The included Solidworks model is based on EllieWhoMakes's parametric Gridfinity bin model.
  • You should be able to adjust the size of the bin by using the “Equations” dialogue in Solidworks.
  • I was lazy and did not fully define the sketches for the icons, so you may need to adjust them if you make a custom-sized Loo bin.
• The magnet holes are modeled at 6.15mm, which creates a perfect press fit on my P1S with this Elegoo PLA and Bambu Green PLA Basic on the settings in the Makerworld/Bambu profile. You may want to adjust the size - I believe the standard is 2.5mm for a glue-up fit.
• If using the Makerworld/Bambu profile, all of the bins are included on the buildplate. Remove any bins but the one(s) you want before printing! The bins with logos are ready for multi-color printing with the AMS, but you can change the material (on the left) to disable it.

Other Materials

• 0x - 24x standard Gridfinity 6x2mm magnets
  • Assemble magnets to the Gridfinity Loo Bin to secure it to your baseplate. Hint, check out Jigfinity!!

Happy printing!

If you like my model, consider supporting! https://www.buymeacoffee.com/robosquiggles
