Ender-3 V3 Z-Axis Nebula Camera Mount

Note: This will not fit the Plus model as its frame is differently sized. See my Ender-3 V3 Plus Collection.

The provided model for a Nebula Camera Mount for the Ender 3 V3 is all very well, but if your model has any real height to it, all you can see is the side, and not what's going on at the top (which is kinda important!)

This design instead fits to the Z-Axis, so you can see what the print head is doing at all times. It fits where the Filament Runout sensor goes, either on top of it or instead of it if you have removed or re-sited it.

You will need to use new M3 bolts in either case - 2 x M3X25 or 2 x M3x8. Just remove the existing bolts, put the bracket in place, and screw the new bolts in.

This example was printed in PLA+ with 3/3/3 walls/top/bottom and 15% 3D HoneyComb infill. Designed in OnShape CAD and printed with Orca Slicer.

Please post any makes and comments you may have here!

EdinBearDragon

E3V3 Collection

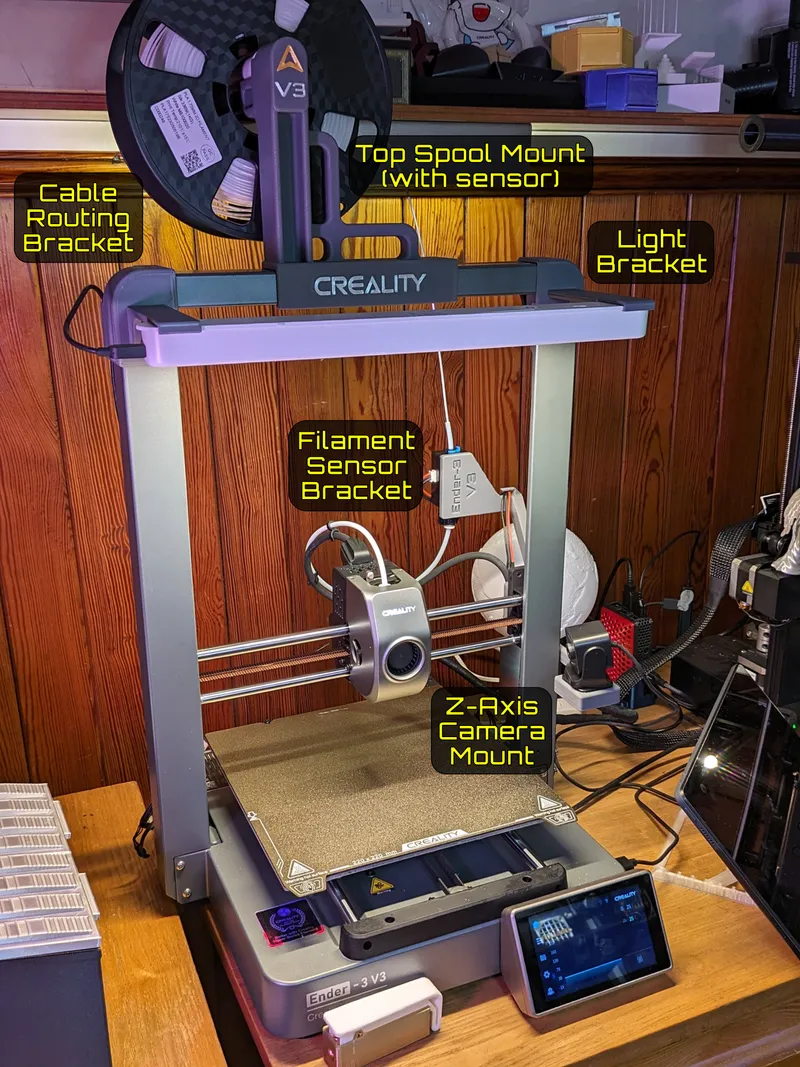

This is part of a collection of Ender-3 V3 Mods, designed to fit with the aesthetic of the printer.
