WAGO 221-Series Assortment Box

The box is designed for 2- and 3-conductor connectors (30x WAGO 221-413 and 10x WAGO 221-412). If you also want to carry the 5-conductor connector, you can include 2 or 4 of them per row.

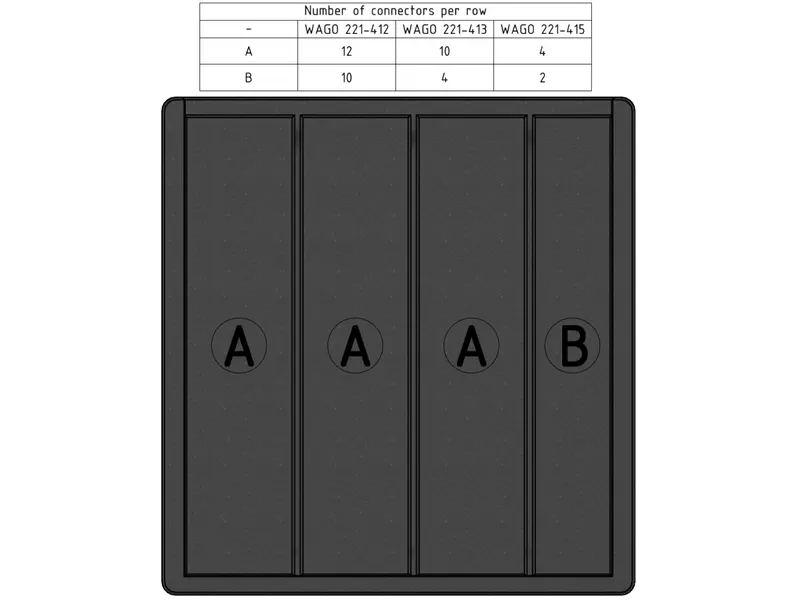

Number of connectors per row depending on type:

There are two recesses in the lid for gluing on the labels of the original packaging. The lid locks in the closed position to prevent accidental opening.

Dimensions: height: 90mm; width: 85,5mm; depth: 24mm
The box is the size of a small wallet. So it's ideal for carrying in your pocket.

Print settings: Prusament GalaxyBlack PLA with 3 perimeters and 0,15mm layer height. For a smooth motion of the lid, the support surface of the box be “ironed”.

Disclaimer: To not infringe upon any third-party rights (personal rights and/or industrial property rights) the lid is only available without the “WAGO”-logo. If you want to include a logo (or any other text) use the “SVG-emboss-feature” directly in PrusaSlicer. If you need help, the following article describes the process. (SVG embossing tool | Prusa Knowledge Base (prusa3d.com)). This is not an official product and is not in any connection to WAGO GmbH & Co. KG.
