Hammershot minimal rear loading guide

Look at the internal cuts prior to making the external ones - especially be mindful about preserving certain segments of the top and bottom of the internal shell.

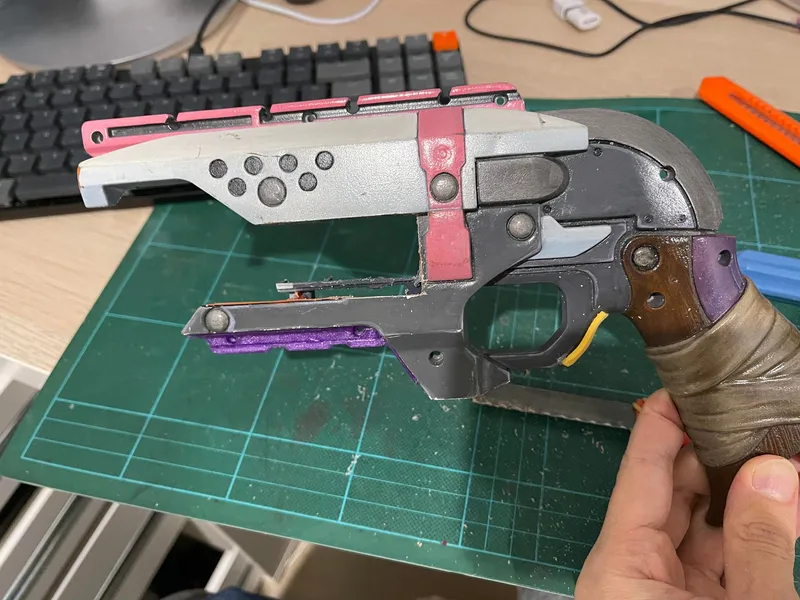

External cuts overview:

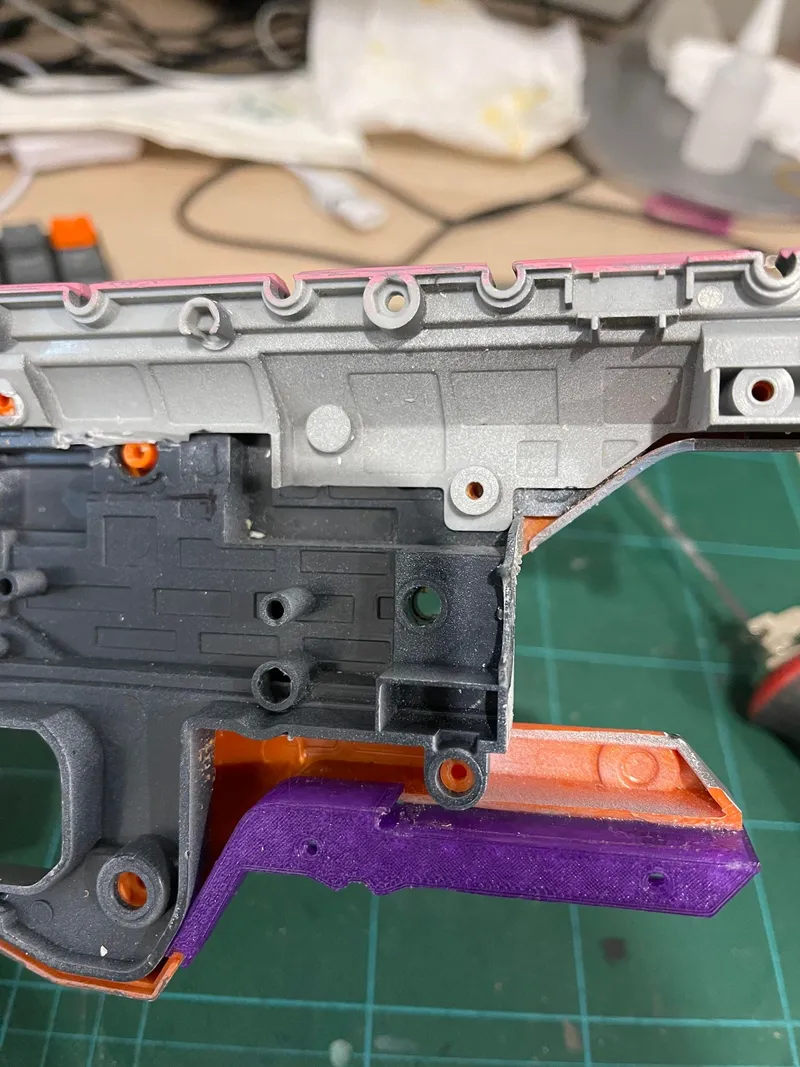

Internals prior to cutting:

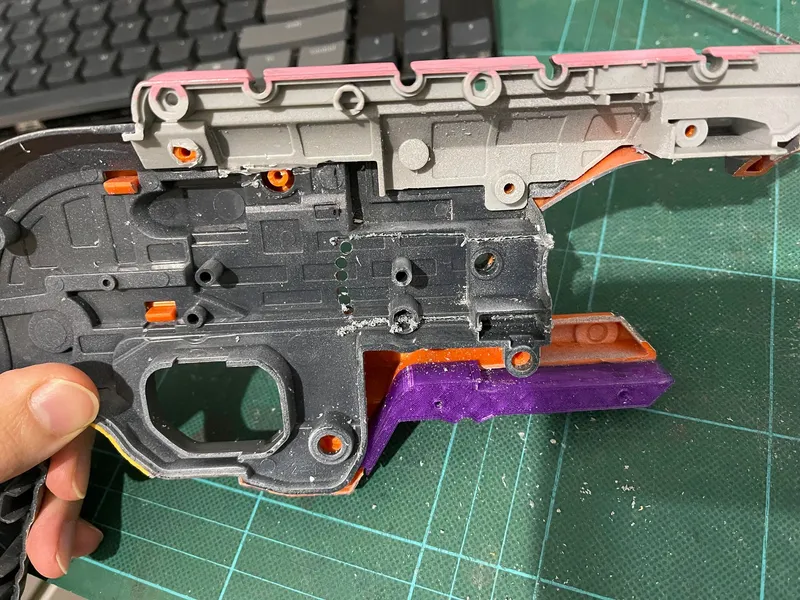

Making the initial internal cuts:

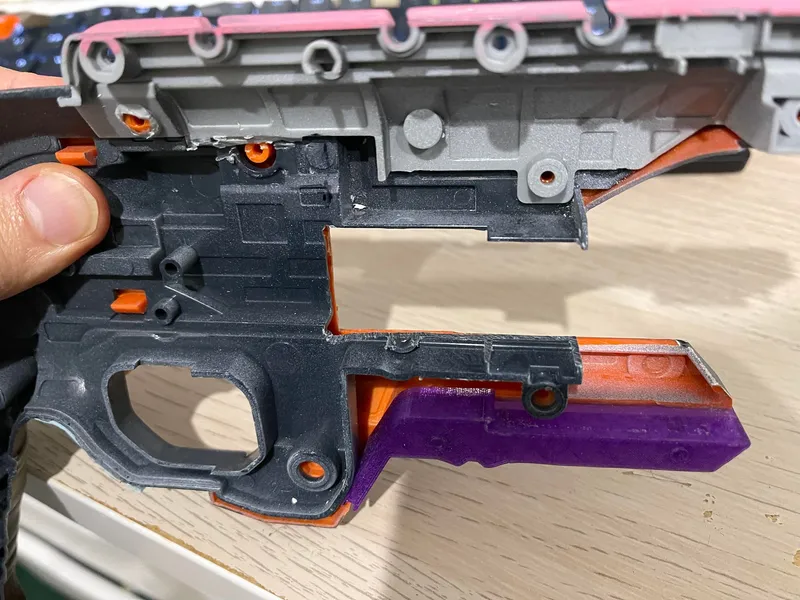

After internal cuts:

Installation after completing cutouts:

https://www.reddit.com/r/Nerf/comments/1cb7vos/printed_hammershot_rearload_guide_installation/

While technically a remix, nearly every face has been altered.

• Wider bore for a wider range of cylinders (6/7/8 should work)
• Protrudes further down, aimed at more a more aggressive/less nuanced cutout, replacing the cylinder pivot hold
• Sticks out less, thus requiring a less recessed groove
• Top and bottom sit against internal wall of the shell, which does not sit at a right angle to the outer shell
• Plate seats slightly differently on the outer shell, largely cosmetic
