Ford Focus MK4 | Quadlock adapter for Aliexpress phone mount (2 versions)

Ford Focus MK4 Quadlock adhesive mount adapter for Aliexpress phone mount

Quadlock dashboard/console mount doesnt stick on the dashboard material and couldnt find a good location. So i combined it with this dashmount from Aliexpress https://nl.aliexpress.com/item/1005004469378624.html?spm=a2g0o.order_list.order_list_main.5.304d79d2Q2sElq&gatewayAdapt=glo2nld This one came with a small ball mount which can not be combined with the quadlock part. So i needed to find a way to use the complete Quadlock mount with this bracket.

• From the Aliexpress mount i have removed the 2 carbon knobs which hide 2 small car parfum modules.
• I have printed and installed the adapter plate.
• From the back i have secured it with 2 small screws and washers. (first try i have printed thread and nuts which was not working well)
• After adapterplate is installed, stick the Quadlock mount on it and install in your car.

24-05-2024

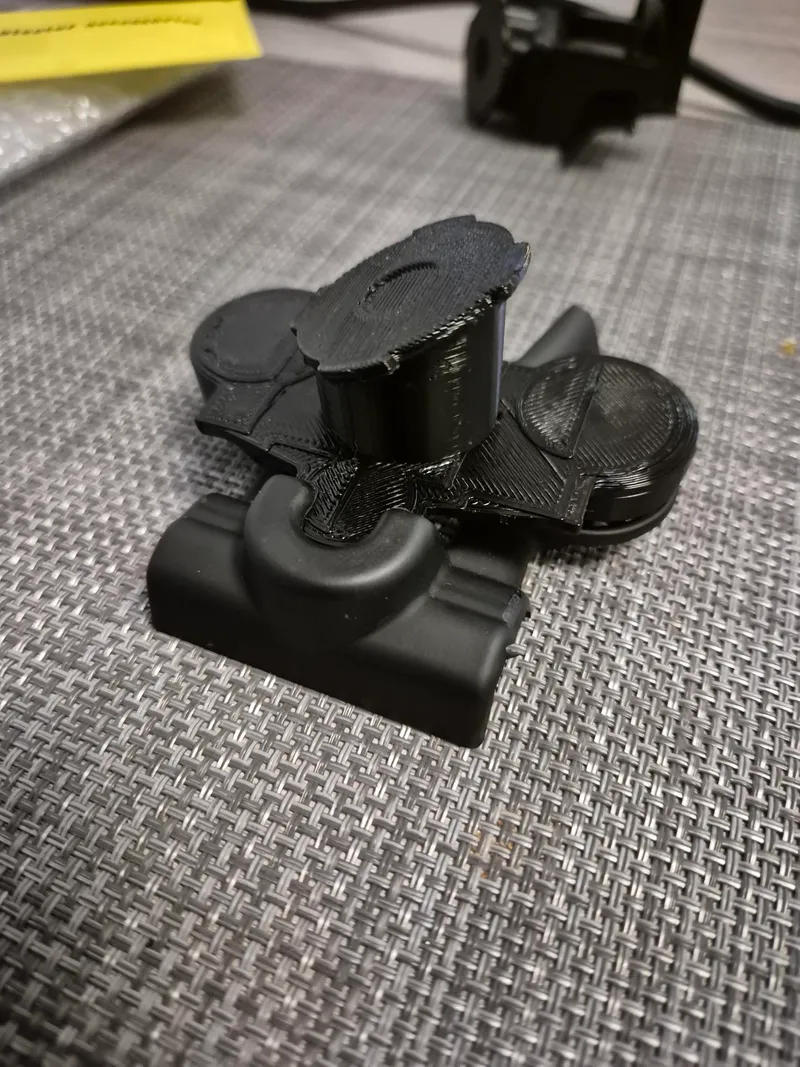

Made a second version which have a fixed tilted Quadlock mount onto the adapter so there is no need to buy original adhesive Quadlock mount.
