Coyote cannon torch 30mm scope mount

Needed to mount this beast of a torch to my scope without having a big cantilevered stress on it so this is what I came
0
10
0
117
updated April 19, 2024

Description

PDF

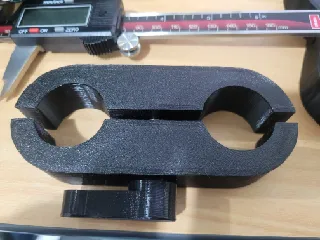

Needed to mount this beast of a torch to my scope without having a big cantilevered stress on it so this is what I came up with, mounts very firmly and doesn't slide around at all even when you bump the rifle, and it should be perfectly in line with the scope.

Requires a M6x60mm and M6x70mm bolt and nuts (or just two 70mm but the bolt will stick out a bit on the rear mount), insert a pause print on the layer for each mount where it closes up the slot for the nut and then insert the nut firmly, you may need to give in a little tap with something hard to get it seated flush.

Printed with 6 perimeters, 7 top and 6 bottom layers at 0.3mm layer height for optimal strength.
