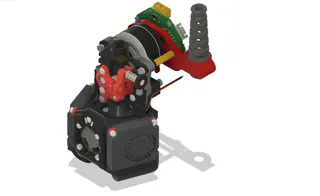

Filament Stress Sensor body with threads for pc4-m10 bowden fitting

Remix of @jmillerfo_84104's excellent filament stress sensor with threads to accommodate a pc4-m10 bowden fitting.
1
20
0
312
updated April 19, 2024

Description

PDF

Refer to @jmillerfo_84104's on his original design page for assembly instructions, found here:

https://www.printables.com/model/803180-voron-ercf-filament-stress-sensor

Substitute a pc4-m10 fitting for the original ECAS04 fitting.

I also recommend cutting the bowden tube that is inserted into the shuttle at about a 60 degree angle, to prevent jamming.


Tags



Model origin

The author remixed this model.

Differences of the remix compared to the original

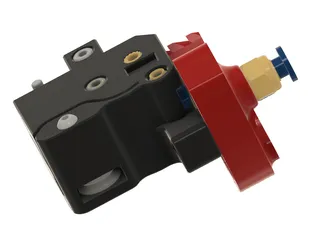

Added BSP 1/8" threads to accept a pc4-m10 pneumatic fitting to prevent the bowden tube from coming loose. The original design accepts an ECAS04 fitting, but due to varying printer tolerances, this may come loose in some conditions.
