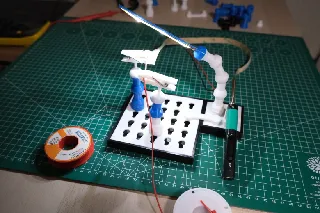

Soldering accessories for the KeyBase system

Do you want soldering accessories for your KeyBase system ?

Here you will find a few accessories I designed at the same time as I designed KeyBase.

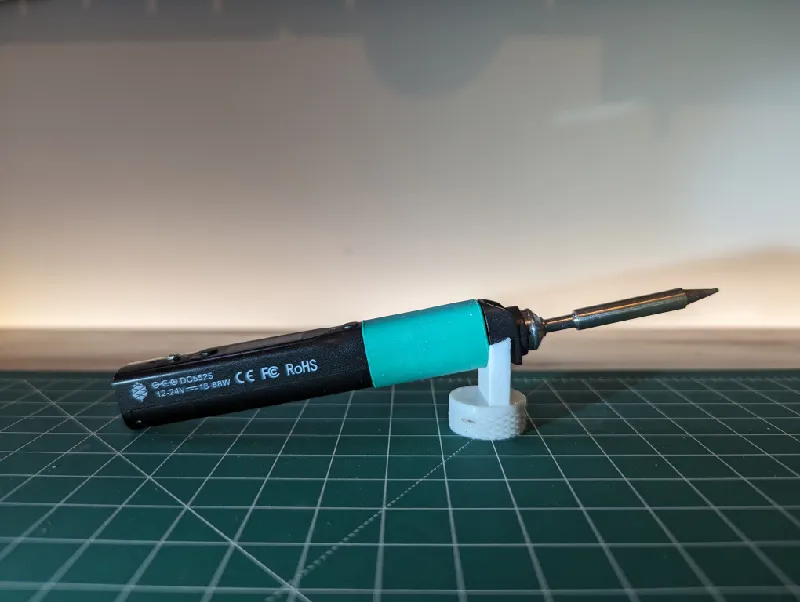

Pinecil holder

I know there are thousands and thousands of soldering irons on the market, but I only have a Pinecil, so I designed a simple holder for it ( should work with the TS80/TS100/TS101 ). If I can get my hands on other soldering irons, I will design mounts for them and add them here.

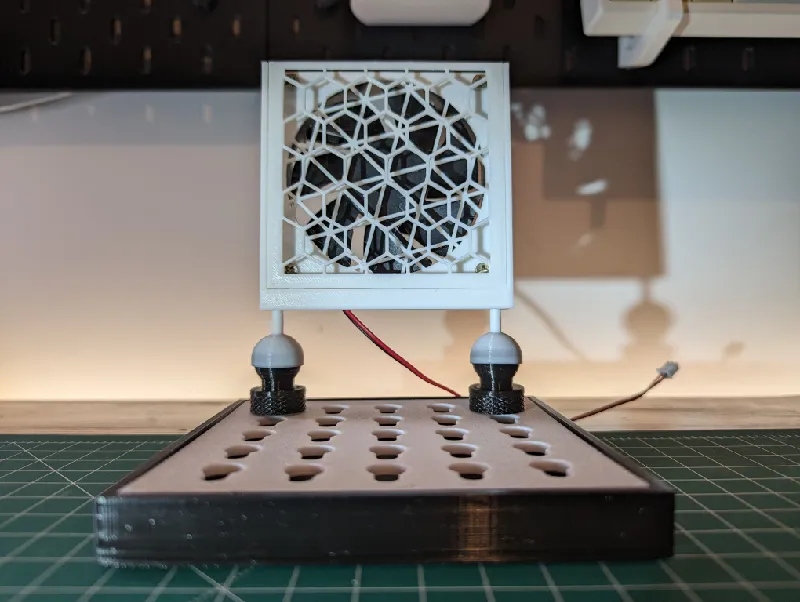

Fume extractor fan holder

This is a simple fan holder onto which you can screw a 80x80mm fan. It also has a grille that you can attach to the front of the shroud. There is a 5mm gap between the 2 parts, allowing you to install a filter. The shroud and grille rely on slots and tabs to secure the two parts.

To attach it to your KeyBase, you will need the part “attachment sphere + pole” that is in the main repo, I have also included it on this post for your convenience.

Main repo for KeyBase : https://www.printables.com/model/845803

My collection of accessories for the KeyBase system ( both made by me and the community ) : https://www.printables.com/@Zero_Makes/collections/1395402

Print parameters are the same across all KeyBase parts, .4mm nozzle, .2mm layer height, 3 walls, 3 top & bottom, minimum 20% infill, no supports. The parts are correctly oriented for printing

If you want to support me and help me develop the KeyBase system, you can buy me a coffee over here => https://ko-fi.com/zeromakes or when I will be able, directly on Printables.


Note : This project is under the licence CC BY-NC 4.0, meaning NO commercial use. If you wish to sell my design, please reach out to me directly on Printables or on any of my socials.
