This is beefy stand for handlebar with weights.
1
15
0
184
updated August 11, 2024

Description

PDF

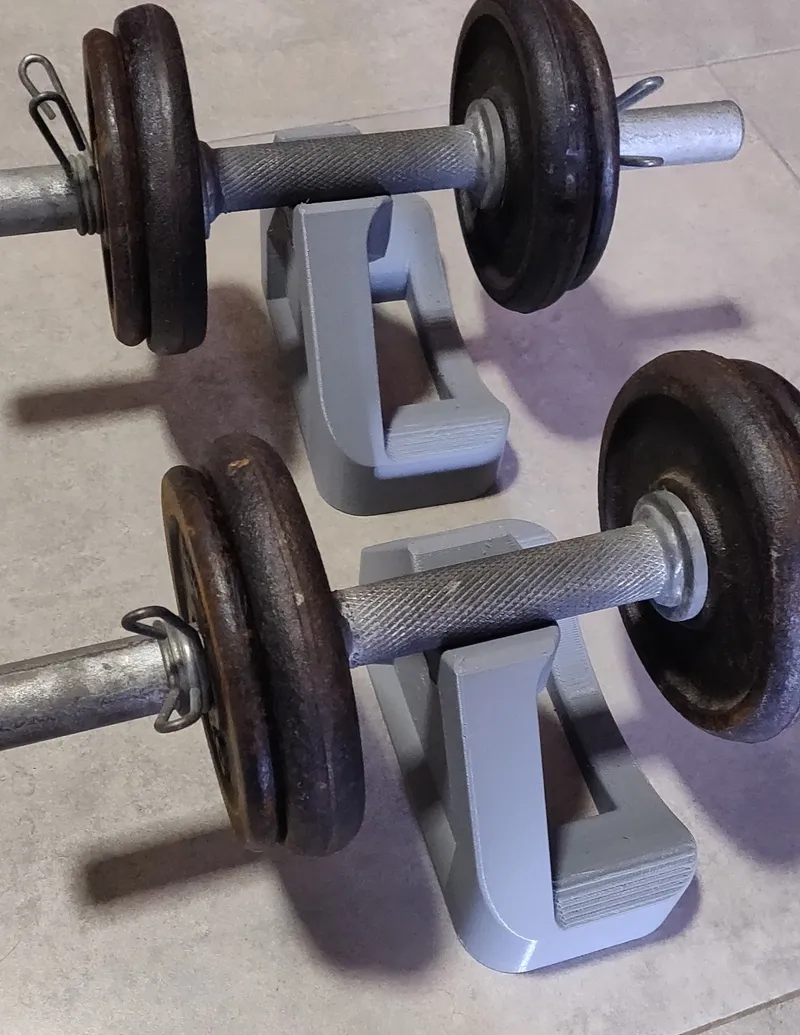

This is simple, support free, quite beefy handlebar stand for max 240mm diameter plates.
Its size seems necessary for being able to handle weights ;)

One can support small handlebar, but two should support longer bar (1m or longer).



Designed for handlebar of around 30mm shaft diameter and weight diameter of max 240mm.

I have printed it with PLA and it took 300g of plastic, so bear that in mind.

Outer dimensions of model itself are 100x200x140mm (DxLxH).

Initially i wanted to print two of those slightly less longer, but this one suffice for one, although grip is not ideal, it works great.
I do believe that it could also support longer handlebars if you add two of those on each end of grip.
