VORON 2.4 Top Corner Cable Hide and 45° LED Mount

I wanted to hide the cables completely, so I moved the mounting points from the original design.

You'll need four of these. Just print it two times like it is, then mirror it once in the x and once in the y axis or use the 3mf file called x4.

Please use Voron print settings (4 walls, 4 or 5 top and bottom layers).

You can print it without supports.

Activate thin walls for the built in support.

45° LED corner mount

The lenght depends on your Voron buildsize

https://www.amazon.de/SET-Streifen-aluminium-Abdeckung-Milchig/dp/B0949C5P8P?th=1

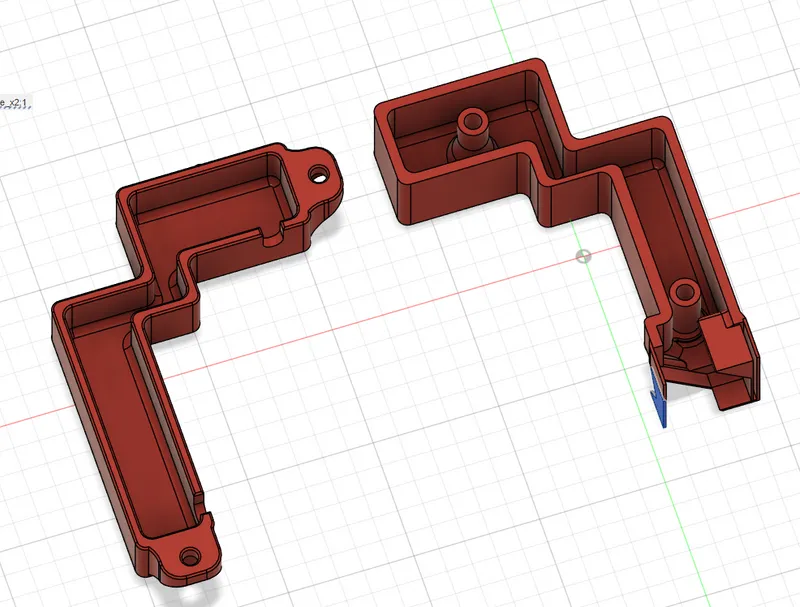

On the left side you can see the the original design.
