Fairchild Republic A-10 Thunderbolt II
Description
Limited offer: 20% Off ($60 full price at 3DLabPrint.com)
LW Planes Series – Wingspan 1.56m / 61.4in, scale 1:11
Fully 3D printable RC model of a living legend, designed in 100% clean vase mode.
Fully 3D printable RC model of a living legend, designed in 100% clean vase mode, esential for printing with PolyLight 1.0 LW-PLA active foaming filament (some parts PolyAir and FlexiLight LW), that allow printed planes to be lighter than any A-10 on the market (wingspan 1.56m). Scale details such as functional decelerons, airframe plating and many more.
No additional parts needed
For the airframe you don't have to buy and search for additional elements such as carbon rods, nuts / bolts, hinges... You just need filament, CA glue and bunch of standard self-tapping screws.
Filament reinforcement system (press in and glue)
Despite the fact that the airframe itself is very rigid (LW) we use this pressing and gluing technique in the stressed parts. You can use any filament you have left at home (we recomend PolyAir strong PLA).
Easy to assembly
Despite being a very complex aircraft we tried to make it as easy as possible for you. Detailed step by step PDF/VIDEO is included.
Easy to take off and land
Designing with low speed stability in mind.
Durable Landing Gear
With LG socket parts system we increase durability and option to use different retractable chassis systems.
Included
- Prepared basic Gcodes for your 3D printer

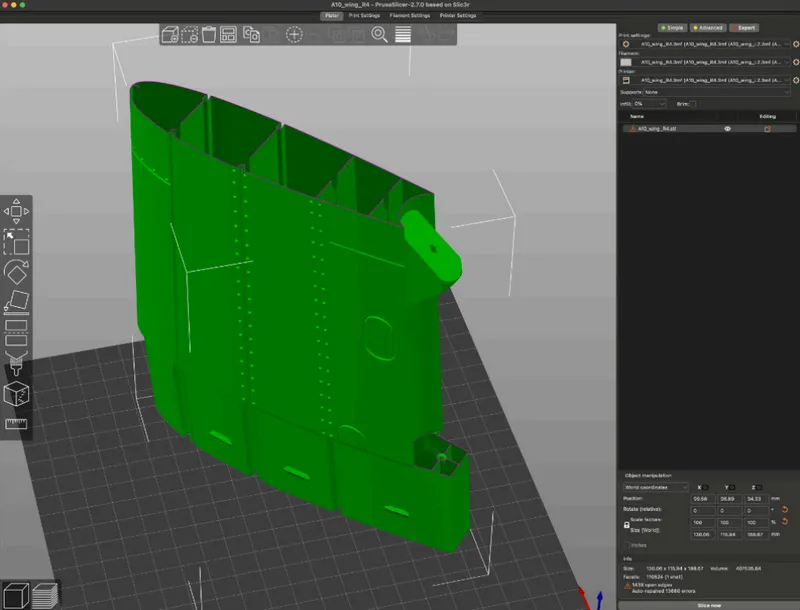

- PrusaSlicer files (3mf/stl)
- Bambu Studio files (3mf)
- Scale markings PDF

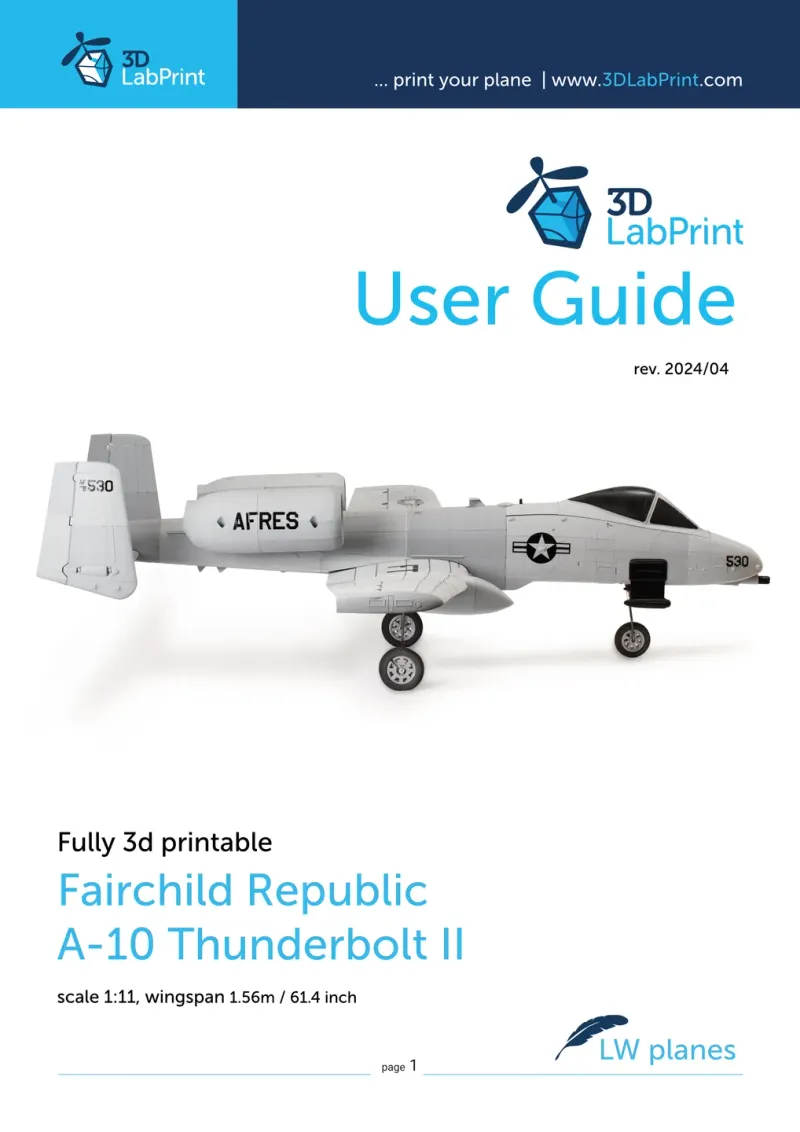

- User Guide including Shopping list
General specifications
| Wingspan | 1560 mm / 61.4 inch |
| Lenght | 1450 mm / 57.1 inch |
| Height | 410 mm / 16.2 inch |
| Wing area | 38,2 dm2 / 4.09 square feet |
| Wing loading | 91.6 g/dm2 |
| Center of gravity | 85 mm / 3.3 inch from leading edge |
| Print weight (airframe) | 1494 g / 52.7 oz (incl. discs, tyres exl. glue, screws) |
| Empty weight (w/o battery) | 2750 g / 97.0 oz |
| Takeoff weight (6s 5500 lipo) | 3500 g / 123.46 oz |
| Design maneuvering speed, VA | 80 km/h / 50 mph |
Tags
Model origin
The author marked this model as their own original creation.
