JK Wrangler Dash Cubby 2 Switch Bezel (for e-locker switches)

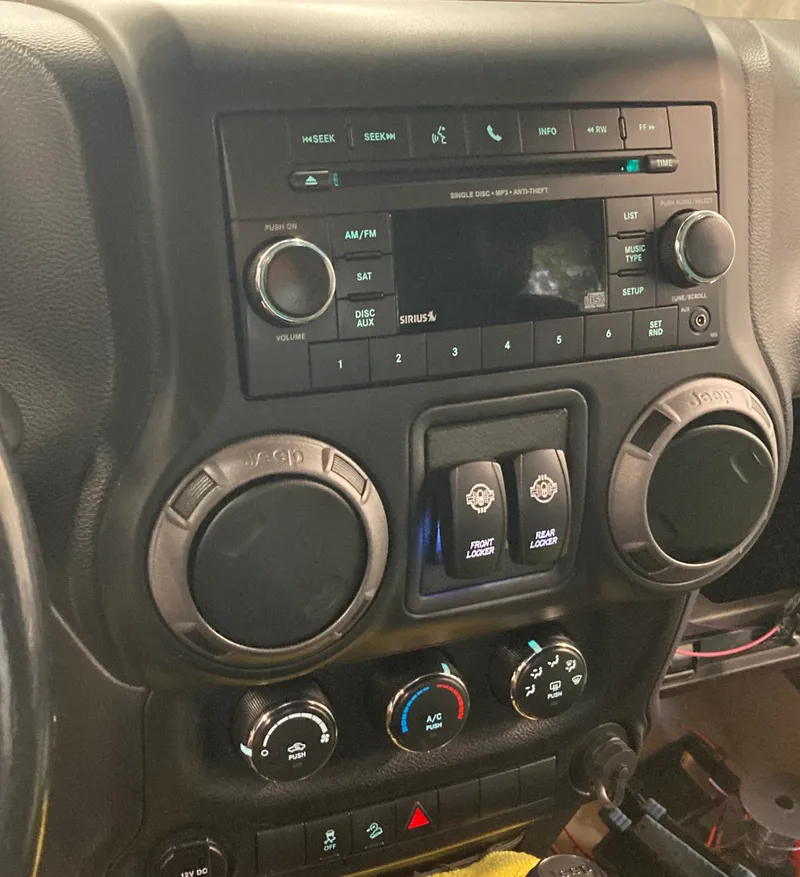

Created a factory looking switch panel for 2 e-locker switches located in dash cubby (manual window models only)
6
30
0
296
updated April 9, 2024

Description

PDF

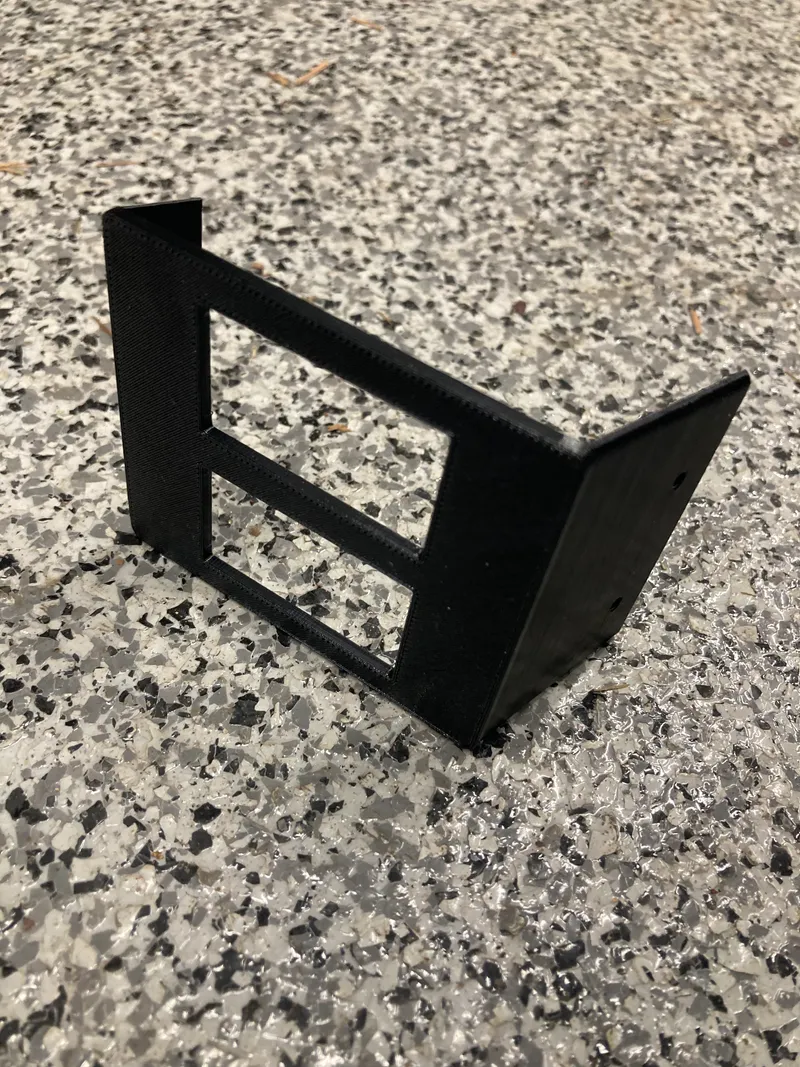

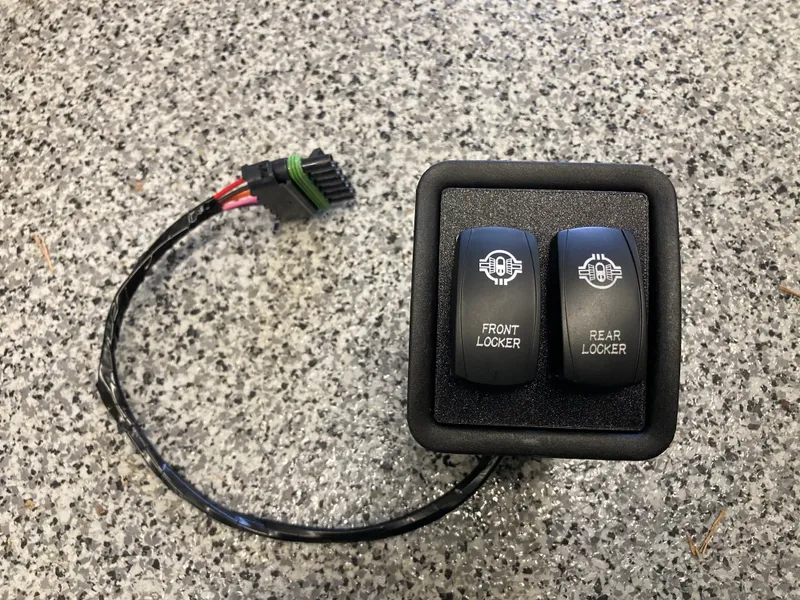

Created a factory looking switch panel for front and rear e-locker switches that requires no visible holes to be drilled and can be  reverted back to stock if needed.

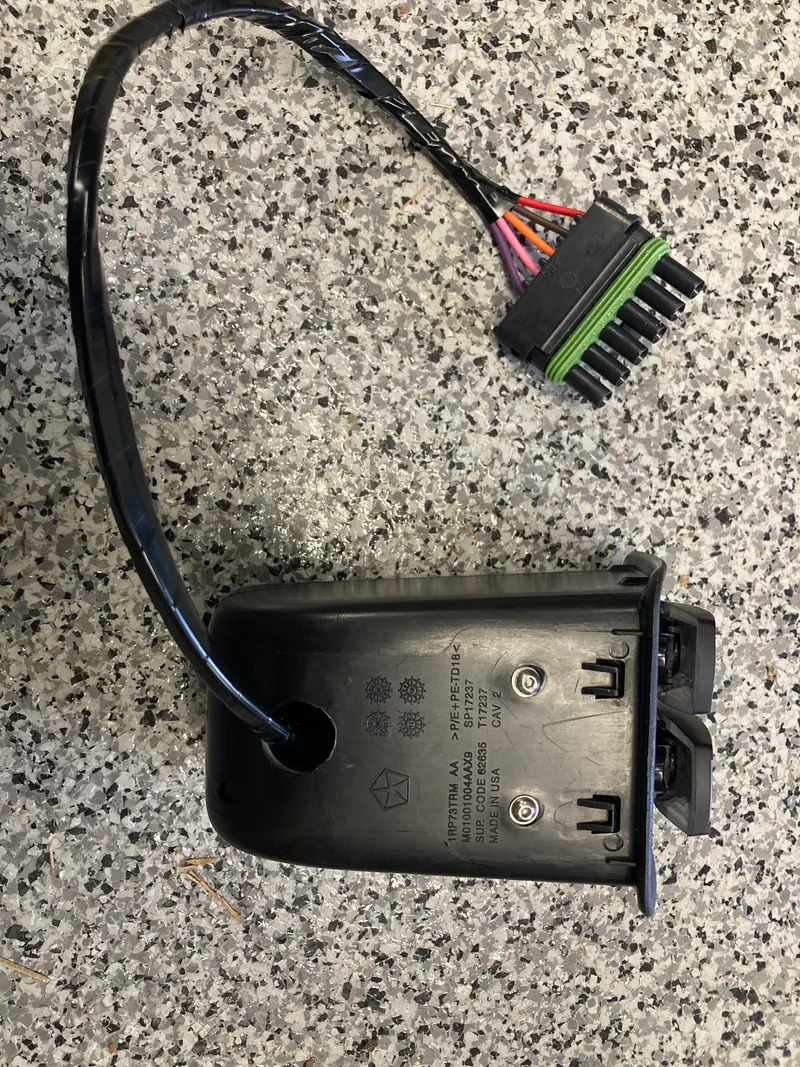

I put a wire connector plug  at the back of the cubby for ease of installation & future removal (getting into dash).

Switches used:  https://www.amazon.com/stores/StarkIndustries/page/331A87BC-FBDA-4FAF-AA95-CC2FAC844CB8?ref_=ast_bln

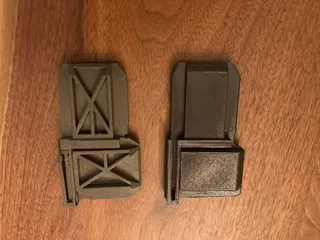

Print in PETG for temperature resistance.

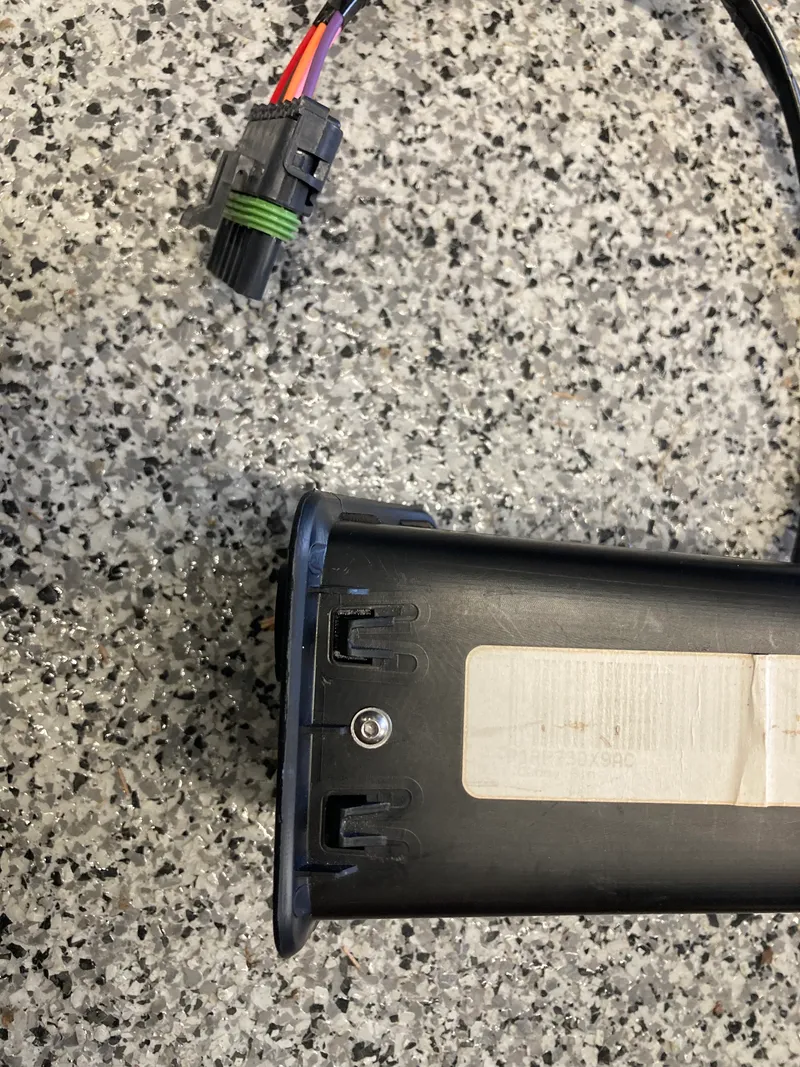

There are screw holes that align with existing holes in bottom of cubby.  Use 3mm machine screws.

The top is held by drilling a small hole in the top of the cubby, smaller hole in bezel plate and use a 3mm screw.
