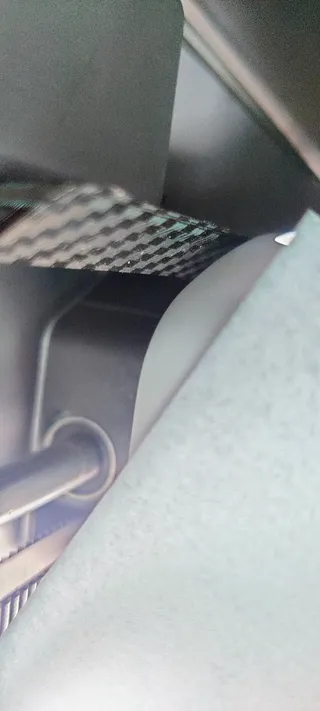

My brother this gets reeeeeeaaaall close to the head lol, looks like 30 thou. I'd like to change this a bit, can you upload a step file?

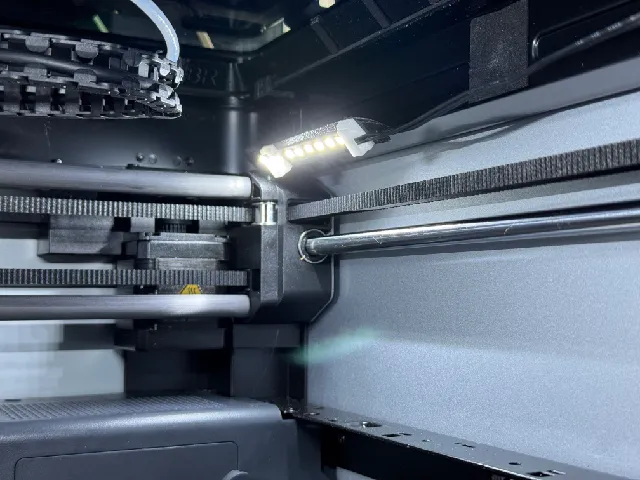

th3d led Bambu Labs X1 Carbon Light strip clip
th3d bambu led light kit light strip clip mount.
41
280
2
1645
updated
August 18, 2025
Makes
Comments
Easy print and work perfectly.
Much more elegant solution than wiring around back side.

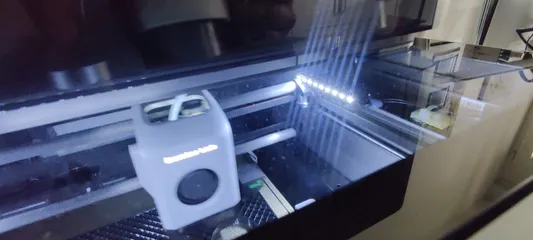

Easy to print, and super useful for adding the light strips from TH3D. I like how they can be easily repositioned since they slide. Thanks!
Awesome design implementation. I'm not sure why it wouldn't but will this work with the P1S? I'm dying to add some more lighting as the stock light is trash. Also I guess would the led you linked work as well? (edited)

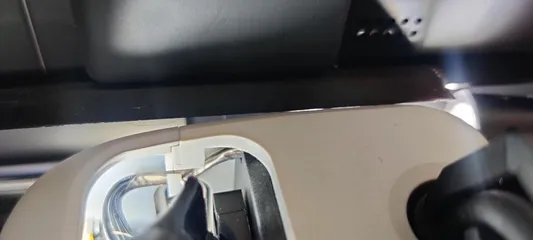

I printed them for my X1C but its not possible to get a led stripe on it because the toolhead will even squezze a sheet of paper between. (edited)
@czrtst yes it is close, but in operation it does not hit. We updated the design slightly so you can have more space. (edited)
@johnmcalpine_1173666
thx, will give them a try
Update: seems to work fine with the newer version.
I hope the Fysetc LED stripes wont kill my AP-board - current 0,5A instead of the 0,15A from the original ones. (edited)
I just ordered some kits for my printers, excited to use this mod! Have you noticed any collisions with the X-Y gantry or it's cables? Also could you should how you wrapped your wires for the LED strips?
@TheKitKiln Route wires towards the front of the machine. Left, then front and right. The cable chain will fly over the lights and it will just miss the tool head. There is just enough room. Using the clips the lights are easily removable, repositionable, etc to dial it in just right. Cheers! (edited)
