XDA Keycaps for Dust-Proof Stems (Remix)
Description
PDFXDA Keycaps for Dust-Proof Stems (Remix)
This is a 3D printable keycap set in the XDA profile, specifically designed for keyboards with dust-proof stems.
Key Features:
- Compatible with dust-proof stems
- Based on the XDA profile for uniform keycap height
- Maintains a clean, horizontal print orientation for a water-wave patern
- Great sound
Design Inspiration and Credits:
This design is a reinterpretation of the XDA profile keycaps, influenced by commercially available options. And this project will nerver done without fantastic openSCAD keycap generator project by Riskable on GitHub. (video manual for a curious guys)
Printing Recommendations:
- Nozzle size: 0.25mm or 0.4 (other size are not tested)
- Layer height: 0.15mm or finer for best results
- Print orientation: Horizontal
- Supports: Enabled
- Filament: PLA or PETG
remark with 0.25 nozzle you need support only on the stem
but with 0.4 you need support on the dish and the stem
Special Thanks:
A big thanks to Riskable for their open-source keycap generator project!
Info:

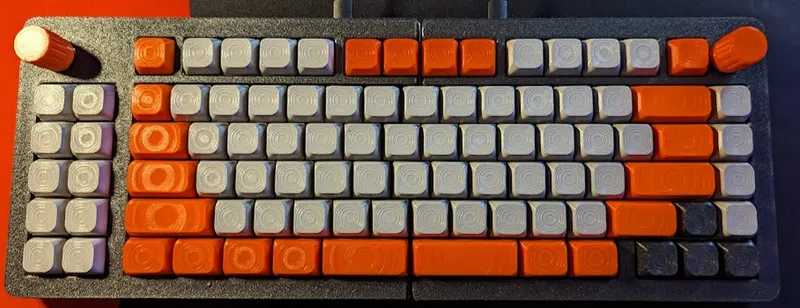

Keyboard : keebio sinc rev4
prited with Prusament orange prusa, urban gray and galaxy black
2024/05/05 Update
I added :
Standart space bar size 6.25
Bulb version for space bar (2.25b, 2.75b, 6.25b)
F and J tactile marker
2024/10/20 Update
add .py file settings
Tags
Model origin
The author remixed this model.
Differences of the remix compared to the original
This is my parameter of keycap_playground (from Rsikable) for XDA profil compatible with dust proof switch
