HSW Nut/Bolt/Thread Gauge Holder

I love the Honeycomb Storage Wall by @RostaP enough to now have a 30-panel wall in my workroom - covering 108cm x 111cm (nearly 4 feet x 4 feet)!  All of the outer panels have a solid frame thanks to the fabulous Honeycomb storage wall with borders remix by @Waldmops_249902!

Naturally, some of my favorite tools couldn't be suitably held by any of the HSW remixes that I found on Printables, so I got to work in ViaCad Pro...

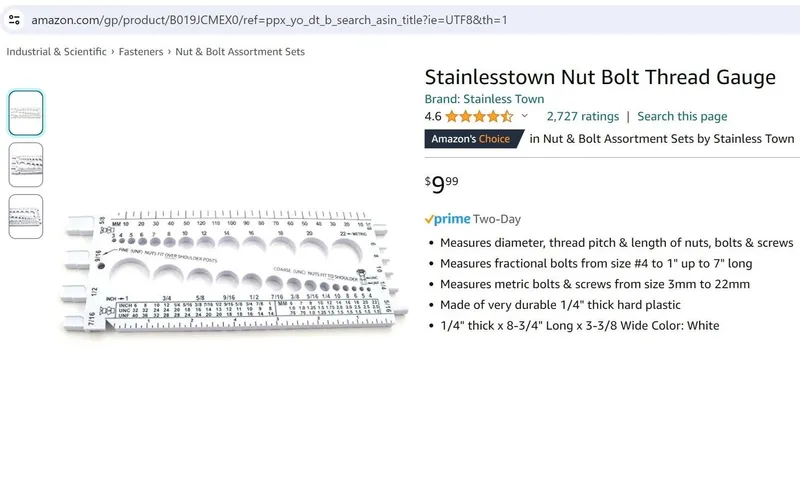

My nut/bolt/thread gauge tool is "Stainlesstown Nut Bolt Thread Gauge" that I purchased on Amazon at https://www.amazon.com/gp/product/B019JCMEX0

I couldn't find any HSW holder for this tool on Printables, so now we have one.

This Nut/Bolt/Thread Gauge Holder has two M3 holes for attachment to the honeycomb storage wall with @RostaP insert-with-M3.stl inserts.  The internal dimensions of this holder are 66mm wide by 14mm deep by 66mm high.

The provided STL file can be printed in PLA or PETG and does not require supports.

A PrusaSlicer 3MF file is provided for generic PLA.

A g-code file has been provided for the Original Prusa MK4 using Input Shaper at 0.2mm SPEED layer height.

The Nut/Bolt/Thread Gauge Tool Holder seen in the photos was printed on an Original Prusa MK4 with Sunlu White/Blue Glow-in-the-dark PLA using Input Shaper with a 0.4mm nozzle at 0.2mm SPEED layer height with a 15% gyroid infill.

Note that this HSW Nut/Bolt/Thread Gauge Holder is designed for the honeycomb storage wall, but it could be attached to any wall using two small screws!

Be sure to check out my other designs - including more honeycomb storage wall (HSW) accessories, universal key covers, and a diverse collection of household accessories and 3D printing tools - on Printables at https://www.printables.com/@PhilCaruso_661446/models

Designed a nut/bolt/thread gauge holder for attachment to Honeycomb Storage Wall by @RostaP
