Headphone Stand | Headset Desk Holder

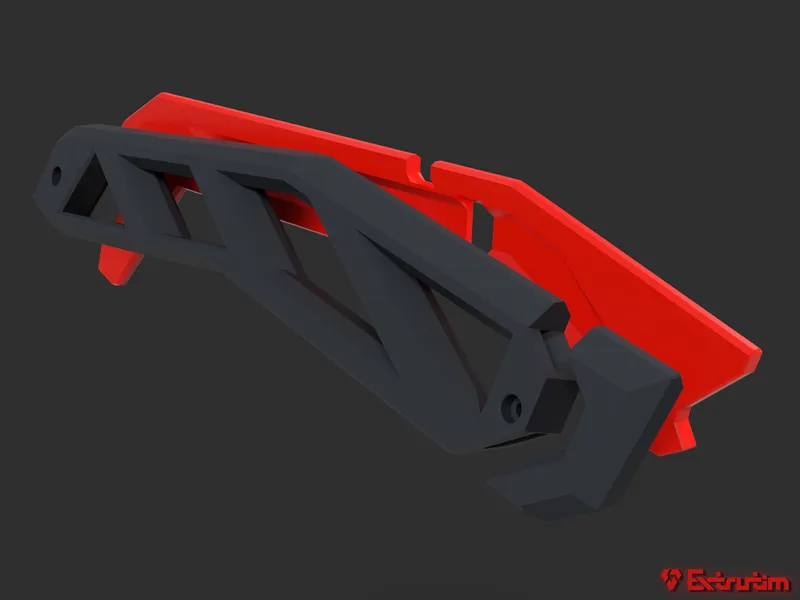

A multi-part headphone stand to assemble!
The headphone stand has a height of 24cm at the contact surface of the headphones and is therefore suitable for all common headphones / headsets.

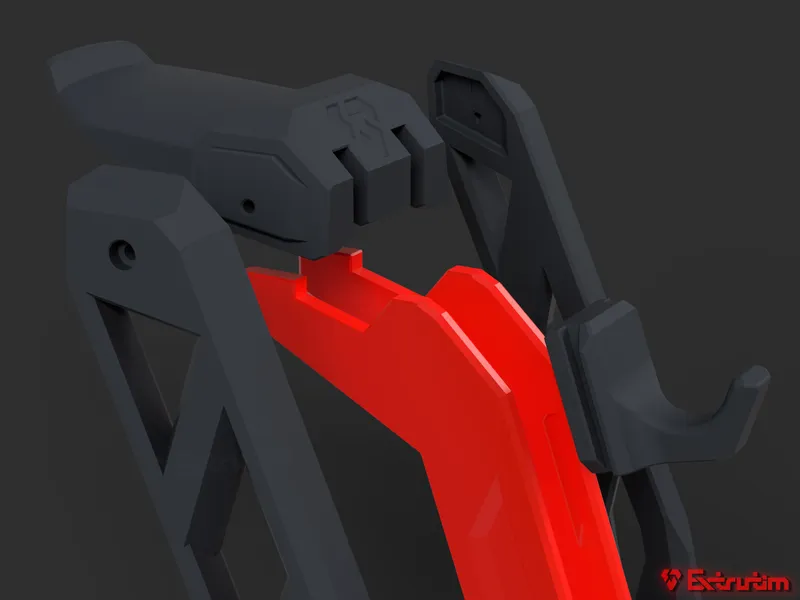

There is a hook on the back to hang up a cable, which is optional and can simply get left out.

You only need the following screws:

• 4 psc. M3x14-20mm cylinder head screw
• 4 psc. M3x6mm cylinder head screw

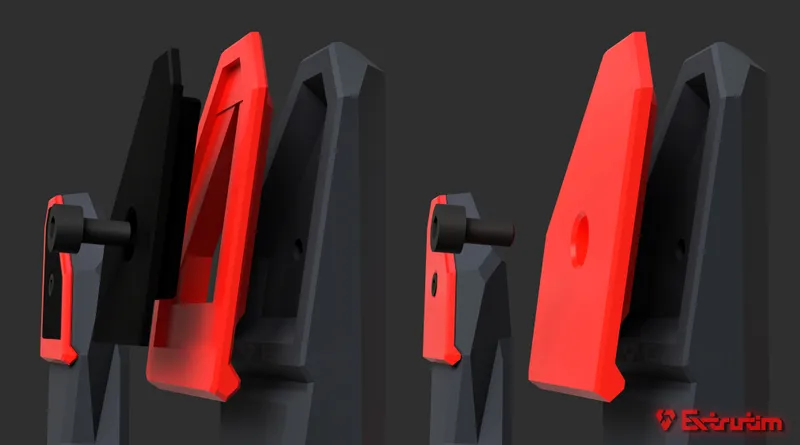

The red feet are available in two versions, with and without rubber pad made of flexfilament.

The model is easy to print, no supports are necessary, bridges are built in at some points and supports are added at the Base piece. Print the model with a layer height of 0.2mm for best performance.

Minimum print bed size: For printers with 180x180mm print beds like the Prusa Mini,  a version with split side parts and struts is available.

Print instructions:

Print all models as aligned with a layer height of 0.2mm. You can print the foot part with the built-in or self-generated supports.
For a good looking result, your filament and the first layer should be well adjusted.
I recommend at least 3 Primeters, 15% infill and you should consider printing the head piece with a brim.
If you want, you can fill the base part with sand or something similar during the print to increase the weight a bit.

Changelog:

• 11.08.2024 - A screw hole in the "Head" part was not fully extruded. This fault has been fixed.
