PrusaMMU_holder-enclosure_top_mount

MMU holder assembly I made for my custom enclosure to divorce the MMU from the printer to make it easier to work on.
2
20
0
172
updated March 23, 2024

Description

PDF

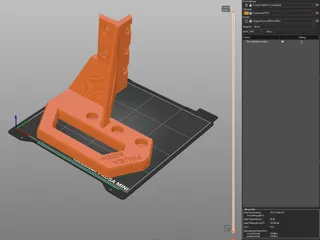

I made this holder to make my printer easier to remove from the enclosure and work on. If you want to use this but need longer, shorter arms or a different file type, feel free to contact me. It needs 2x M3-30 bolts (I had spares from Prusa) and 2x M3-.5 self locking nuts. For the connectors to disconnect the MMU I used Molex Micro Fit series. Should work with MMU2 and MMU3 (shown). Print the mounting plates with the round part vertical for best results. Printed with .4 nozzle and .2 layer height.

https://beta.collaborate.shapr3d.com/v/DnRPgv3ByX6VFthftt7pa
