EDIT 19/05/2024 - Added a new version of the X carriage which is much more compact (and thus better CG location) BUT limits slightly the print volume on the x-axis ( +5 mm max on each side of the X carriage lost compared to the previous version). The Klicky-00 probe was also modified to also fit this new carriage.

EDIT 10/04/2024 - Added Klicky-00 probe to files. It was designed for Spider V3 with MK8 nozzle, so it won't fit volcano type hotends\u2026

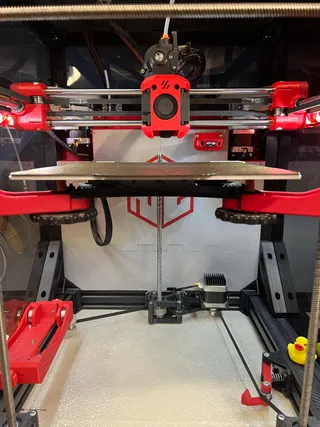

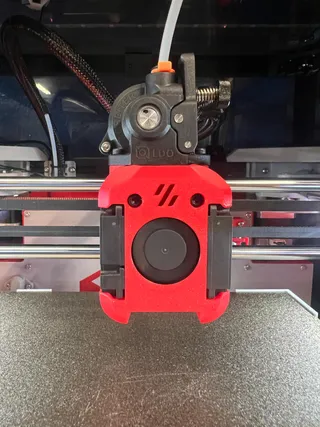

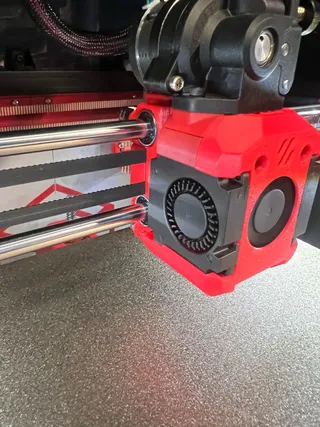

Dragon Burner for the Ender3 NG

An additional toolhead option, the Dragon Burner V8 by chirpy2605, for the awesome Ender3 NG (beta release) by RH3D.

This toolhead is compatible with a variety of hotends and extruders, see repo of chirpy2605 https://github.com/chirpy2605/voron/tree/main/V0/Dragon_Burner) for more information.

I have the Spider V3 & Orbiter 2.0, with EBB36 canboard & Unklicky probe. So the mount was designed and tested only with these precise options. Do not hesitate to reach me if you have any issue with other options :), or remix it yourself (step files included ).

Printing settings

All STL files must be imported in your slicer and printed in the set orientation (no support needed since there is already built-in support). Use same parameters as for Ender3 NG parts\u2026

Some notes

Screws / brass inserts needed for X-carriage V2 \"compact\" (V1 very similar):
- 2 x M4 standard brass inserts
- 5 x M3 standard brass inserts
- 2 x M3x8mm screw
EBB36 mount was remixed for more rigidity and has a third mount point for that purpose (use of a M3 nut glued to the printed part - or M3 brass insert for compact version).
No print volume lost compare to RH3D toolhead (except for the V2 compact version
As RH3D's toolhead, it was designed to use the Klicky probe (and all its variants)
Lightly sanding both parts of x carriage makes for a perfect seem after assembly with 2 M3 screws

Know issues:

X_carriage_bracket may not fit all hotends setup\u2026 (no issue reported so far)

Have fun!

","category":{"id":"135","path":[{"id":"1","name":"3D Printers","nameEn":"3D Printers","description":"Upgrading and improving your 3D printer couldn't be easier - no matter whether you're looking for functional or aesthetic modifications. Discover the best improvements.","__typename":"CategoryType"},{"id":"135","name":"Creality Parts & Upgrades","nameEn":"Creality Parts & Upgrades","description":"Free parts and upgrades for your Creality 3D printer!","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2024-10-28T17:48:39.048500+00:00","firstPublish":"2024-03-21T14:04:54.713916+00:00","datePublished":"2024-10-28T17:48:39.014675+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"politicalContent":false,"summary":"Dragon Burner V8 toolhead carriage for the Ender3 NG","likesCount":53,"makesCount":1,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":269,"displayCount":3171,"filesCount":20,"privateCollectionsCount":36,"publicCollectionsCount":48,"pdfFilePath":"media/prints/813622/pdfs/813622-db4eng-dragon-burner-mount-ender3-ng-dc9e7fb1-2103-4003-bc05-826d2c95d2d2.pdf","commentCount":4,"userGcodeCount":0,"remixCount":0,"canBeRated":false,"addMakePermission":null,"printer":null,"image":{"id":"2983120","filePath":"media/prints/813622/images/6397705_f0236130-92eb-440e-ac69-14d4b99717a4_2d4116a5-a9a4-4f3f-8b2e-f23949d079d3/ender3ng_serialnumber_request.jpg","rotation":0,"imageHash":"UucJD4BIp4iAd4eAh8d4KJeJOPrYIowP","imageWidth":2239,"imageHeight":2122,"__typename":"PrintImageType"},"images":[{"id":"2983120","filePath":"media/prints/813622/images/6397705_f0236130-92eb-440e-ac69-14d4b99717a4_2d4116a5-a9a4-4f3f-8b2e-f23949d079d3/ender3ng_serialnumber_request.jpg","rotation":0,"imageHash":"UucJD4BIp4iAd4eAh8d4KJeJOPrYIowP","imageWidth":2239,"imageHeight":2122,"__typename":"PrintImageType"},{"id":"3154467","filePath":"media/prints/813622/images/6781855_c84cb842-98f4-49ee-83f6-561ad3bcd038_7c086231-1de3-4311-9eb0-ef7cfa3f014a/e3ng_db_compact2.png","rotation":0,"imageHash":"rueJEwQep3+TRmmPfffJhg8eeHd4eIc=","imageWidth":1113,"imageHeight":1876,"__typename":"PrintImageType"},{"id":"2931977","filePath":"media/prints/813622/images/6289871_d161a2d7-8e87-4f6c-956b-de3161efb5f8_a0653b20-ea31-45c2-8262-2eca171e4c6f/e3ng_db_mod.png","rotation":0,"imageHash":"p+cRHQT4p2uGyGioaHlnd69v+PuU","imageWidth":452,"imageHeight":616,"__typename":"PrintImageType"},{"id":"2931967","filePath":"media/prints/813622/images/6289847_c0f9cad8-ec1b-49a4-b066-008670dc50fe_fdf7b21e-92c7-4246-a513-4bc41b9b001b/photo2.jpg","rotation":0,"imageHash":"GwgGFQTUwOJOt4JqrUazmeO7D5zb","imageWidth":1512,"imageHeight":2016,"__typename":"PrintImageType"},{"id":"2931968","filePath":"media/prints/813622/images/6289848_08a0533c-cc75-4589-8f3a-41ff791eb360_8a449540-2389-484a-99b1-26aa3c8e4555/photo6.jpg","rotation":0,"imageHash":"EecRDYB1hoiAiHh5d3d4eYyv9ckd","imageWidth":2016,"imageHeight":1512,"__typename":"PrintImageType"},{"id":"2931978","filePath":"media/prints/813622/images/6289870_c0aaf64c-85db-485a-9800-f4fdfd8c6d5f_88b2ba5d-e310-49c2-87c5-475791250a94/e3ng_db_mod_rear.png","rotation":0,"imageHash":"LfgRFQL3mYt2t2iHd4hniHB+BOc6","imageWidth":491,"imageHeight":677,"__typename":"PrintImageType"},{"id":"2931965","filePath":"media/prints/813622/images/6289850_9c712c38-b39e-4cb2-b0c5-701e7dc9a0e0_f1f6ba3f-66e5-4bd7-bccc-4d78526f3867/photo3.jpg","rotation":0,"imageHash":"WKcJDQZ/h2V4p4WHd4doZwJVQlAW","imageWidth":1512,"imageHeight":2016,"__typename":"PrintImageType"},{"id":"2931966","filePath":"media/prints/813622/images/6289852_1491d62e-e75d-4449-af0b-d178696dbb43_a939dcce-c36a-490a-a508-33b3e5fecb66/photo5.jpg","rotation":0,"imageHash":"GOgFFQiOeoCIt4hJZpdnGI+P9Pc3","imageWidth":1512,"imageHeight":2016,"__typename":"PrintImageType"},{"id":"2931969","filePath":"media/prints/813622/images/6289851_ae607bfd-d3a4-4928-a67e-f5906c56582f_17a749be-8fb5-4c6a-9be3-0b43d75680ee/photo1.jpg","rotation":0,"imageHash":"XQgKFQR3ZD+p2Hh3WIiHWHuf3PKW","imageWidth":1512,"imageHeight":2016,"__typename":"PrintImageType"},{"id":"2931970","filePath":"media/prints/813622/images/6289849_73d71fff-6b00-4d89-94aa-d86ff4960b68_ca11dd26-b9bc-4384-b54f-b2e37fa5dbf6/photo4.jpg","rotation":0,"imageHash":"mLcFDQaPeFR6uISYWVplOSmwpAJJ","imageWidth":1512,"imageHeight":2016,"__typename":"PrintImageType"},{"id":"3013000","filePath":"media/prints/813622/images/6464300_6dea0c1a-149d-460d-b93f-f3075dca71b5_0078d293-834b-4d75-8b82-da5d9bee2308/capture-decran-2024-03-30-153700.png","rotation":0,"imageHash":"o/cNFILBo5hgaXePllOSMCMJMw==","imageWidth":430,"imageHeight":233,"__typename":"PrintImageType"}],"imagesCount":11,"tags":[{"name":"dragon","id":"70","__typename":"TagType"},{"name":"mount","id":"469","__typename":"TagType"},{"name":"ender","id":"2006","__typename":"TagType"},{"name":"ender3","id":"5303","__typename":"TagType"},{"name":"burner","id":"16287","__typename":"TagType"},{"name":"toolhead","id":"24042","__typename":"TagType"},{"name":"dragonburner","id":"148979","__typename":"TagType"},{"name":"ender3ng","id":"171565","__typename":"TagType"}],"thingiverseLink":null,"filesType":null,"previewFile":{"id":"3728474","filePreviewPath":"media/prints/813622/previews/7d457e0573c715842d921fc955cbbb31e76630f1.png","__typename":"STLType"},"license":{"id":"4","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[{"id":"459636","modelId":"469280","modelName":"Ender 3 NG - coreXY (beta)","modelAuthor":{"id":"450979","handle":"radkoko","verified":false,"publicUsername":"RH3D","__typename":"UserType"},"model":{"id":"469280","name":"Ender 3 NG - coreXY (beta)","slug":"ender-3-ng-corexy-beta","datePublished":"2024-12-25T20:58:16.718090+00:00","image":{"id":"2107554","filePath":"media/prints/469280/images/4436689_0b0a86f5-9022-4642-9855-25a5b6101764/invite.png","rotation":0,"imageHash":"MQgOBICoxoh7h3d/h4RgaQSlBg==","imageWidth":1920,"imageHeight":1080,"__typename":"PrintImageType"},"club":false,"authorship":"author","license":{"id":"4","name":"Creative Commons \u2014 Attribution \u2014 Noncommercial \u2014 Share Alike","disallowRemixing":false,"__typename":"LicenseType"},"eduProject":null,"__typename":"PrintType"},"url":null,"urlAuthor":null,"urlImage":null,"urlTitle":null,"urlLicense":null,"urlLicenseText":null,"__typename":"PrintRemixType"},{"id":"464297","modelId":null,"modelName":null,"modelAuthor":null,"model":null,"url":"https://github.com/DW-Tas/Klicky-00","urlAuthor":null,"urlImage":"https://repository-images.githubusercontent.com/631744119/0060dc9e-995f-44a9-b782-d3c1d2e419a7","urlTitle":"GitHub - DW-Tas/Klicky-00: The goal of this probe is to give Voron TAP-like consistency with repeatable Z-offset even when changing nozzles.","urlLicense":null,"urlLicenseText":null,"__typename":"PrintRemixType"},{"id":"459637","modelId":null,"modelName":null,"modelAuthor":null,"model":null,"url":"https://github.com/chirpy2605/voron/tree/main/V0/Dragon_Burner","urlAuthor":null,"urlImage":"https://opengraph.githubassets.com/ae9d414e95de98b1e2d7b1bfd62d646654f4b6fdef692ffd3adc2f91a4f9fcce/chirpy2605/voron","urlTitle":"voron/V0/Dragon_Burner at main \u00b7 chirpy2605/voron","urlLicense":null,"urlLicenseText":null,"__typename":"PrintRemixType"}],"remixDescription":"

Creation of a mount compatible with Dragon Burner V8 toolhead to use in my Ender3 NG. I took Ender3 NG logo on the toolhead, copy belt attachment for compatibility.
