Simjack H-shifter mount profile 3030

Why?

Because of the unusual mounting holes in the H-shifter from Simjack, I made a version of the mounting for a 30x30 mm. Slides in typical 3030 aluminium profile. Using M6 Mount holes for Simjack H Shifter and M6  bolts on the sides.




What you need:

• Simjack H Shifter
  https://www.aliexpress.us/item/3256804902331506.html?spm=a2g0o.store_pc_promotion.promoteWysiwyg_2002048603085.1005005088646258&gatewayAdapt=glo2usa

• 4 x M6 16mm bolts

• 2 x M6 12mm bolts

• 2x  M6 nuts

• Aluminium profile 30x30




Printing:

• nozzle: 0,4

• height 0,2

• fill 50%

• support: yes




Assembly:


Before starting printing, you can check your fit:
 "simjack_h_shifter_mount_test_fit.3mf"

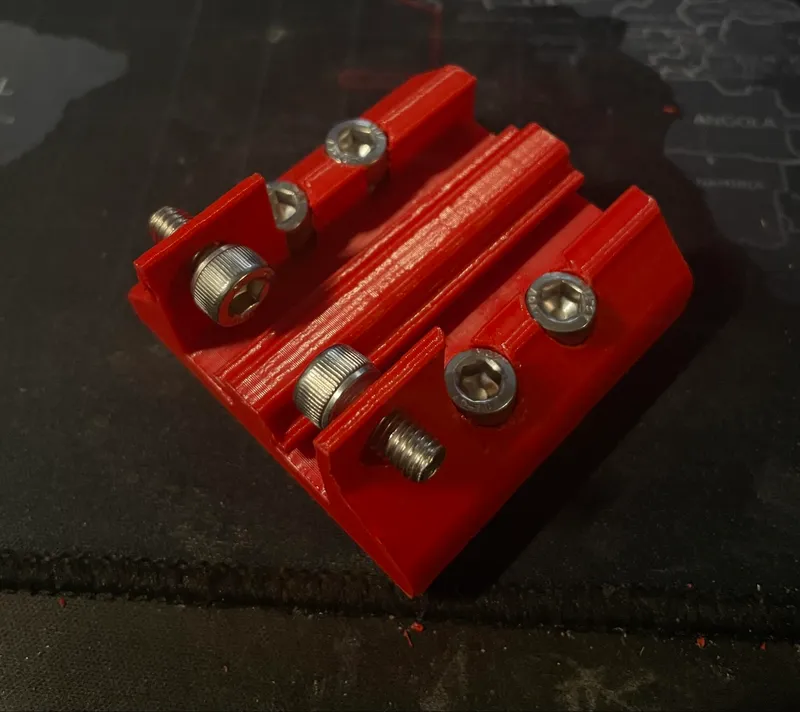

1. Insert 4 M6 16mm and 2 M6 12 mm bolts:

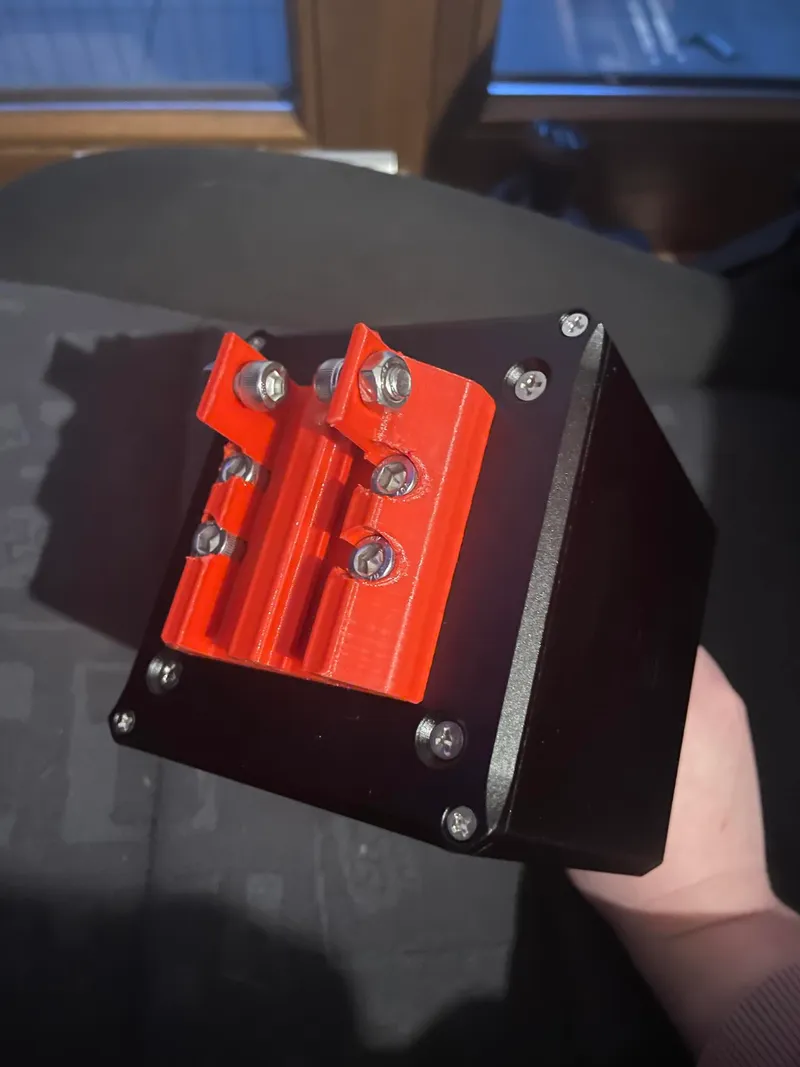

2. Screw to simjack h shifter:

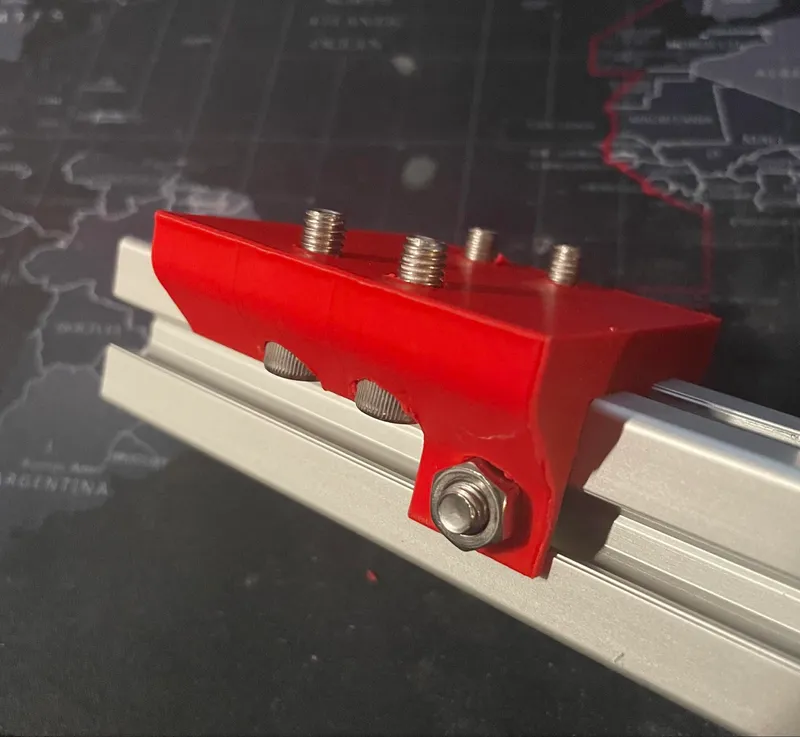

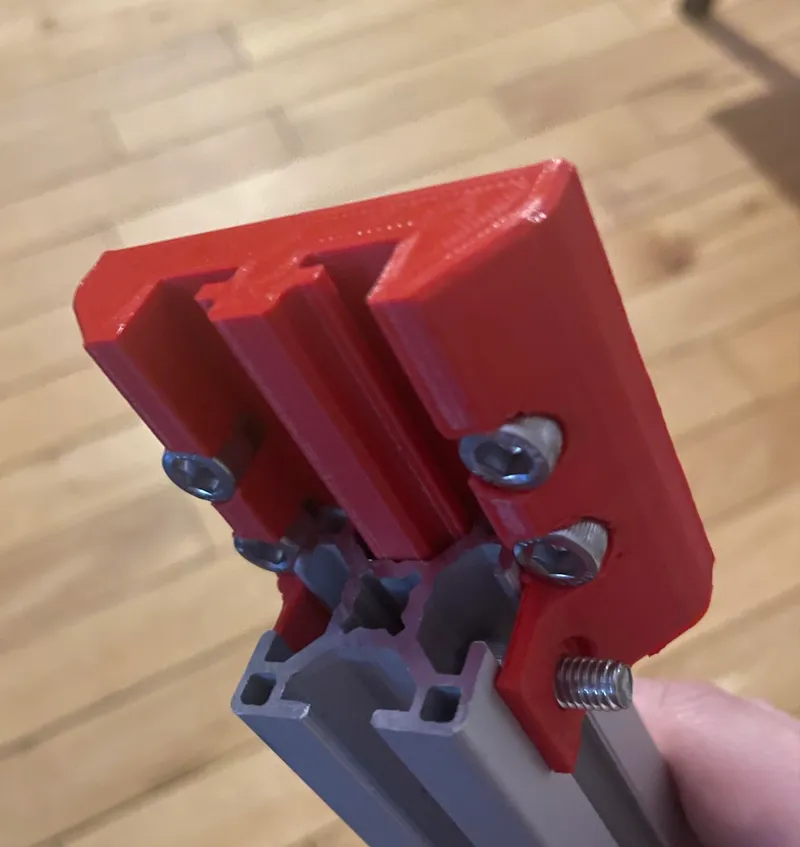

3. Slide in 3030 alu profile:

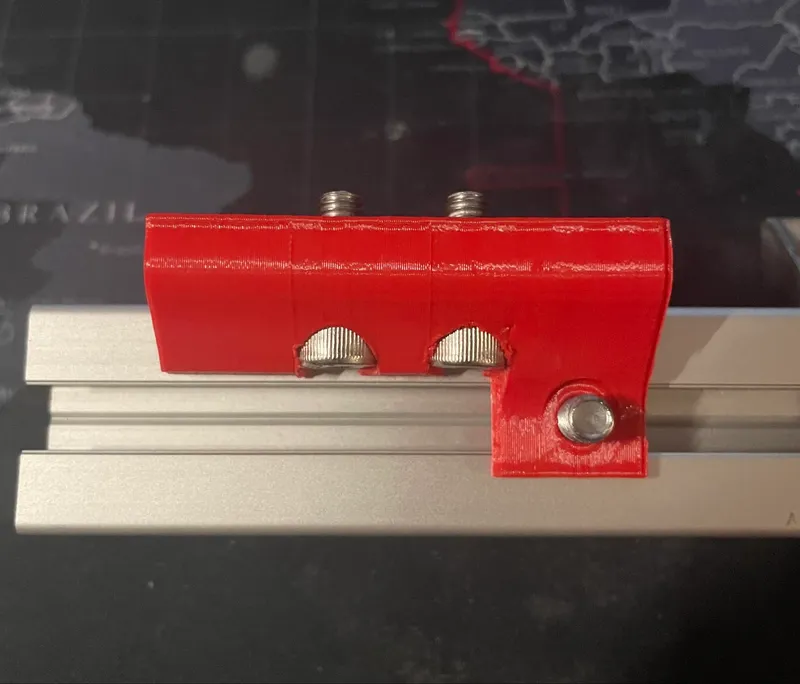

4. Tighten the nuts on the screws on the sides by pressing the screw in the groove of the aluminum profile with a screwdriver



5. Shiftershould hold in one place and not move.
