#0134 Hex Vent Hole Cover [2 Variants]- Original Prusa Enclosure (OPE)

*** Thanks for checking out this model! ***

If you appreciate what I'm doing, consider buying me a coffee, and check out my other models for something else you might like!

**********

[UPDATE Apr 7, 2024] Added a variant that covers the slits only, for those that would like to save on some material and has kept the hex cutout still intact.

**********

This is another model to help plug up the holes in the Original Prusa Enclosure.  Given all the upgrade options and possibilities provided by Prusa, it's inevitable that if they are not used, they need to be plugged up to help keep the heat in.

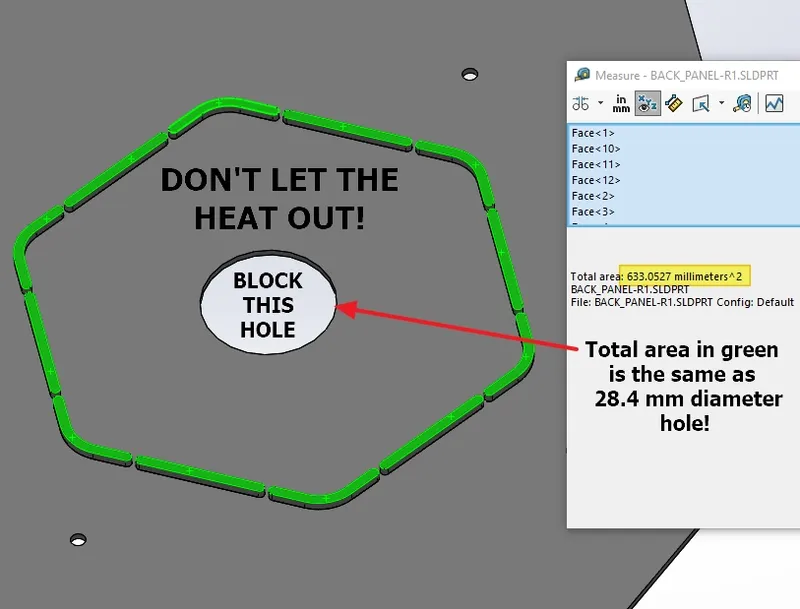

Did you know that the slits around the hexagonal vent hole is equivalent to a 28.4mm diameter hole?  (That's about twice as big as your thumb) - a big opening for heat to escape - not great if your goal is to keep the heat inside.

This model is designed to plug up the large vent hole even if the acrylic glass cutout section has been removed. And it also works without the hexagon removed.

You should use the spare rivets from your Enclosure assembly kit to hold the Vent Hole Cover in place. If you don't have any more, try the model included here for replacement rivets (as a last resort because the original ones work a little better.)


For best results for heat retention, consider printing my other designs as well:

1. Corner Caps: https://www.printables.com/model/552596-original-prusa-enclosure-corner-caps-from-the-insi
2. Extra Rivet Plugs: https://www.printables.com/model/537013-xrivets-for-prusa-enclosure-extra-rivets-plugs
3. Slit Covers: https://www.printables.com/model/537014-prusa-enclosure-slit-cover-plug
4. LCD Cable Exit Cover: https://www.printables.com/model/809972-lcd-cable-exit-cover-original-prusa-enclosure-ope
5. LCD Cable Exit Cover with Accessory Cable Pass-through: https://www.printables.com/model/786143-lcd-cable-exit-cover-with-accessory-cable-pass-th
6. Front Bottom Cover: https://www.printables.com/model/1096783-0190-front-bottom-cover-original-prusa-enclosure
7. PSU Cable Pass-thru Cover: https://www.printables.com/model/809966-psu-cable-pass-thru-cover-original-prusa-enclosure
8. PSU Pass-through Cover (Blank): https://www.printables.com/model/859757-psu-cable-pass-thru-cover-blank-original-prusa-enc
9. Cable Inlet Cover: https://www.printables.com/model/809962-cable-inlet-cover-up-to-4-cables-original-prusa-en
10. “Mystery Hole” Cover: https://www.printables.com/model/859763-mystery-hole-cover-for-original-prusa-enclosure
11. Front Bottom Corner Cable Pass-through Cover: https://www.printables.com/model/859761-front-bottom-corner-cable-passthrough-cover
12. Rear Bottom Corner Cable Pass-through Cover: https://www.printables.com/model/859759-rear-bottom-corner-cable-passthrough-cover
13. Threaded Bottom Panel Hole Cover: https://www.printables.com/model/873425-miscellaneous-bottom-panel-hole-plug-original-prus
14. I will be releasing an Automatic Enclosure Heater as well…check back soon!


Printing Tips for rivets:

1. Print the rivets slowly and no less than 10x so you can have some spares.  Because they are small, they can break if mishandled.
2. Print using ABS.  Do not use PLA or PETG because they don't flex enough without breaking.
3. Tested with Polymaker ABS black.
4. 0.2mm layer, 0.4mm or 0.6mm nozzle.
5. Idea: you might even try to use TPU, but I've not tested them with TPU.

If you add this to your collection and/or download the model, please click the LIKE button and give it some STARS!

Remember, you can earn some Prusameters if you post a pic of your make!  Plus, it would make my day to see it. ;-D

Happy Printing!

P.S. Please post some constructive feedback if you'd like to see something improved.
