CBR250R CBR300R CB300f Rebel 300 Fork Guards

Fork guards specifically for the CBR250r, which are 37mm forks. These are found on many other smaller retro and older Honda models. This should fit any with the standard 37mm forks, but the bulge diameter at the top may vary, and I am unable to determine what all models may have on their forks so measure accordingly.

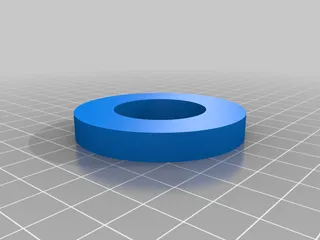

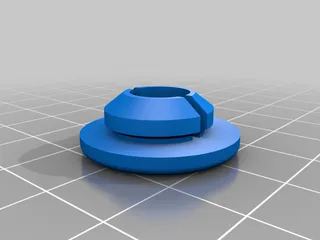

The inner diameter of the clip is approximately 55mm. Also, it is recommended to print just the first couple layers as a test, then take the bottom ring to your motorcycle fork as a test fit before printing the entire model.

Feel free to tweak as needed. Attach with a black zip tie. Printed in cured PLA+, but PETG or TPU would be a better material for UV resistance. Print as fast or slow as you want. No supports are needed when printed as oriented in the .stl file.

Print Settings

Printer Brand:

ELEGOO

Printer:

ELEGOO NEPTUNE 3 Pro

Rafts:

No

Supports:

No

Resolution:

0.16

Infill:

50%

Filament: Ender PLA+ Black
