VZ Hextrudort LOW CNC EBB36 mount & VZ Toolhead PG7 Gland cable holder

After trying out another mount found here I noticed that the ebb36 was uncomfortably low. To point of risking a fire, the heater ports are too close to the VZ CNC Toolhead top plate.

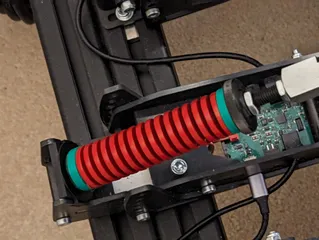

The can-board itself sticks out roughly 4mm above the mount that is right on top of the moons motor. (see picture)
But that gives more space for connectors and the heater wires.

The posts where the can-board stands on have a high chamfer, there are very small surface mount components close to the screw hole when you got the MAX31865 chip version of the can-board. This should not affect the sturdiness much.

Both models have predesigned supports, you can split the models to remove the supports if you want to try using slicer supports. I prefer designed supports with custom object slicer settings.

Included a cable holder that has a offset PG7 Cable gland mount that lines up perfectly with the CAN connector on the EBB36. - YET TO TRY THIS OUT

I redesigned it from the ground up but kept the overal aesthetics.
