Industrial lamp

Industrial Lamp

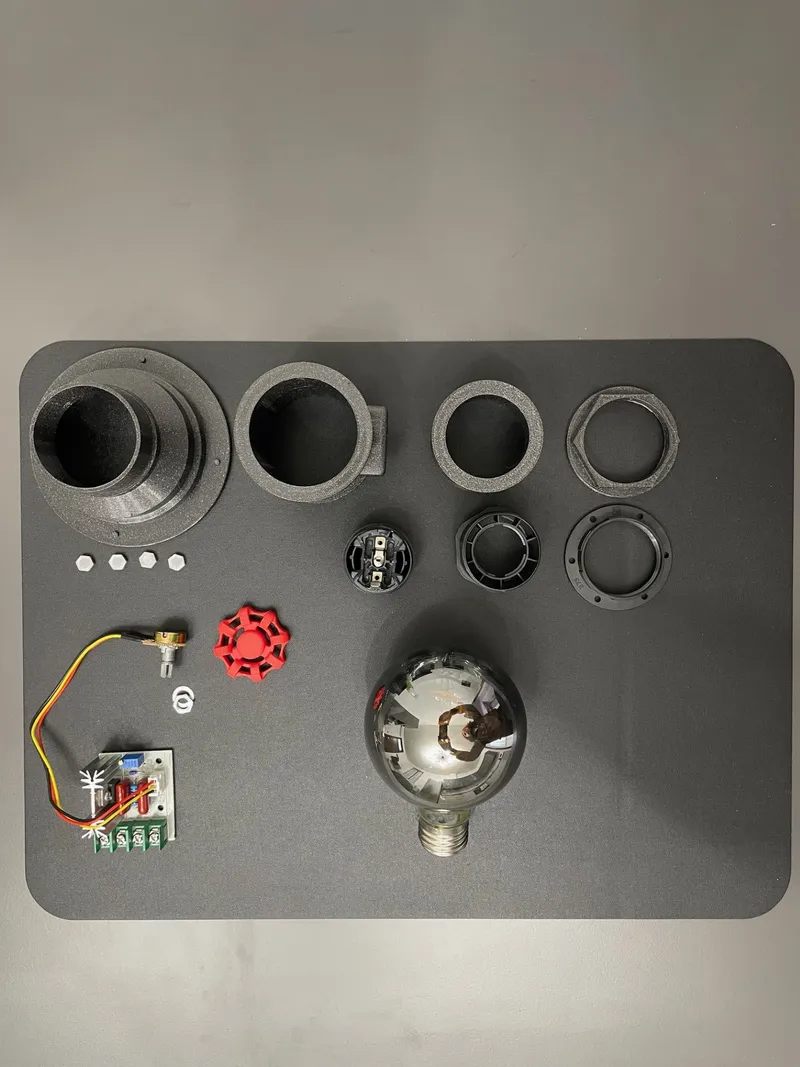

Parts

• Adjustable Voltage Regulator 220V (I used this:https://www.amazon.it/Gebildet-110V-220V-Precablato-Regolatore-Elettronico/dp/B09NDHJFYC/ref=sr_1_1?dib=eyJ2IjoiMSJ9.j5ylisWoymw8gwGQw8UwpJo_6DvRL1Mw2w7j4zZTpCg.tHgM0jJ3lTQjxahhfTKO9XX9egCSNLbRuZYRLoZeCc0&dib_tag=se&qid=1709594824&refinements=p_89%3AGebildet&s=industrial&sr=1-1&th=1)
• Power cable 220V (2 poles)
• E27 Lamp Socket with nut
• Dimmerable E27 bulb “vintage style”

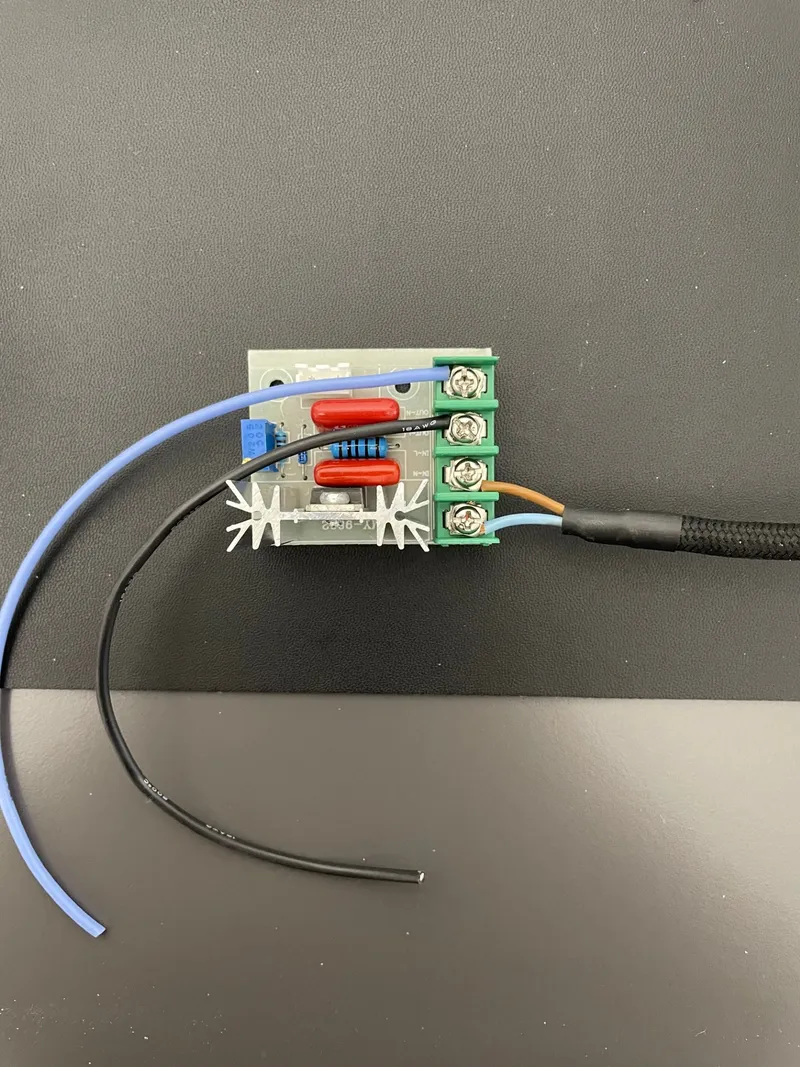

Voltage regulator connection

Assembly

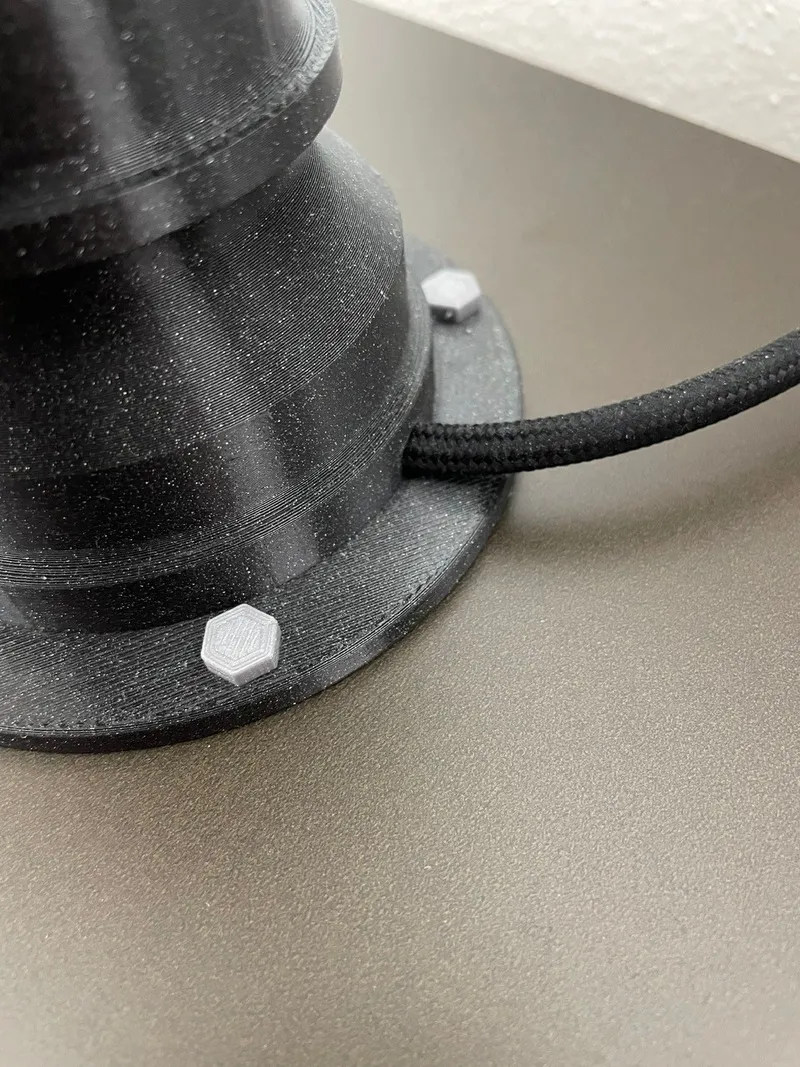

1. Glue the fake nuts and ass the power cable through the opportune hole in the base

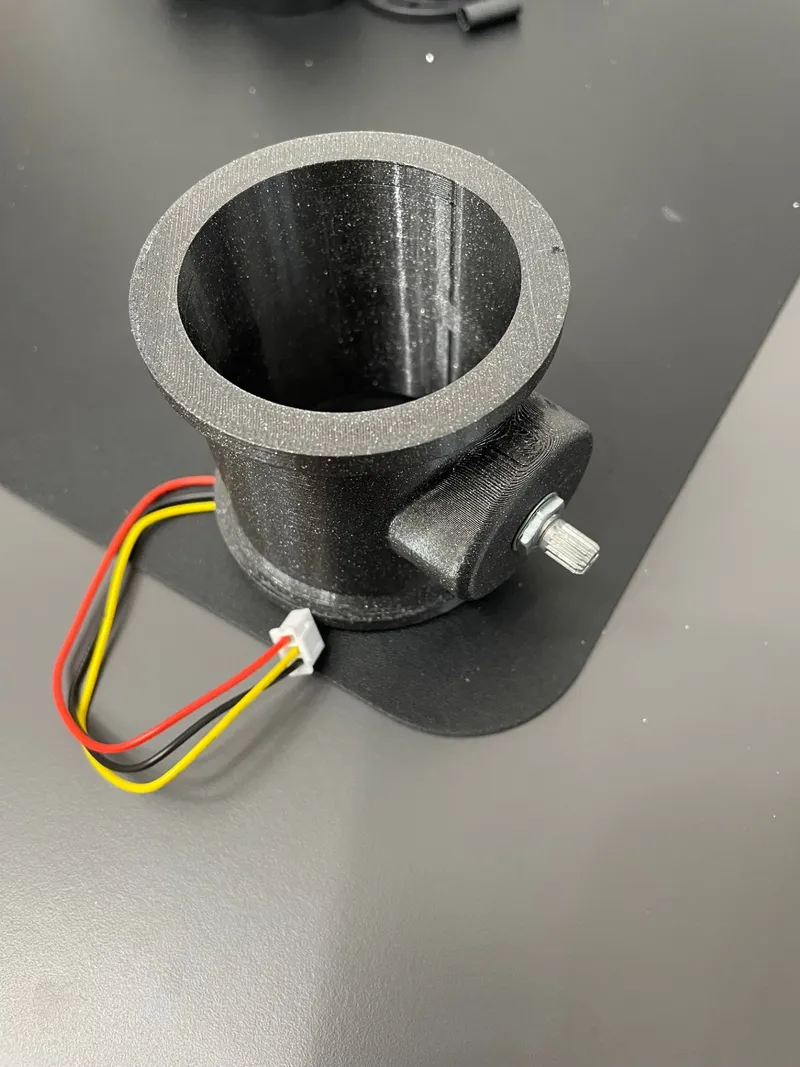

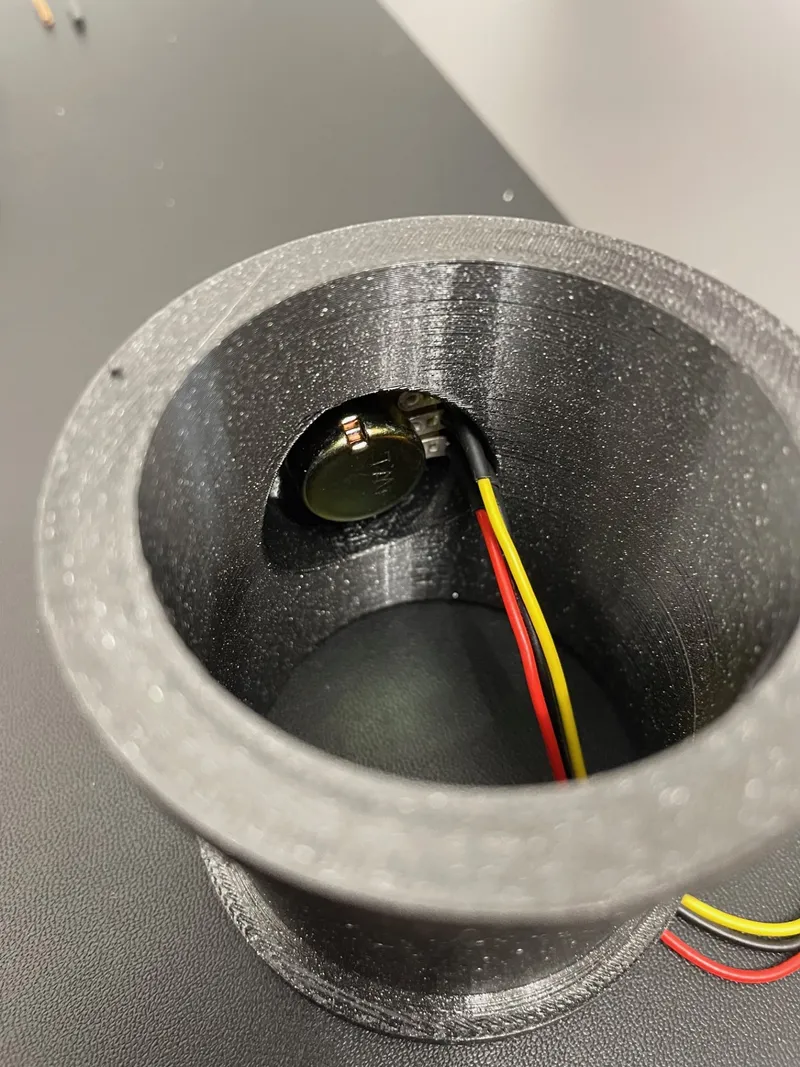

2. Put the voltage controller in the appropriate hole in the middle part. You need to bend the connection cables slightly

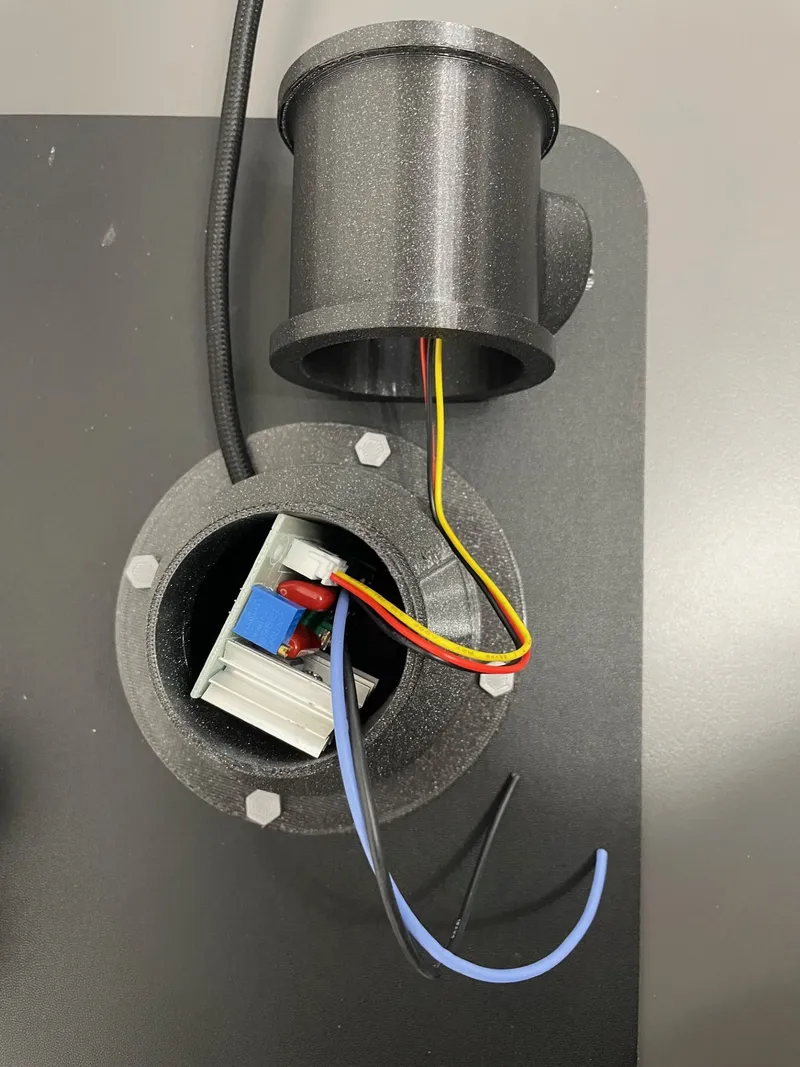

3. Insert the circuit board into the base and connect the cables

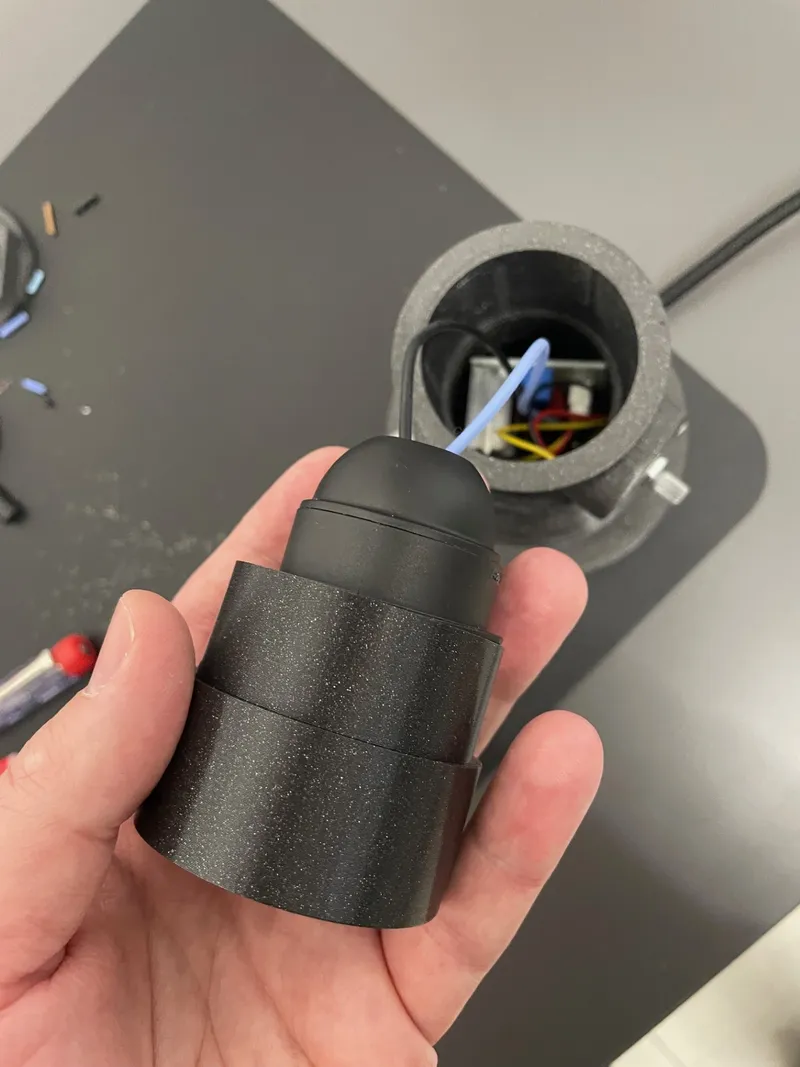

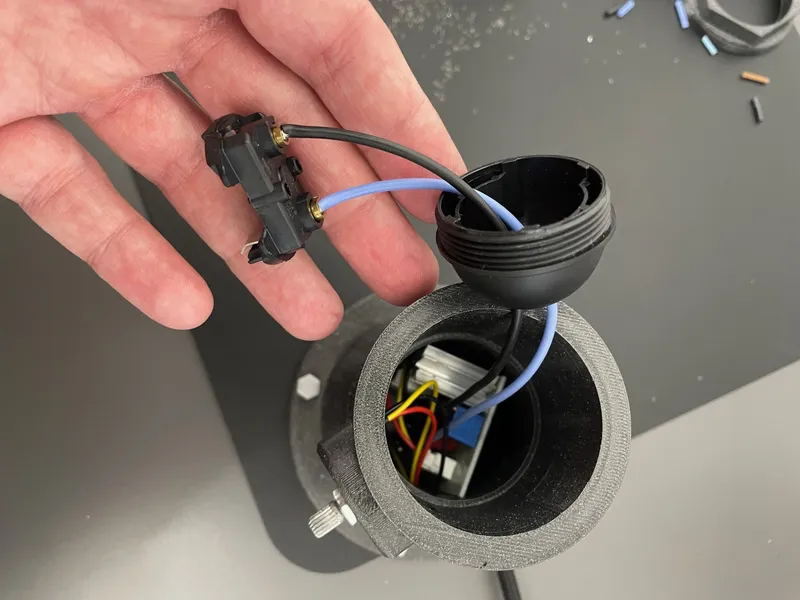

4. Assemble the central part and connect the E27 socket bulb

5. Insert the lamp holder in the top part

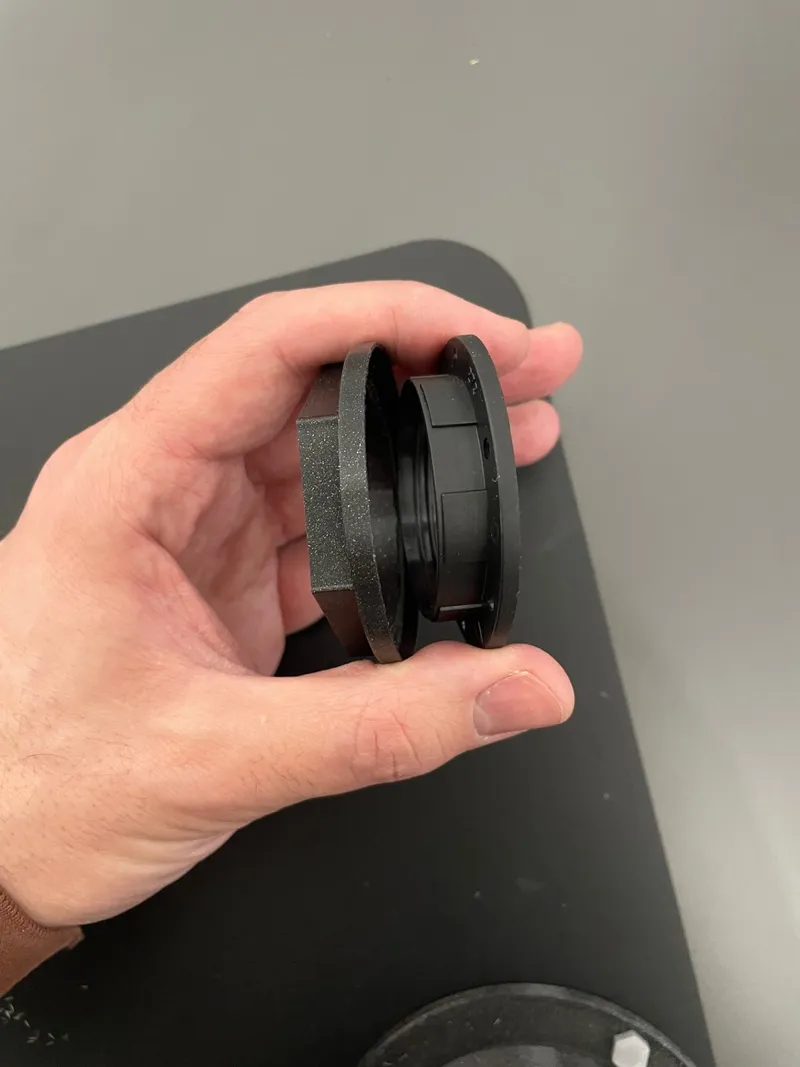

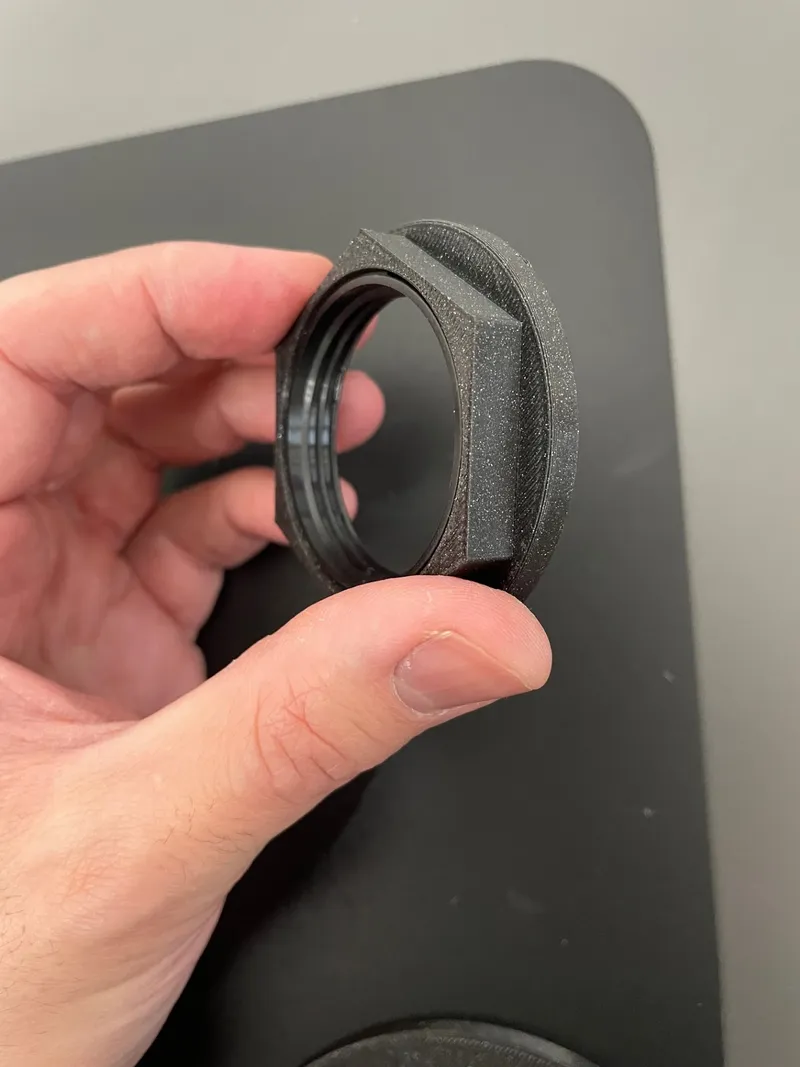

6. Insert the lamp holder nut into the “fake” nut

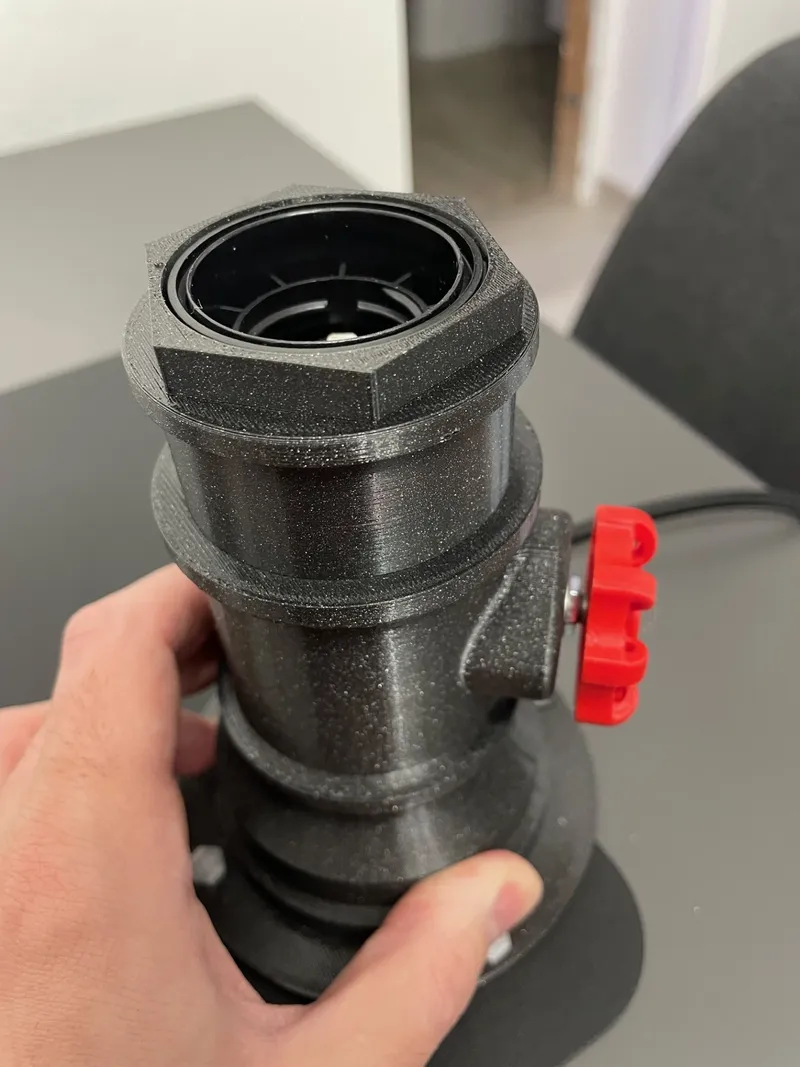

7. Screw the nut and assemble the knob

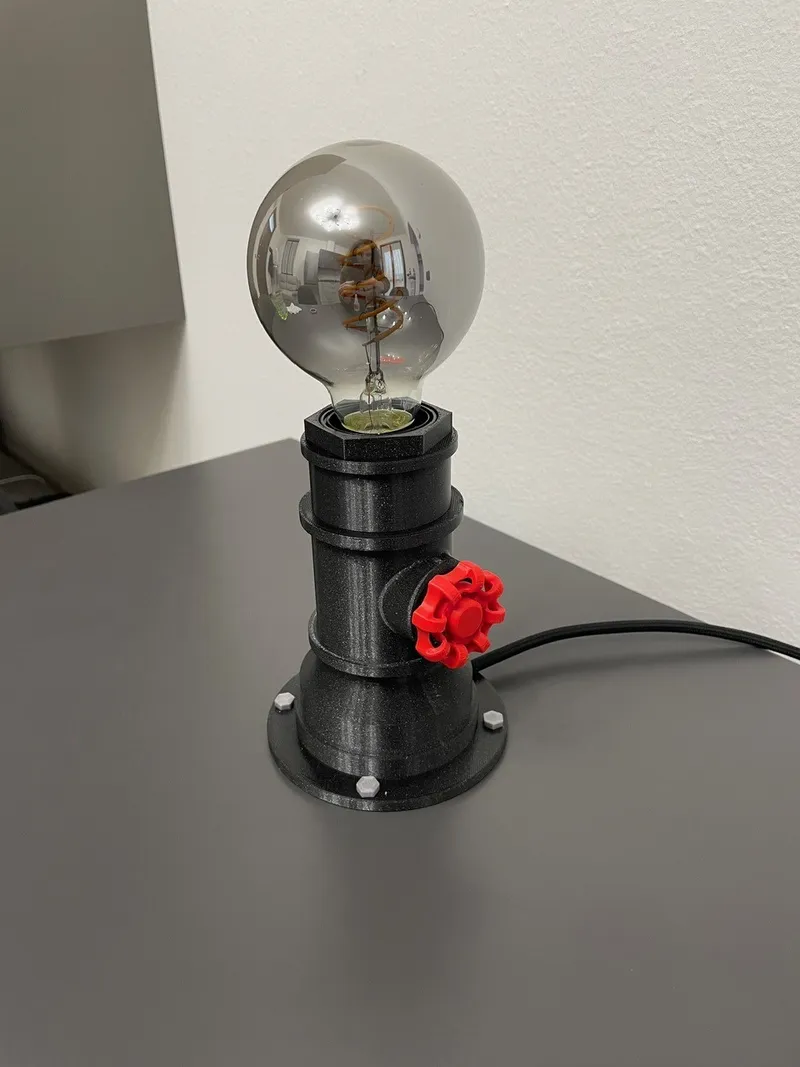

8. Screw the bulb and the lamp is ready!
