Ironman Proton Cannon

Ironman Proton Cannon

This is my version of the Proton Canon from the Marvel vs Capcom game. This project was completely designed in Solidworks and although in real size is not easy to assemble and print, I wanted to share with you the version at a scale of 15%.

How to print ?

This is an OBJ model so you will need to split it, here is how

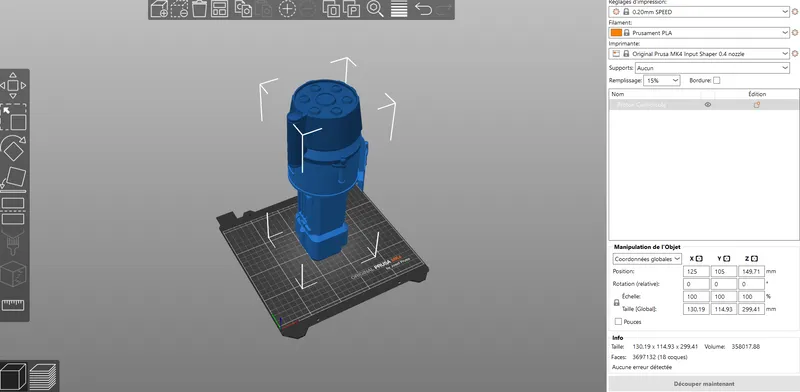

1. Charge the OBJ

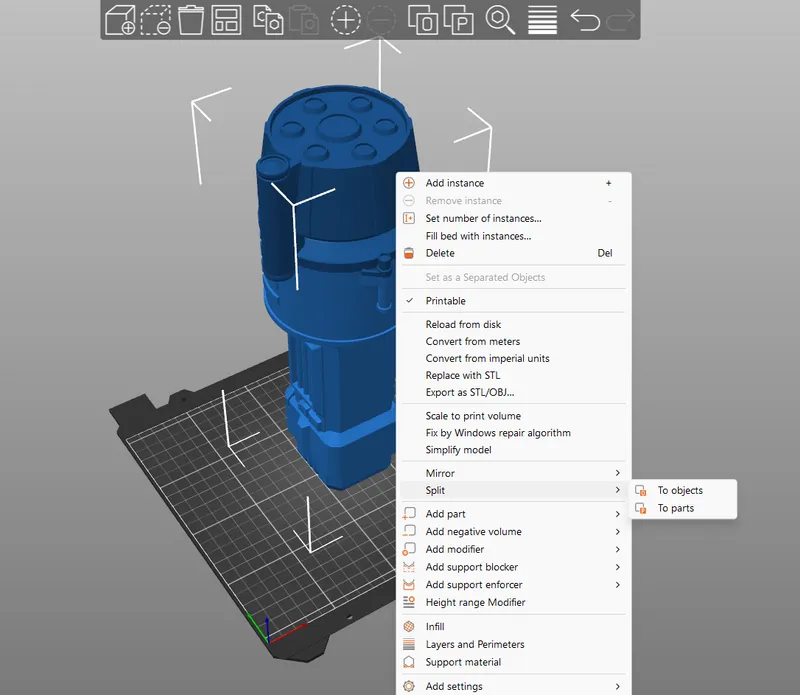

2. Right click on the object & select “Split → To Objects”

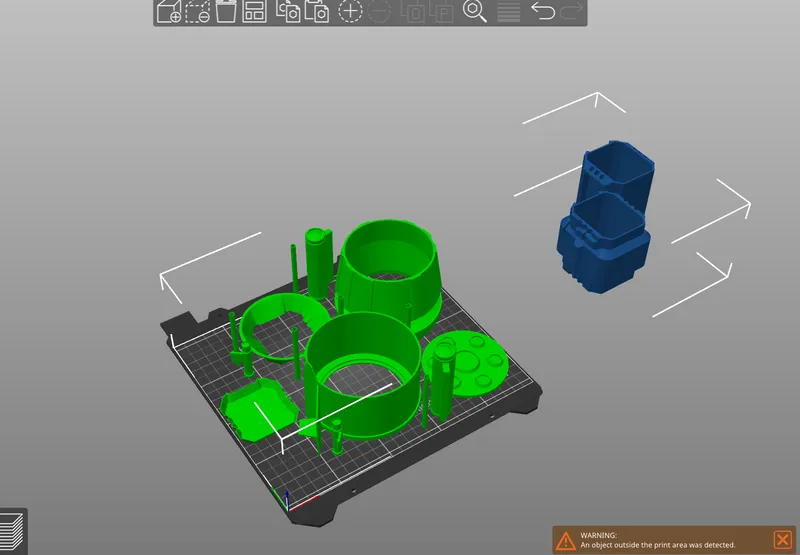

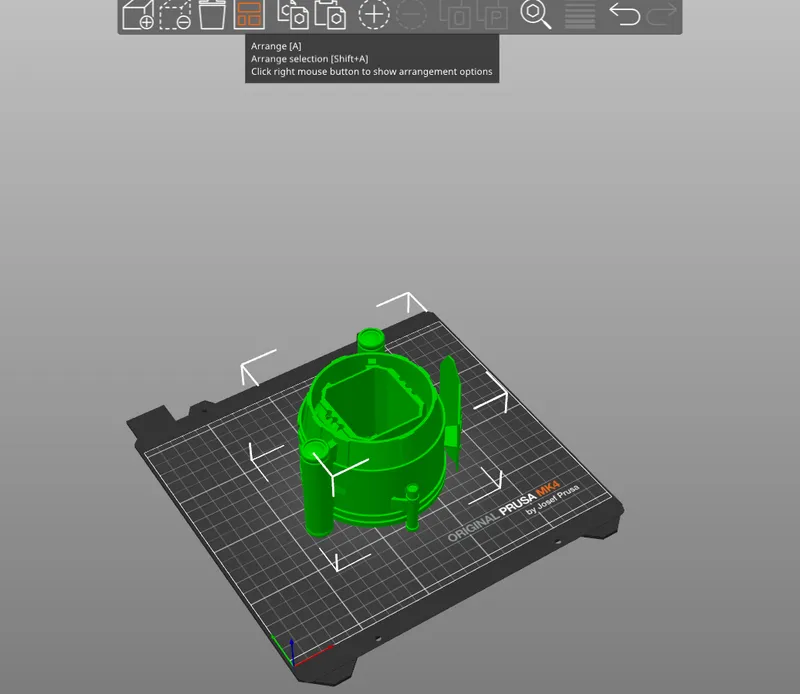

3. Select Arrange (A) and print the selected parts !

   Note: If printed on a MK4, two plates are necessary

   Important: You should reorient the parts for better printing








Assembly Video
