2kg Spoolholder Drybox
Description
PDFI originally wanted a 2kg spool version of the Spannerhands spool holder.
After editing the original stls, I noticed that due to the increased dimensions the print was sagging. Therefore I rebuilt the original design, increasing stiffness with honeycomb pattern on the inside.

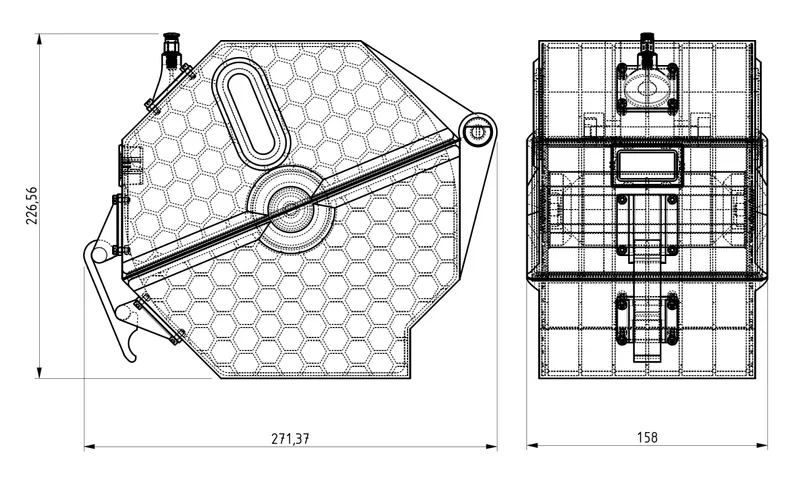

Can hold one 2kg Prusament spool
Every Prusament spool will fit perfectly, but here are the dimensions if you have other brands:
| max spool diameter: | 205mm (210mm without sensor) |
|---|---|
| max spool width: | 127mm |
| axle diameter: | 50mm |
Silica-gel pouches can stay both inside the spool core, and at the bottom of the drybox. You choose.
Cad-ready STP file is available
Original files only came as STL. Since I completely remodeled them, I can provide to you a quality cad model of the full assembly, so that it's easier for you do add this to your printers installation, and perform editings too.
3D Printed Parts

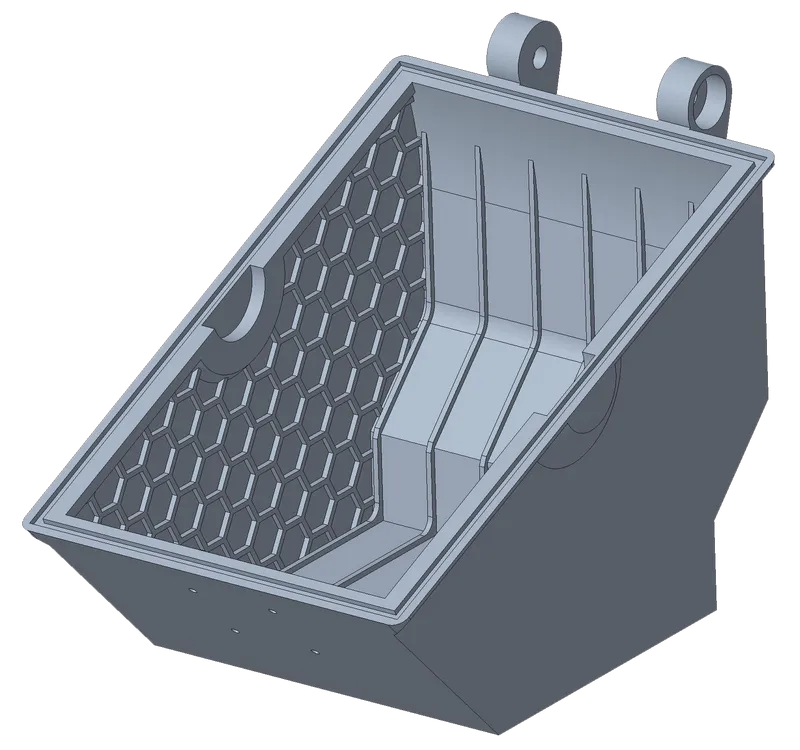

 | 1x Drybox Base |
|---|---|

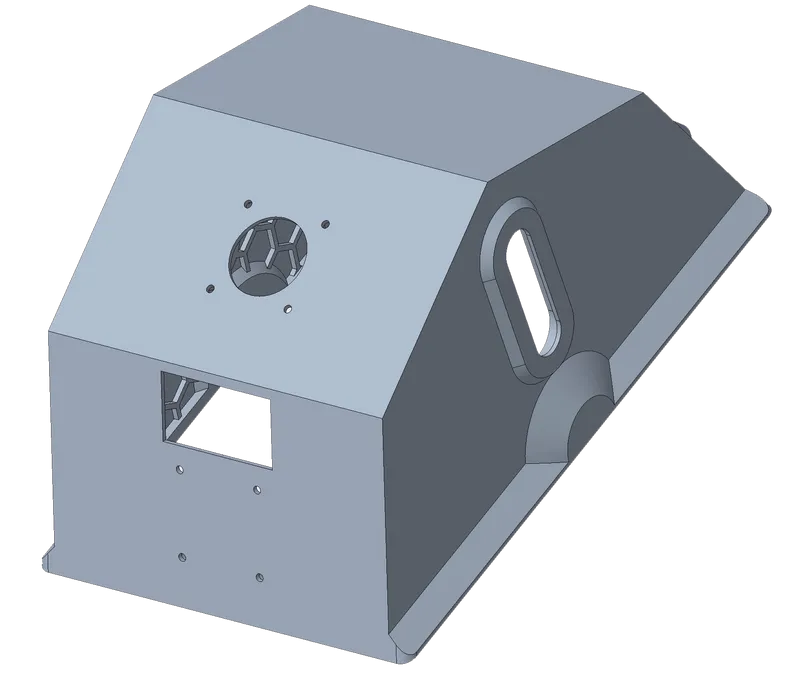

 | 1x Drybox Lid (Choose one):
|

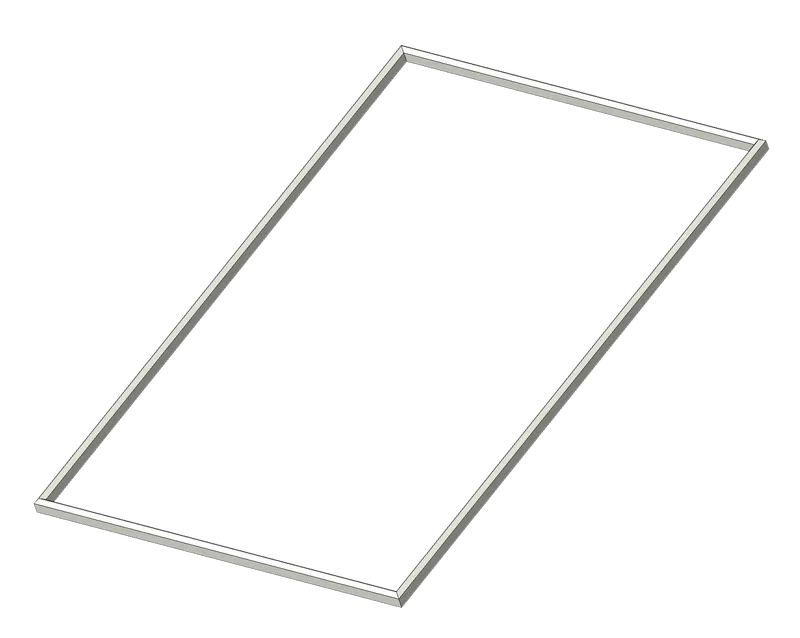

 | 1x Drybox Gasket (FLEX) |

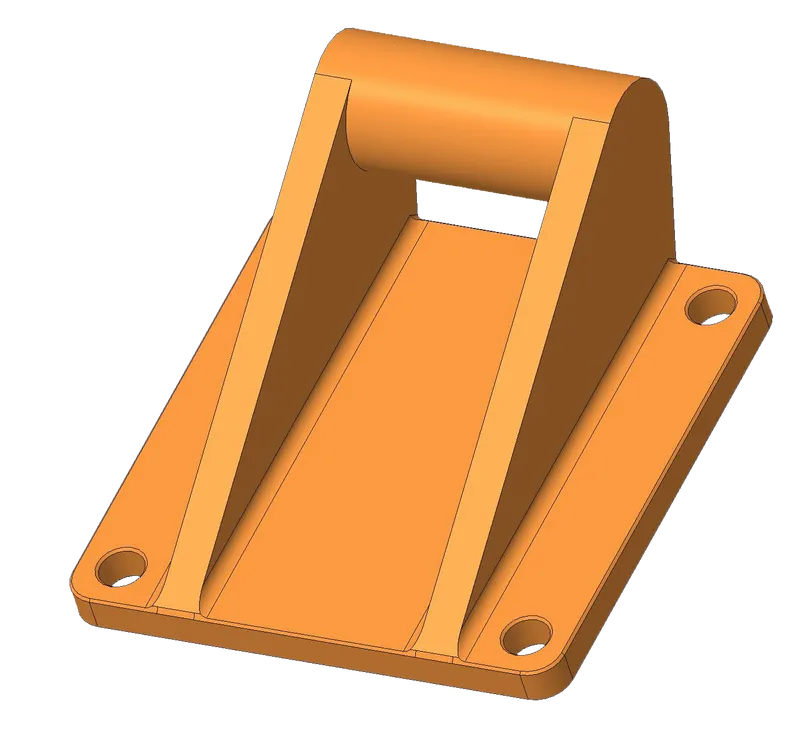

 | 2x Clasp Brackets |

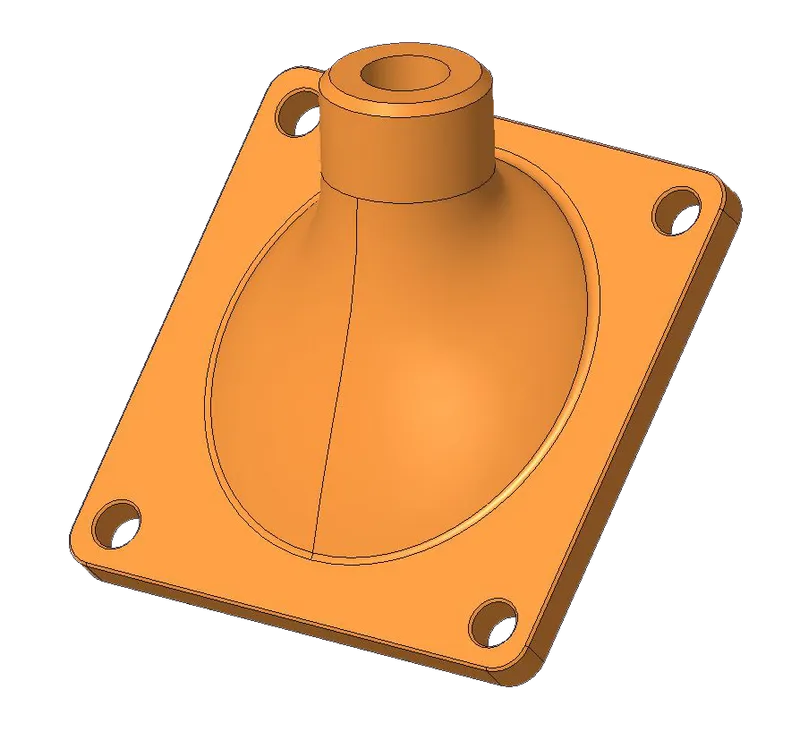

 | 1x Drybox Funnel |

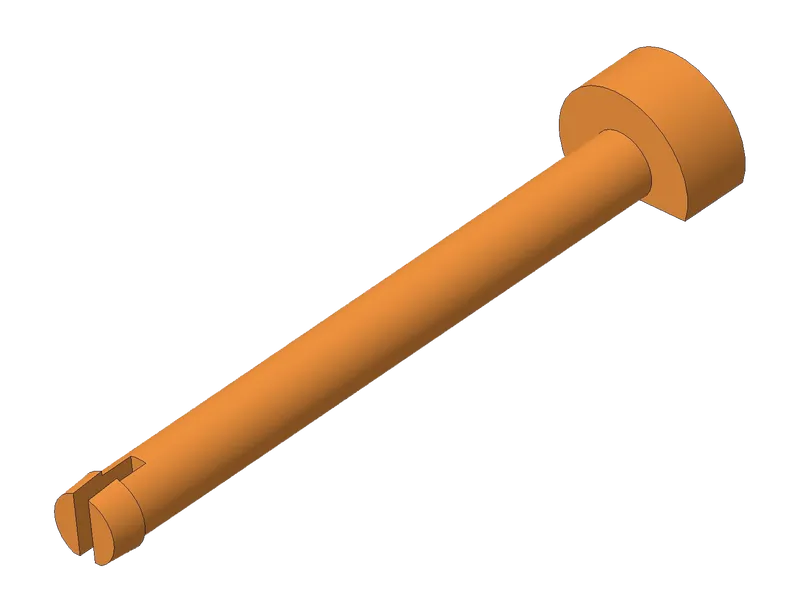

 | 1x Hinge Shaft |
 | 1x Hinge Nut |

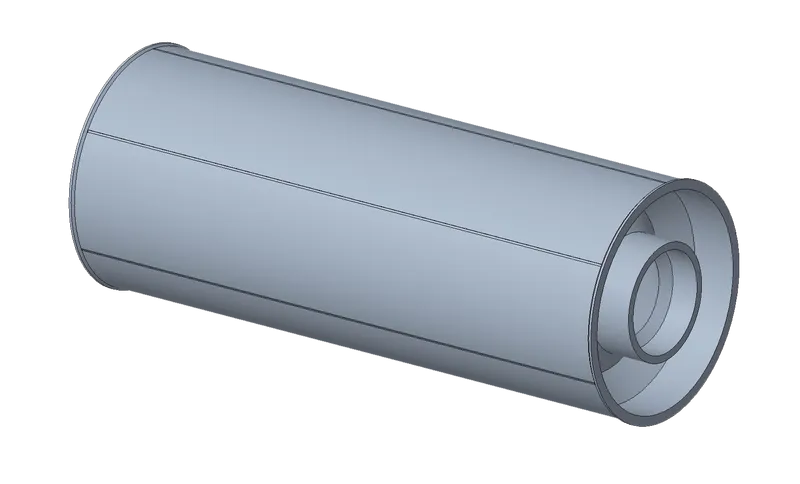

 | 1x Axle Core |

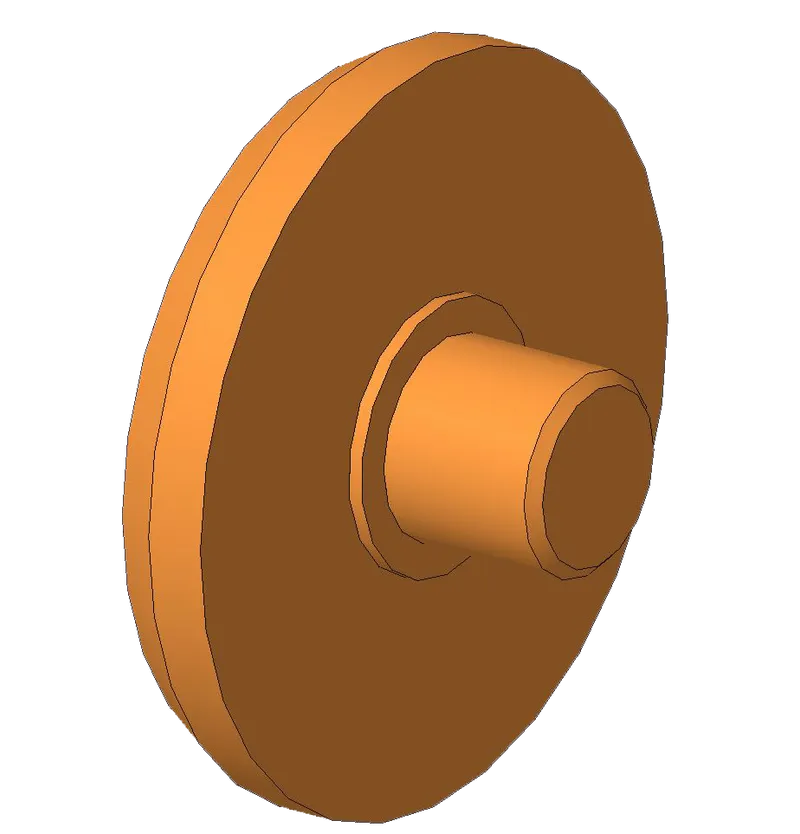

 | 2x Axle Caps |

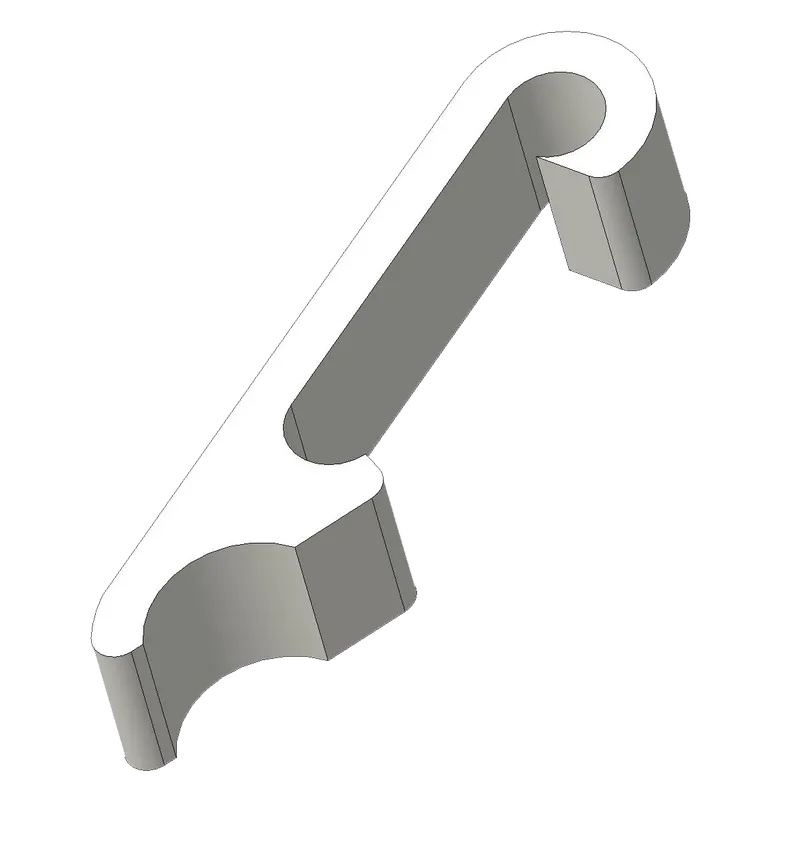

 | 1x Semiflex Clasp (FLEX) |
Off the Shelf Parts

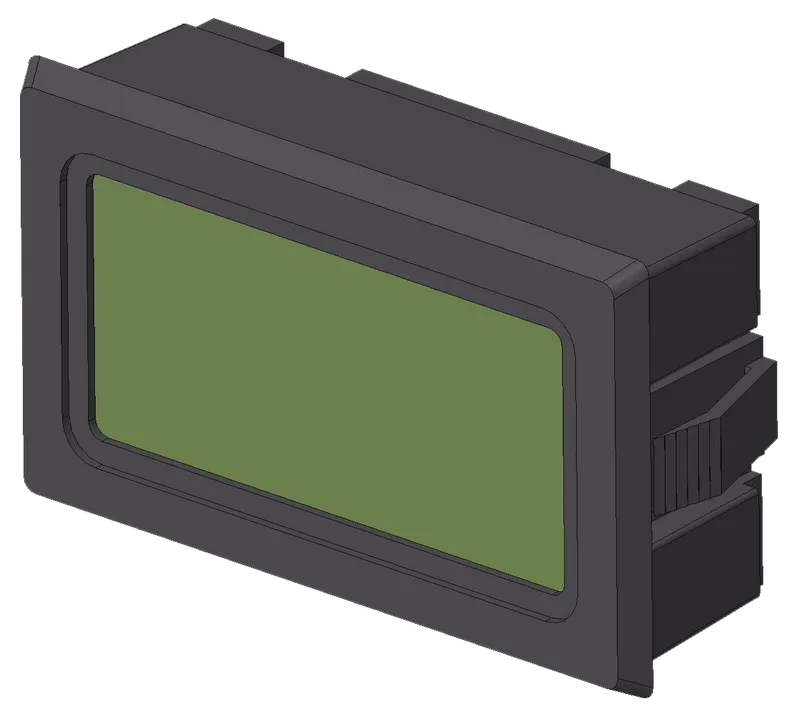

 | 1x Temperature and Humidity Sensor (Optional) https://www.prusa3d.com/product/temperature-sensor/ |
|---|---|
 | 12x m3x8 Bolts https://www.prusa3d.com/en/product/m3x8-black-60-pcs-set/ |
 | 12x M3 Nuts https://www.prusa3d.com/en/product/m3n-black-55-pcs-set/ |
 | 1x M5 Brass insert https://www.prusa3d.com/product/threaded-inserts-m5-standard-50-pcs/ (Original design wasn't supposed to have this, but I feel the connection is much stronger with it. You can still use the original funnel and forget about this.) |
 | 1x QSM - m5 https://www.prusa3d.com/product/festo-fitting-qsm-m5/ |
 | 2x 608 Bearings https://www.prusa3d.com/en/product/bearing-608-2z/ |
With plexiglass window
If you are making a windowed spool holder, you'll have to cut two of these out of plexiglass.
Any thickness between 1mm and 3mm is good. (DXF file is ready for cut)
Printing Tips
- PETG for structural parts
- TPU for flex parts
- To make you drybox more effective, dry your filaments at best to reduce porosity.
Tags
Model origin
The author remixed this model.
Differences of the remix compared to the original
- Stronger walls with honeycomb texture.
- 2kg spools version is now available.
- STP files are available.
