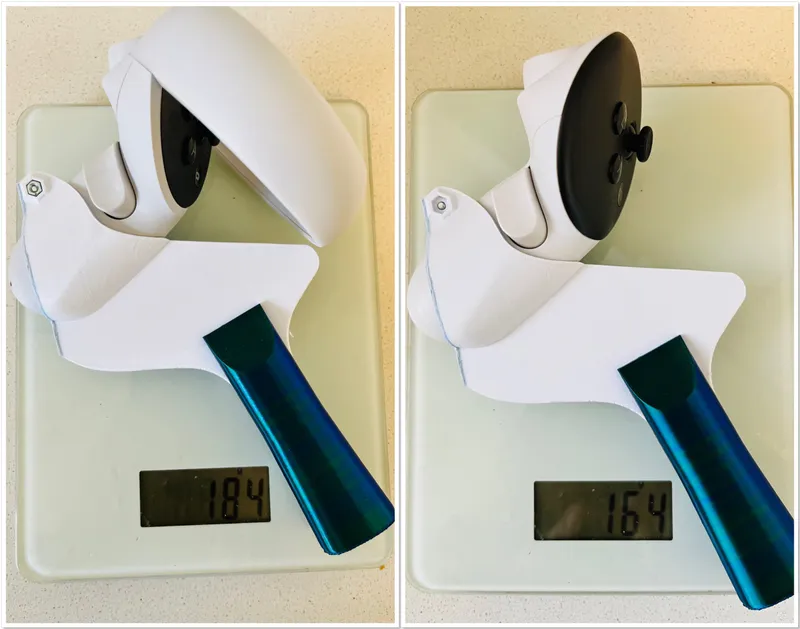

Quest 2 table tennis adapter - BonWasySX-Q2

Easy to print and assemble Quest 2 two piece adapter. Blade has thickness of 6mm so its ideal for use with rubber on both sides.

Position Cloud code for right RH and left hand LH 262.107 BonWasySX-Q2

Printing instruction:

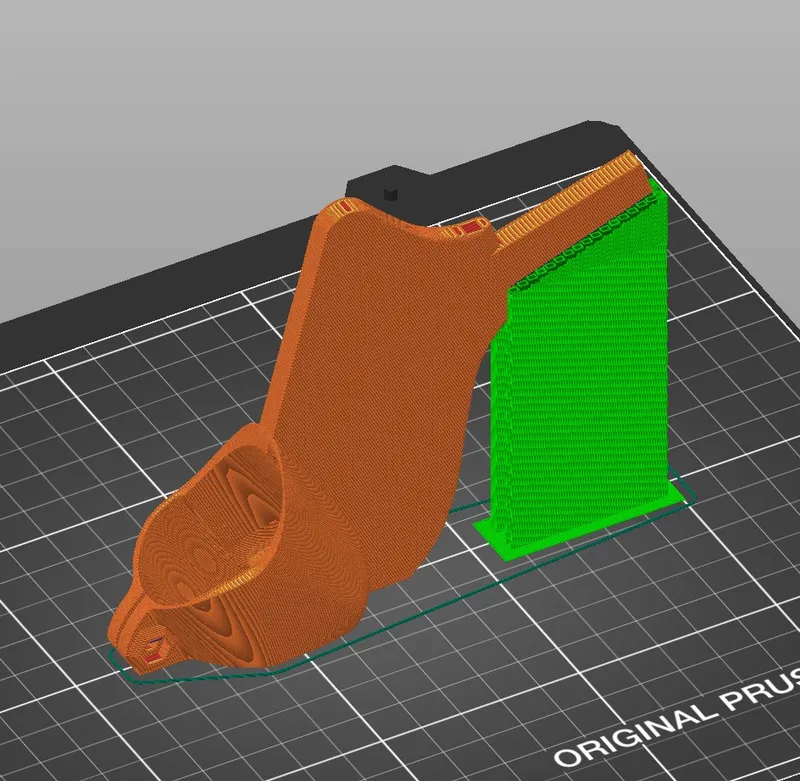

Print handle in upright position and top part with support only for wedge bit like below.

Supported surface may need light sanding if it prints rough. Use super glue to make permanent connection if needed.

Assembly instruction:

What is required to use this model:

• printed adapter (two parts)
• 1 x M3 thumb screw at least 12-14mm long DIN464 or DIN653 (regular M3 screw will also work but you will need screwdriver to install every time)
• 1 x M3 nut
• 1 x sheet of TT rubber (any used or cheapest rubber will be fine, its just for grip)
• double sided tape (I suggest super thin one like M3 467MP) or glue (superglue is fine but it will get messy if you plan swapping rubber in the future)
• optional: rubber/double sided tape cutting template (included in files)

Note: This adapter will also work with Quest3 controller with the following config: BonWasySX_Q2 v2_4Q3    262.96
