Light Mount Ender 3 V3 SE
A light mount that goes up and down with the Z axis.
60
209
3
2883
updated May 12, 2024
Description
PDFThis is a remix of a very nice comcept of a lightbar that moves with the Z axis.
If you like my model cheCk my 4010 mount for ender 3 V3 SE
Printing configurations:
- PLA
- 0.2 layer height
- 10% infill
- 3 perimeters
- support organic on build plate only, but you may block some spots and enforced others (see images bellow)
You can also use this image for printing orientaition.
Bill of material:
- 2x led strips of 20cm each
- 4x m3*28 (I used 2 and was great)
- 1x LM2596
- on/off switch
- wires
I conect the original power suply to the DC-DC conversor so I can get 12V for the LED strips.

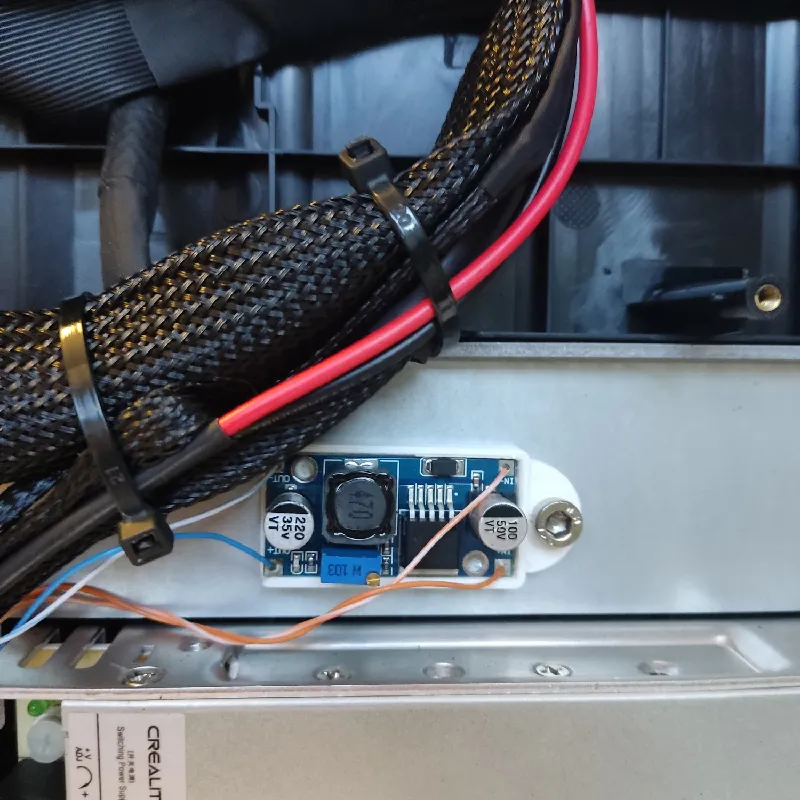

The LM2596 is cased inside the printer using the original screw, as the image bellow. (The original LM2596 mount is here)
The wiring passes through the holes at spine cable chain
Tags
Model origin
The author remixed this model.
Differences of the remix compared to the original
The same concept, I just make it looks better.
