Iron Giant - Individual Parts

Eu tentei 3x e não consigo. Sempre enrola o filamento ou dá que a impressão esta ruim na kinha K2. Será que preciso de alguma configuração específica? Estou usando v2 3fm

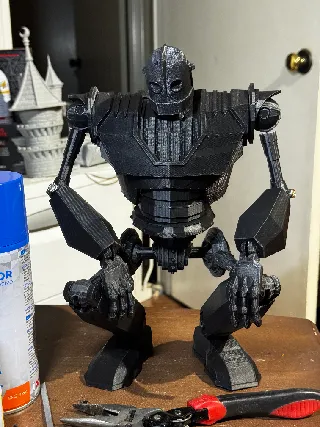

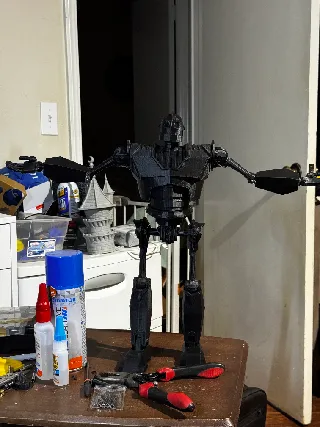

Printed at 500% and used M5 screws instead of the printed pins. (edited)

Printed at 300% as well as a gift to my nephew. My sister ended up liking it so much she's terrified to let him play with it. lol

Used normal nut and bolt to connect the elbows since it fit the theme well enough.

Connecting the arm to shoulder was tricky. After trying a few different solutions, I ended up filling the holes where you would use a piece of filament on the 100% size with plastic and used a threaded heat insert on the end of the arm, then used soldering tool to press the head of the matching bolt into the shoulder part. I added a washer and nut between arm and shoulder to allow tightening it at any angle.

I also modified the sizing of some of the pins, so they formed a tighter fit, allowing for better posing.

Hope this is useful to others.

Are there instructions for assembly?

Dream came true, thanks to the author of the model

Thanks a lot, printed at 300%

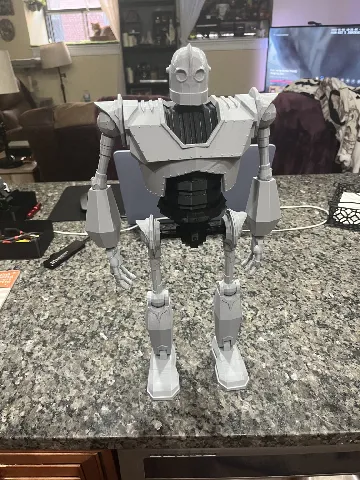

Made at 300% came out great.

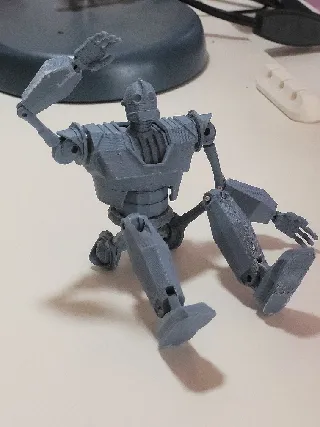

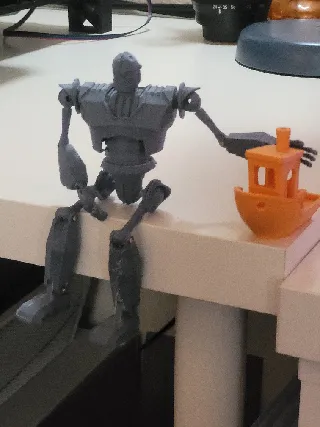

i scaled our friend down just a little to fit on my buildplate, i think it came out pretty well, round toothpicks work great in the joints. i did have to file and sand before gluing some bits but still a fun and easy model!

post makes so that i may see how good it came out! :)

Why don't you upload the files as 3mf so we can separate them.

Abrí el archivo pero es demasiado pequeño, no sé si haya problemas cuando le escale.
