Bahtinov Mask - Nikon 70-200mm f2.8 VR

Here is a Bahtinov Mask star focusing aid that clips onto the front of your Nikon telephoto lens.
7
64
0
349
updated February 28, 2024

Description

PDF

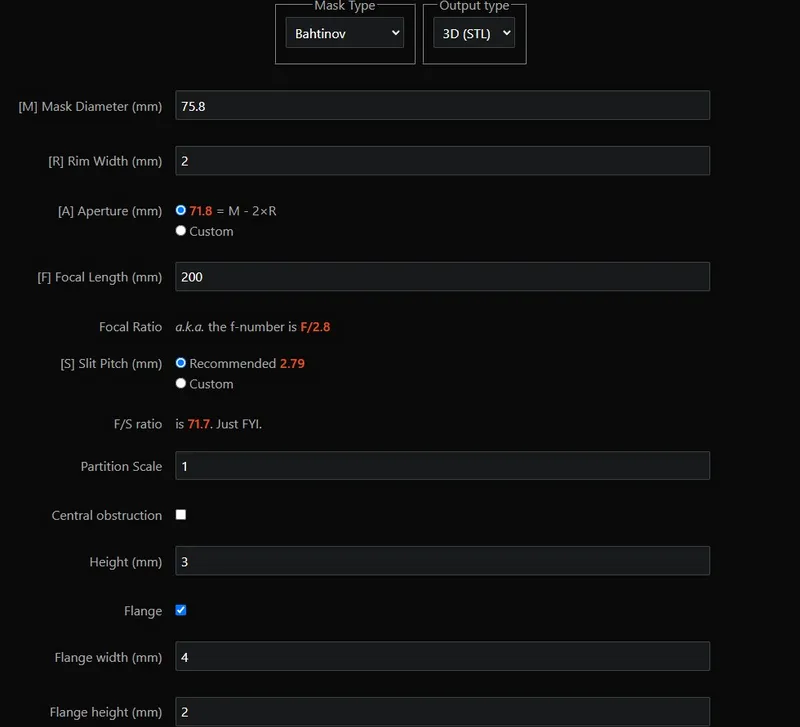

This Bahtinov mask is used to help focus your lens on the stars precisely. I used a website called https://skeye.rocks/tools/mask/ to generate the mask STL and then added my mounting geometry. This mask uses the existing lens hood retention features to clip onto the front of the lens.

Tags



Model origin

The author remixed this model.

Differences of the remix compared to the original

I used the Bahtinov mask generator (https://skeye.rocks/tools/mask/) to make the functional mask geometry. I then used SOLIDWORKS to add on geometry that would allow this part to clip to the front of the lens using the existing lens hood retention features.
