Anycubic Kobra 2 Neo End Stop Fix

This is to fix the end stop issue for the Kobra 2 Neo when changing for the quick change fan cover.
68
725
14
3273
updated February 3, 2025

Description

PDF

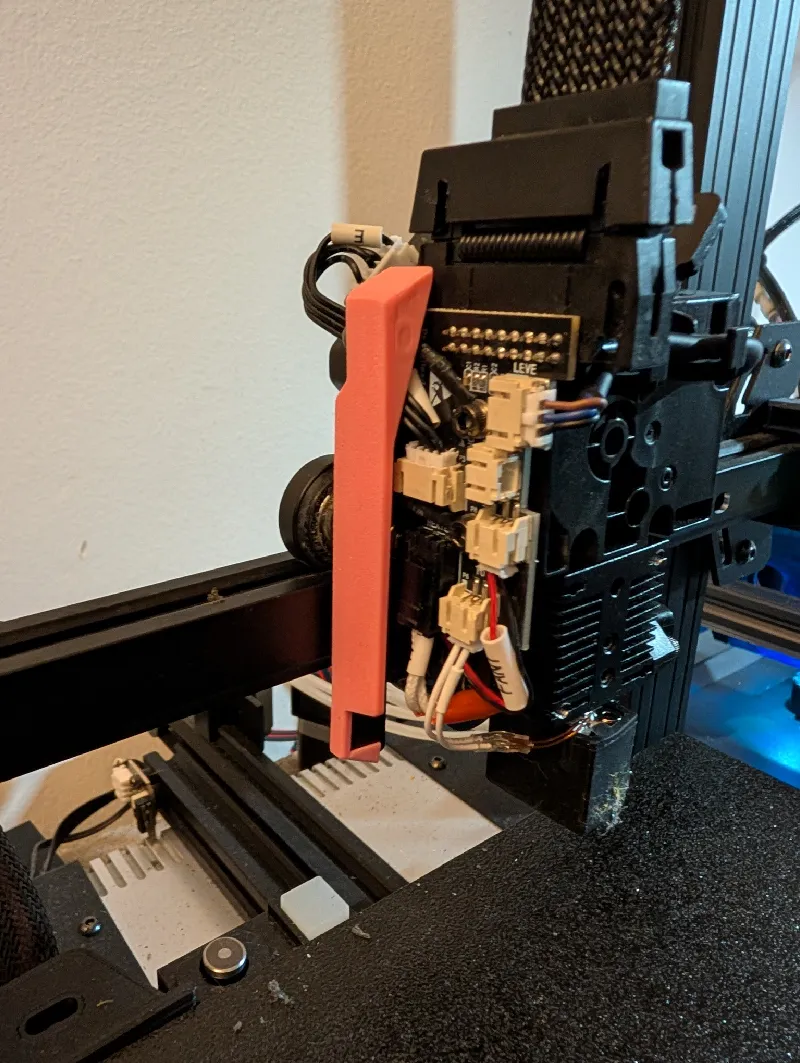

This variation is for the Kobra 2 Neo.  This fixes the issue where you no longer have the tool head case to hit the end stop.  This is for compatibility with https://www.printables.com/model/724096-anycubic-kobra-2-upgrade-kobra-2-plus-kobra-2-pro-

I used a 3mm screw from the original tool heat cover to attach this.

Tags



Model origin

The author remixed this model.

Differences of the remix compared to the original

V2.7 - New Version!

As it was pointed out to me.  The bottom was we will say problematic.

This version is made from scratch.

I have added a channel to hug the bracket for the tool head, and give it more support..  Now the bottom will not simply just snap off.

The M3 screw hole has a very tight tolerance.  In the worst case  you may need to put the end of a 2.5 hex key in and twist a couple times to widen the start of the hole.





V1 - The V1 Model is now Deprecated.

This is slimed down to the needed area.  I also adjusted the screw hole for a 3mm screw to cut its own threads.
