Gridfinity - Aoyue-968A Accessoires Holder

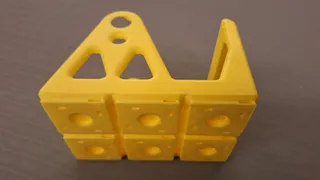

This Gridfinity 2x3 holder for the soldering tips and hot air nozzles of the Aoyue-968A solderingstation has four spare holes for additional soldering tips. It offers space for all four hot air nozzles. It was designed with the Fusion360 plugin and has holes for 6x2mm magnets on the bottom that has to be glued. If you change the parameter for this holes inside the Fusion360 file, you can also adjust them to press fit and to your printers tolerance.

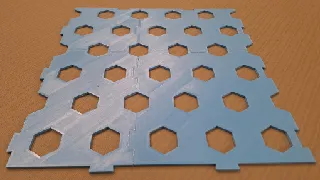

I included a version for the refined baseplate with improved magnet holders and screw holes.

 I printed it on a Creality CR10 V2 with a 0.4mm nozzle, 0.2mm resolution and 20% infill in about 8.5 hours. I used PLA and of course it only organizes COLD tips and nozzles.
