Portable LED Flashlight

Portable Flashlight

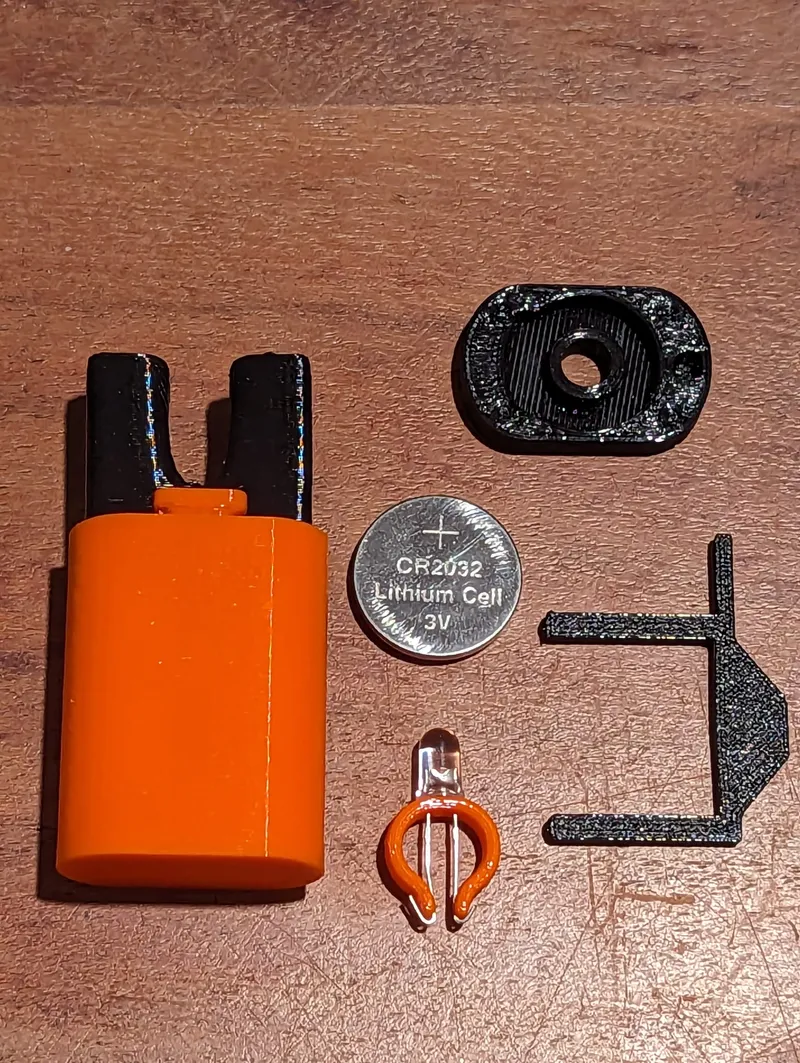

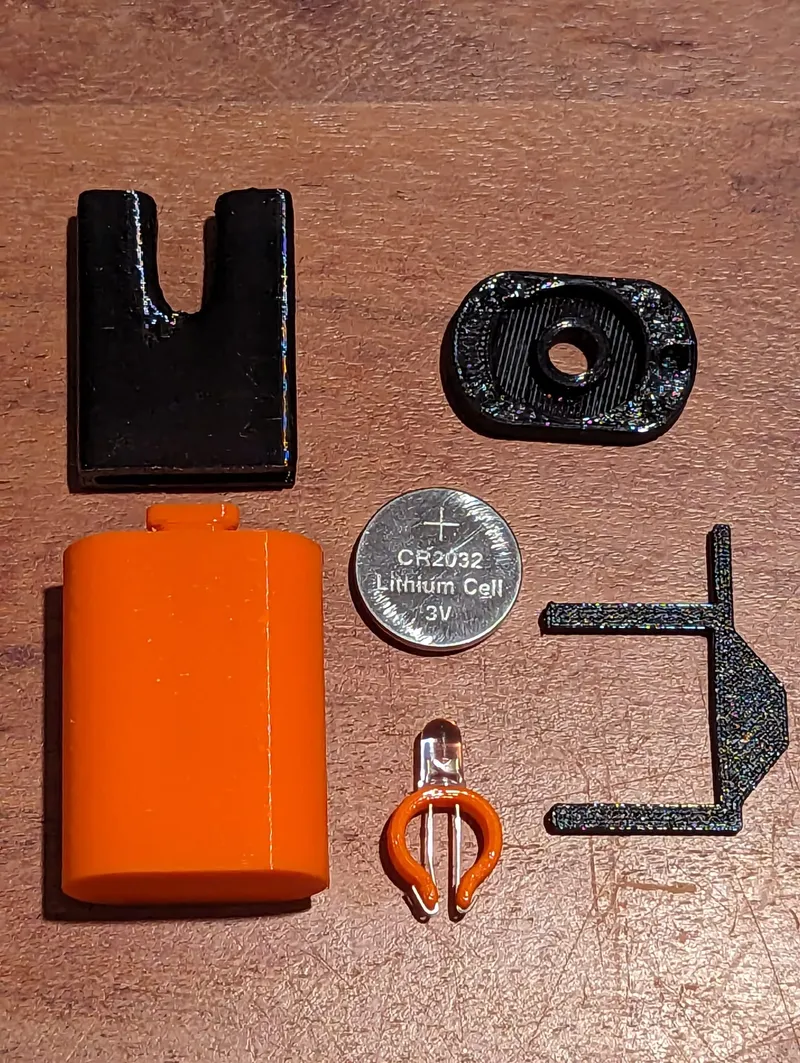

It only takes a CR2032 battery and a LED to build this portable flashlight. The LED is attached to the portable-flashlight-led-clip which makes contact with the battery when the portable-flashlight-slider is moved upwards.

Works fine with both PLA and PETG

Assembly instructions

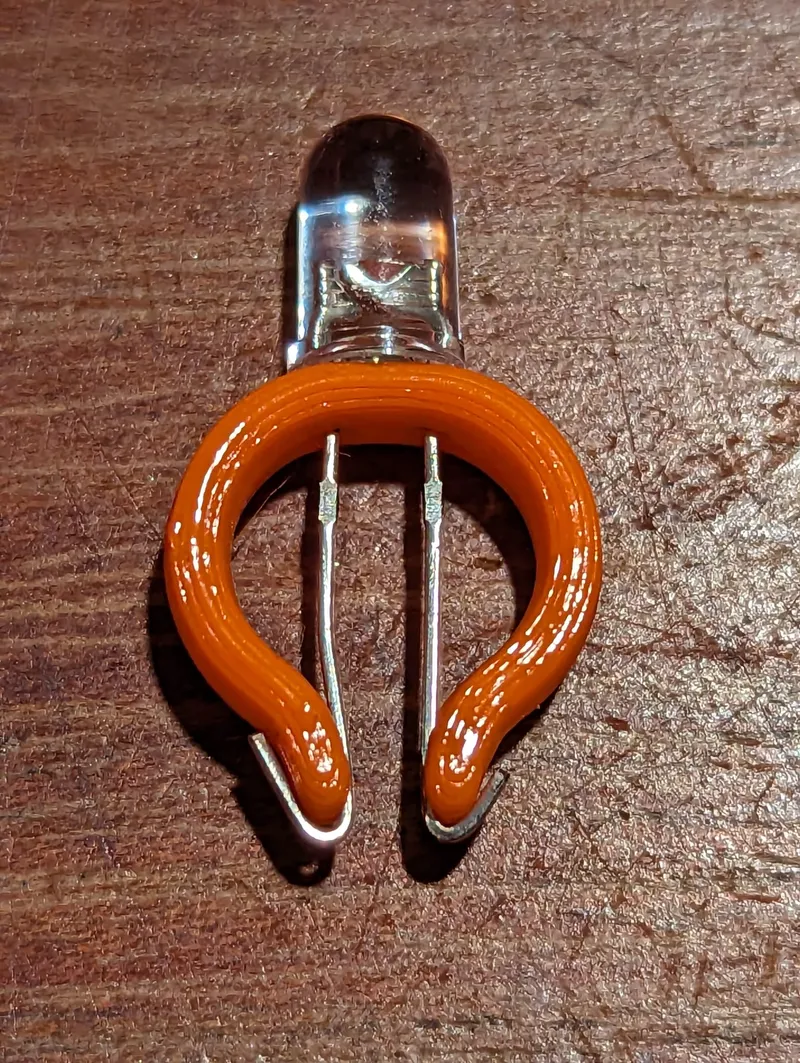

Make sure to slightly bend the portable-flashlight-led-clip outwards so that it looks just like the following picture:

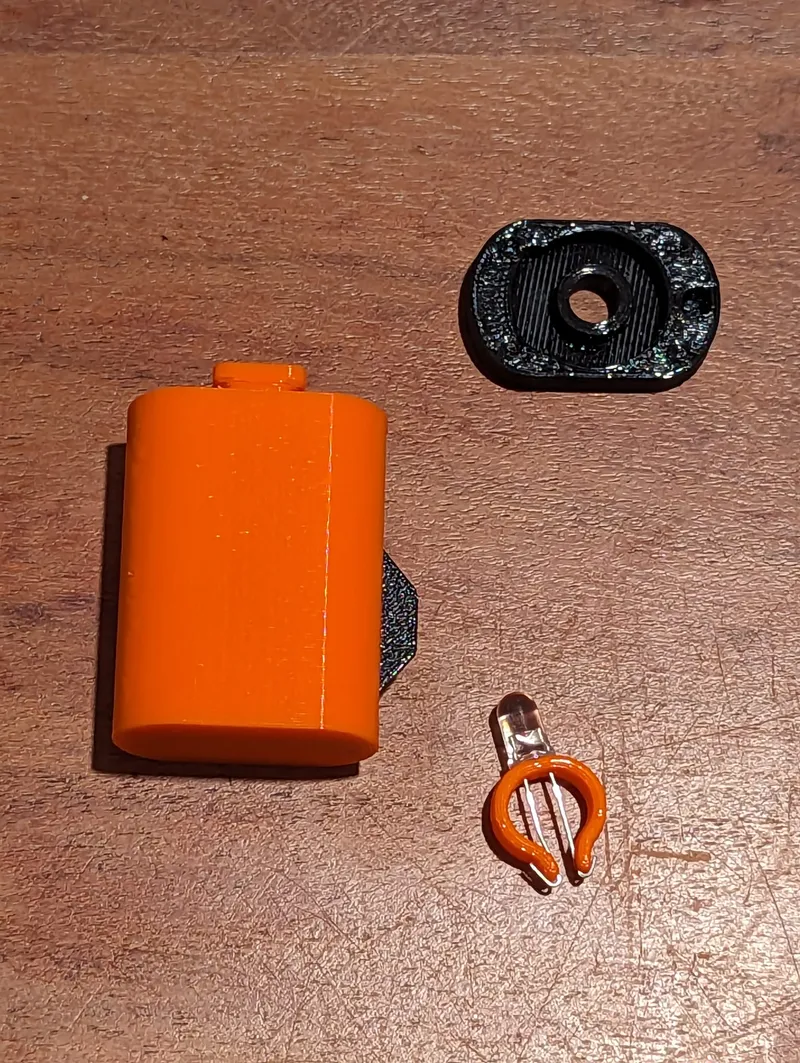

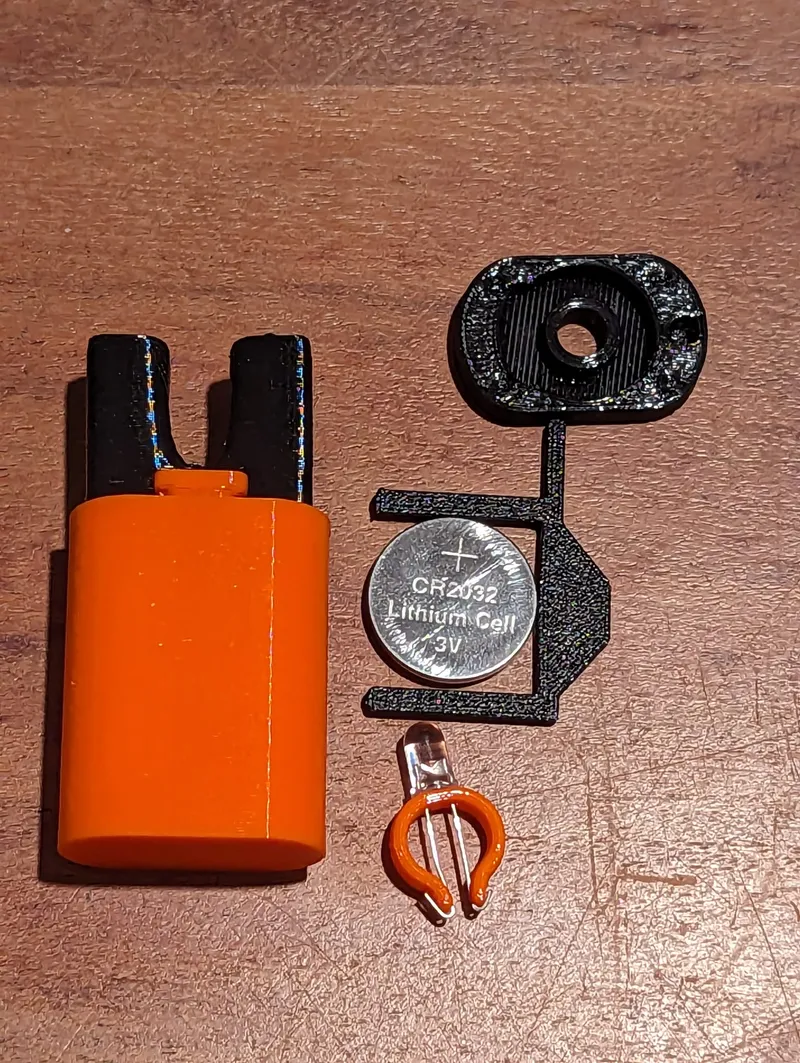

Once the LED is attached to the clip, the portable-flashlight-battery-holder can be partially inserted into the portable-flashlight-base

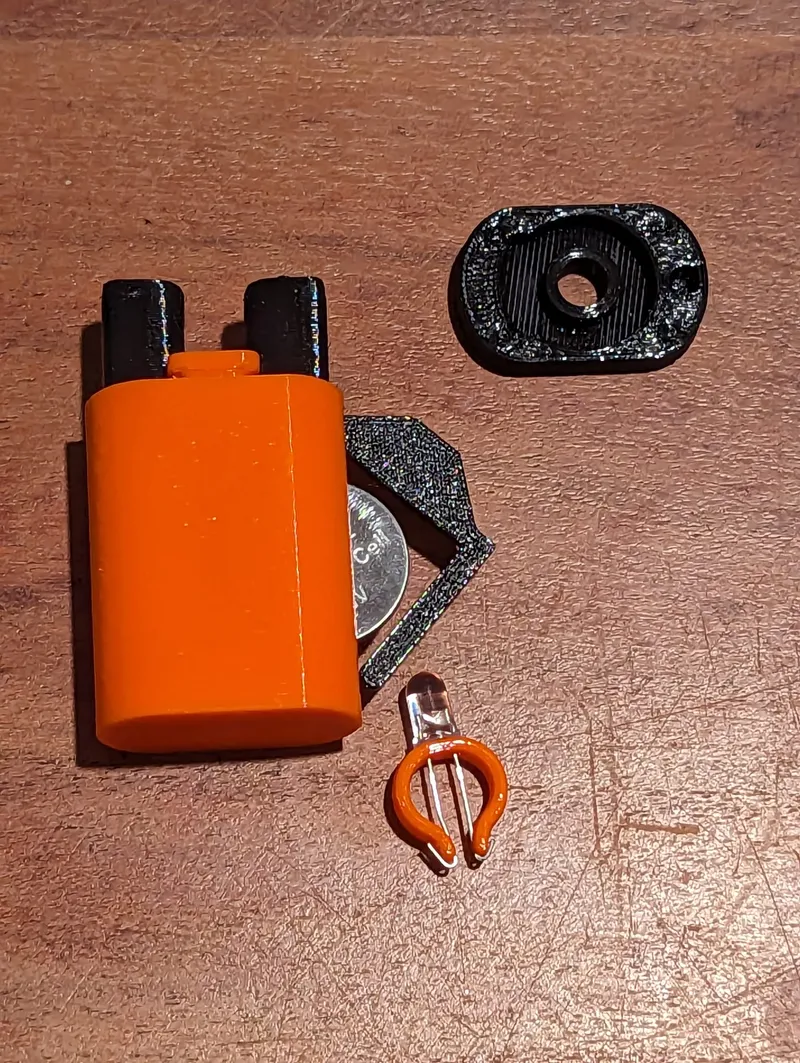

The portable-flashlight-slider should now be inserted together with the battery into the battery holder

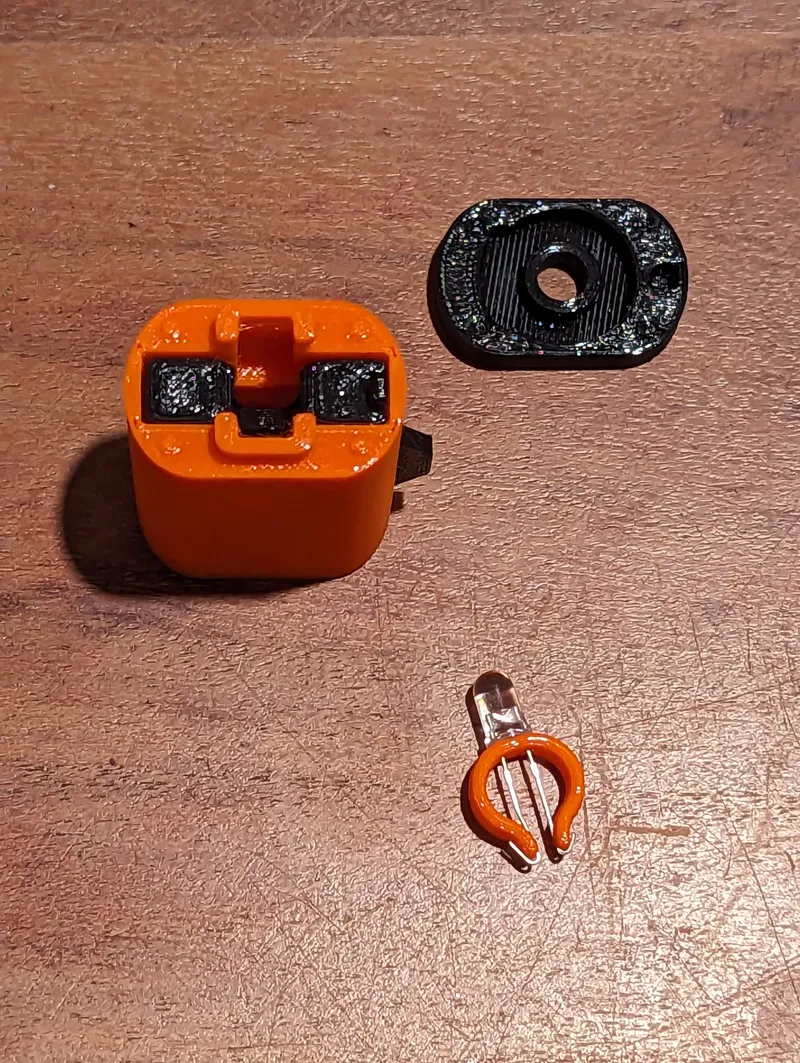

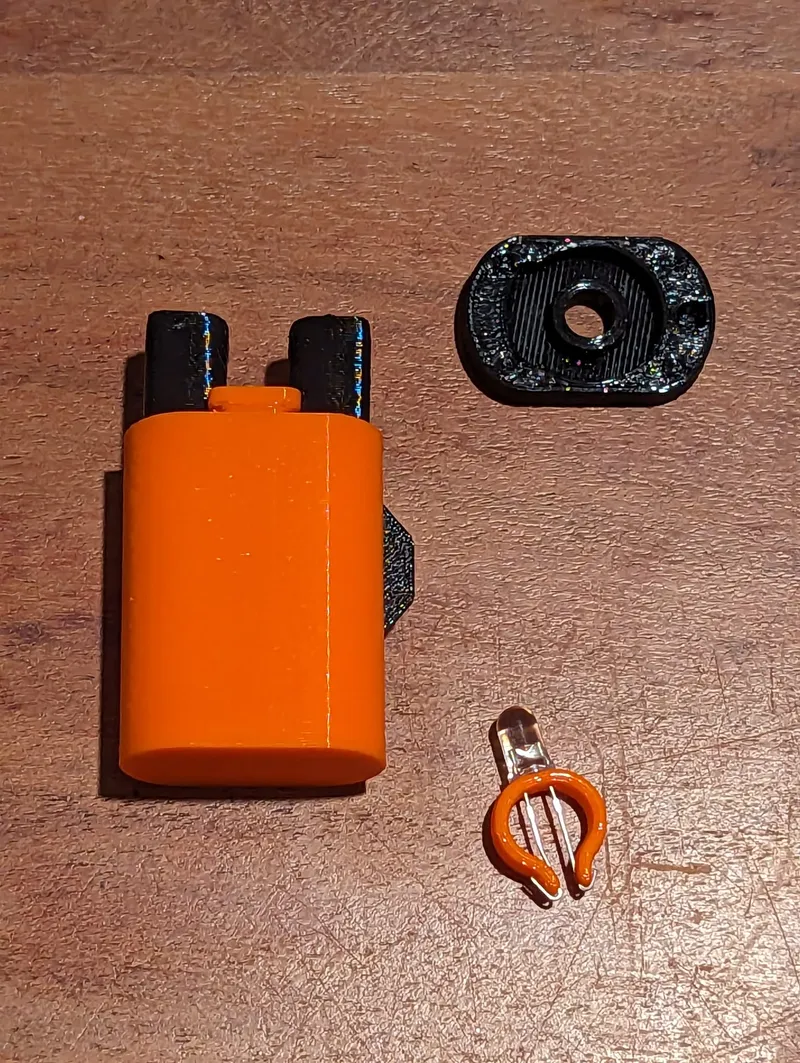

The battery holder can now be completely inserted into the portable-flashlight-base

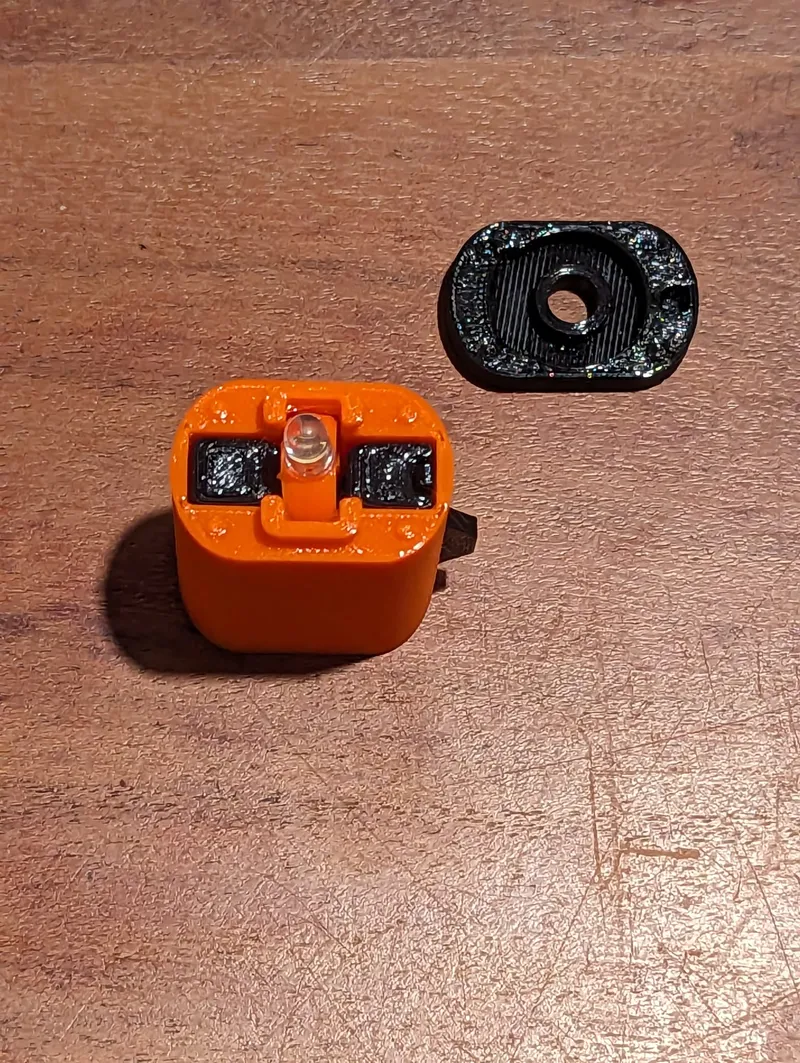

The LED can now be inserted into the portable-flashlight-base

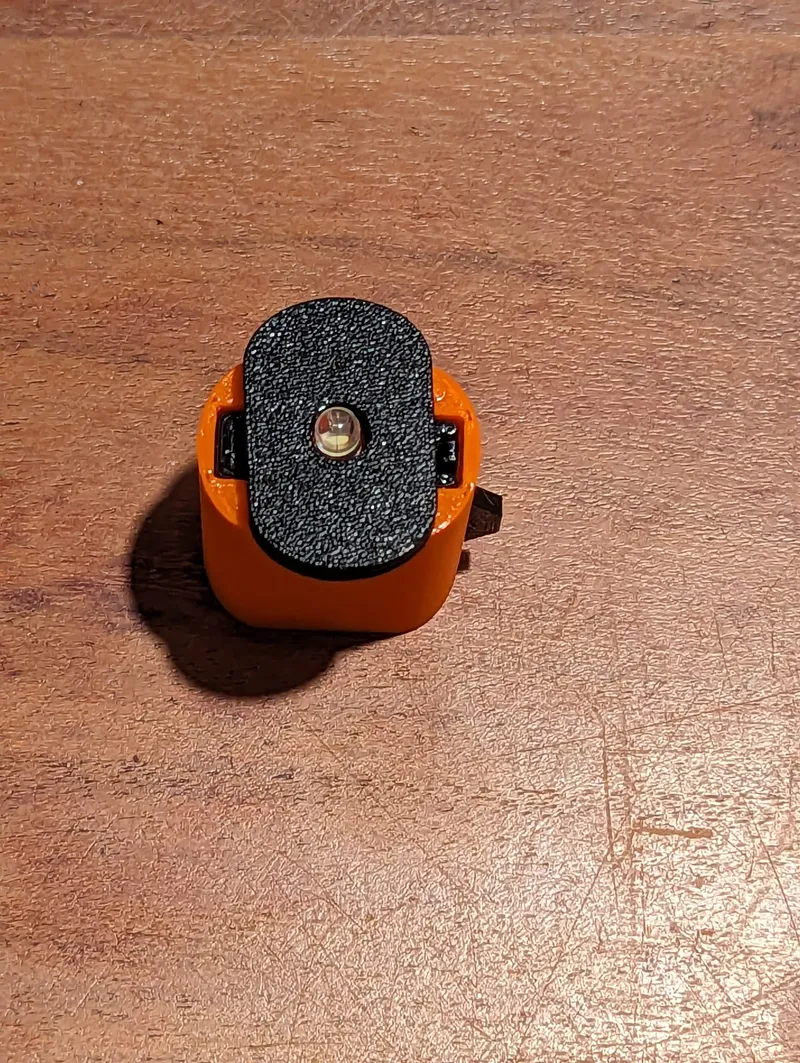

The small hole on the portable-flashlight-lid must be facing the slider and must be twisted in order to stay in place

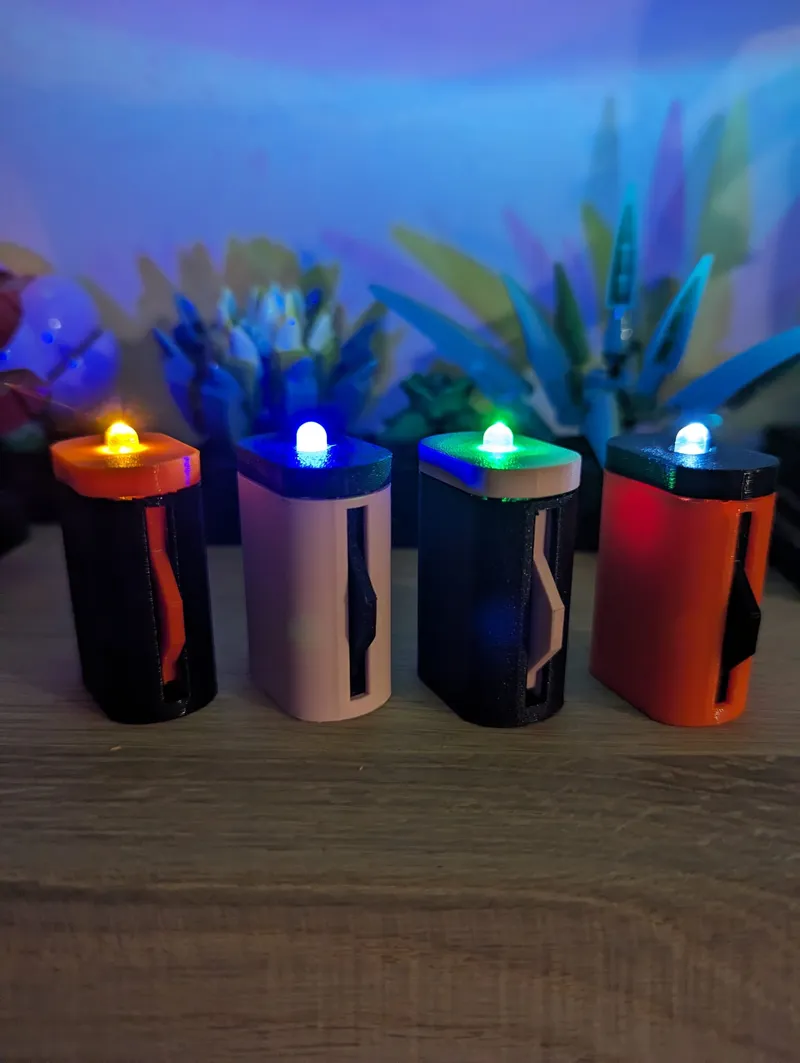

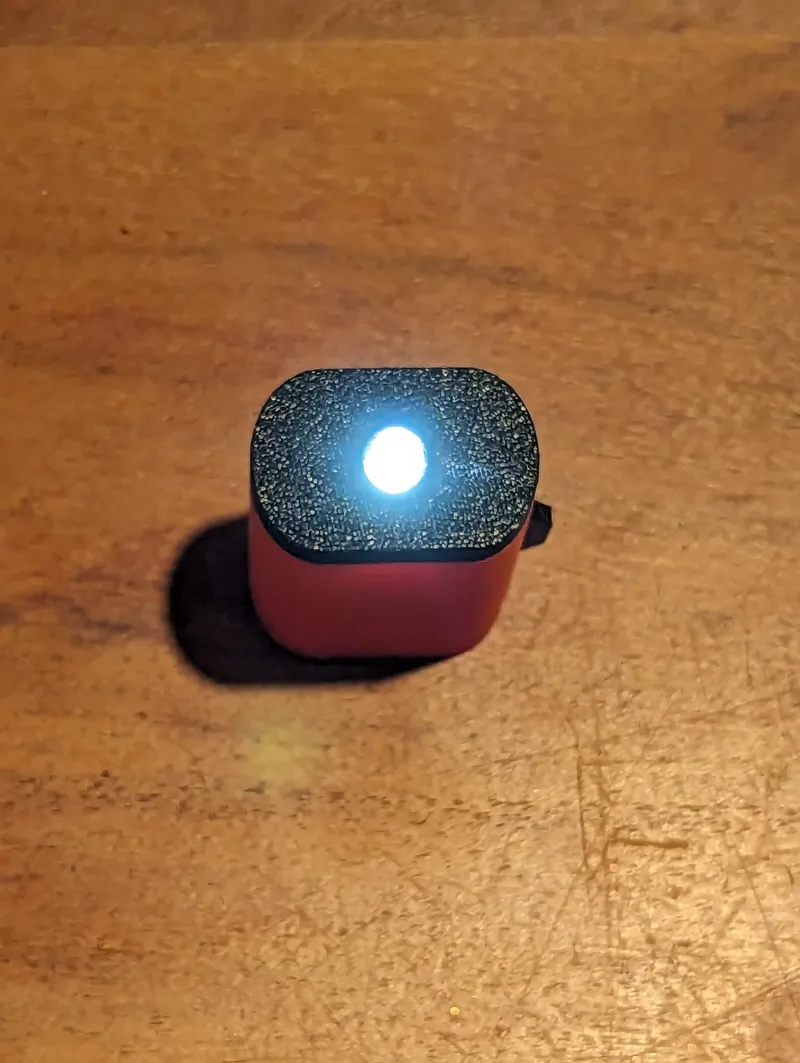

You should now have a working portable flashlight. I would really appreciate to see your print and some constructive feedback.
