To assemble this 608 bearing, you need the following parts:

1x innerring
1x outerring
1x cage
1x assembly helper

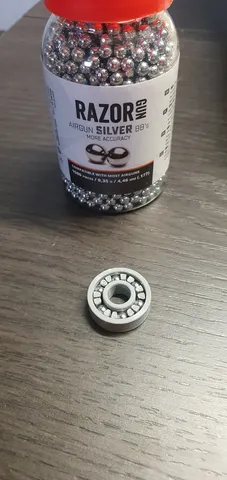

6x steel balls diameter 4,5mm

For the printing settings, I recommend setting the seam position to random. This will prevent a very pronounced seam in the ball track, which would impair the roundness of the bearing.

Assembly:

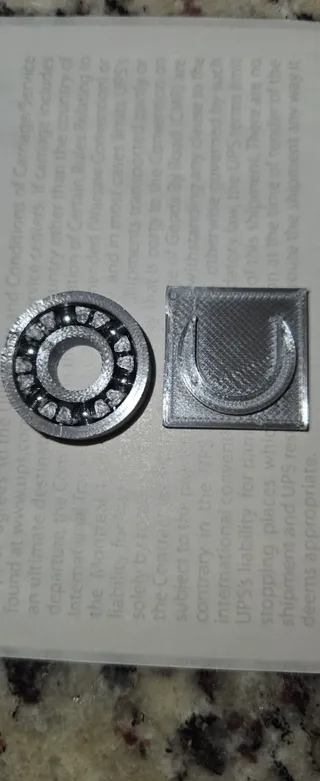

Place the outer ring on the assembly helper and insert 6 steel balls. The balls should lie on the small shoulder in order to be pre-positioned in in the center of the ball track.

Carefully insert the inner ring without moving the balls.
The assembly helper should be held slightly in place.

The balls must the be carefully distributed evenly with a small screwdriver and then the cage only needs to be clipped in.
The ball bearing is the successfully assembled.

","category":{"id":"51","path":[{"id":"48","name":"Hobby & Makers","nameEn":"Hobby & Makers","description":"Are you a maker? Everyone is, be a printer. Upgrade your home workshop and combine different materials and methods of crafting including 3D printing.","__typename":"CategoryType"},{"id":"51","name":"Mechanical Parts","nameEn":"Mechanical Parts","description":"Craft multi-purpose components with integrated assembly designs like nuts and screws, mechanically articulated arm, pulley systems, engine, and vice parts.","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2024-02-24T19:17:16.665562+00:00","firstPublish":"2024-02-24T19:17:16.651376+00:00","datePublished":"2024-02-24T19:17:16.653585+00:00","dateCreatedThingiverse":null,"nsfw":false,"aiGenerated":false,"politicalContent":false,"summary":"This is a 608 ball bearing. The special feature is that cal. 4,5mm steel balls are used.","likesCount":57,"makesCount":5,"liked":null,"printDuration":null,"numPieces":0,"weight":null,"nozzleDiameters":null,"usedMaterial":null,"layerHeights":null,"mmu":false,"materials":[],"dateFeatured":null,"downloadCount":354,"displayCount":5509,"filesCount":9,"privateCollectionsCount":50,"publicCollectionsCount":49,"pdfFilePath":"media/prints/779273/pdfs/779273-608-bearing-73ae2438-2e8f-4b4e-94b3-b2fb0c8e597a.pdf","commentCount":6,"userGcodeCount":0,"remixCount":0,"canBeRated":false,"addMakePermission":null,"printer":null,"image":{"id":"2823359","filePath":"media/prints/779273/images/6053356_d6e47824-4cba-41b0-896e-432b0cbbe694_210d4b15-fe55-480e-8441-edc36c33cde4/screenshot-2024-02-24-194345.png","rotation":0,"imageHash":"7QcKBwLn54eIeHd/jHR2+Dh3WX33BHcC","imageWidth":621,"imageHeight":641,"__typename":"PrintImageType"},"images":[{"id":"2823359","filePath":"media/prints/779273/images/6053356_d6e47824-4cba-41b0-896e-432b0cbbe694_210d4b15-fe55-480e-8441-edc36c33cde4/screenshot-2024-02-24-194345.png","rotation":0,"imageHash":"7QcKBwLn54eIeHd/jHR2+Dh3WX33BHcC","imageWidth":621,"imageHeight":641,"__typename":"PrintImageType"}],"imagesCount":1,"tags":[{"name":"ball","id":"521","__typename":"TagType"},{"name":"steel","id":"527","__typename":"TagType"},{"name":"bearing","id":"2380","__typename":"TagType"},{"name":"608","id":"2386","__typename":"TagType"},{"name":"608bearing","id":"3112","__typename":"TagType"},{"name":"608zz","id":"10165","__typename":"TagType"},{"name":"kugellager","id":"25755","__typename":"TagType"},{"name":"stahl","id":"153498","__typename":"TagType"}],"thingiverseLink":null,"filesType":null,"previewFile":{"id":"3319839","filePreviewPath":"media/prints/779273/stls/6053355_7d568f98-5152-463e-a70d-e24f201c2767_0815df26-3ffc-4f1e-880d-f7cf04b2ea8d/assembly-helper_preview.png","__typename":"STLType"},"license":{"id":"2","disallowRemixing":false,"__typename":"LicenseType"},"remixParents":[],"remixDescription":null,"__typename":"PrintType","eligibleForNomination":false,"priceBeforeSale":null,"user":{"id":"1285090","handle":"drho1337","verified":false,"dateVerified":null,"publicUsername":"drho1337","avatarFilePath":"media/auth/avatars/64/64c472b1-46dc-4e34-953b-567059801f05.jpeg","badgesProfileLevel":{"profileLevel":15,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isFollowedByMe":false,"isHiddenForMe":false,"canBeFollowed":true,"billingAccountType":"personal","lowestTierPrice":null,"highlightedModels":{"models":[{"id":"807769","name":"Helicopter Kit Card","slug":"helicopter-kit-card","ratingAvg":"5.0000000000","likesCount":312,"liked":null,"datePublished":"2024-03-17T17:45:16.335732+00:00","dateFeatured":null,"firstPublish":"2024-03-16T17:36:09.601070+00:00","downloadCount":1427,"mmu":false,"category":{"id":"38","path":[{"id":"30","name":"Toys & Games","nameEn":"Toys & Games","__typename":"CategoryType"},{"id":"38","name":"Vehicles","nameEn":"Vehicles","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2024-03-17T17:45:16.353683+00:00","image":{"id":"2917921","filePath":"media/prints/807769/images/6258297_94583649-51f0-4d19-ae5f-07069f3f0ad2_4f3cc241-a266-405f-aad8-71a03e9185b0/img_4369.jpeg","rotation":0,"imageHash":"WwgKHYS8hqZgSWeJd2eJndCBCD2Z","imageWidth":4032,"imageHeight":3024,"__typename":"PrintImageType"},"imagesCount":3,"nsfw":false,"aiGenerated":false,"politicalContent":false,"club":false,"price":null,"priceBeforeSale":null,"eligibleForNomination":false,"user":{"id":"1285090","handle":"drho1337","verified":false,"dateVerified":null,"publicUsername":"drho1337","avatarFilePath":"media/auth/avatars/64/64c472b1-46dc-4e34-953b-567059801f05.jpeg","badgesProfileLevel":{"profileLevel":15,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isHiddenForMe":false},"latestContestResult":null,"__typename":"PrintType"},{"id":"827657","name":"Kart Kit Card","slug":"kart-kit-card","ratingAvg":"5.0000000000","likesCount":278,"liked":null,"datePublished":"2024-03-31T23:31:38.066916+00:00","dateFeatured":null,"firstPublish":"2024-03-31T23:11:25.673044+00:00","downloadCount":1422,"mmu":false,"category":{"id":"38","path":[{"id":"30","name":"Toys & Games","nameEn":"Toys & Games","__typename":"CategoryType"},{"id":"38","name":"Vehicles","nameEn":"Vehicles","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2024-03-31T23:31:38.087466+00:00","image":{"id":"2976560","filePath":"media/prints/827657/images/6384281_52abbdc9-fd26-42fa-8f15-6d5a5a23e9d9_1168892f-528b-415a-8df7-998908e1498c/img_4585.jpg","rotation":0,"imageHash":"2xgKHYbZhmcga3d5ineZmtBTDEy3","imageWidth":4032,"imageHeight":3024,"__typename":"PrintImageType"},"imagesCount":3,"nsfw":false,"aiGenerated":false,"politicalContent":false,"club":false,"price":null,"priceBeforeSale":null,"eligibleForNomination":false,"user":{"id":"1285090","handle":"drho1337","verified":false,"dateVerified":null,"publicUsername":"drho1337","avatarFilePath":"media/auth/avatars/64/64c472b1-46dc-4e34-953b-567059801f05.jpeg","badgesProfileLevel":{"profileLevel":15,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isHiddenForMe":false},"latestContestResult":null,"__typename":"PrintType"},{"id":"595952","name":"Zelda Key Holder","slug":"zelda-key-holder","ratingAvg":"5.0000000000","likesCount":151,"liked":null,"datePublished":"2023-09-27T18:32:44.025620+00:00","dateFeatured":null,"firstPublish":"2023-09-27T18:32:44.022024+00:00","downloadCount":409,"mmu":false,"category":{"id":"50","path":[{"id":"48","name":"Hobby & Makers","nameEn":"Hobby & Makers","__typename":"CategoryType"},{"id":"50","name":"Organizers","nameEn":"Organizers","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2023-09-27T18:32:44.055538+00:00","image":{"id":"2248851","filePath":"media/prints/595952/images/4746264_a4d7d78d-5896-4eb7-810f-7ee358e5a806_0252d3bf-b993-4b84-9d0a-064c47b5bcbc/unbenannt.jpg","rotation":0,"imageHash":"skgOFYrnl3hop3iPdYaJdxiYgIEJ","imageWidth":1221,"imageHeight":806,"__typename":"PrintImageType"},"imagesCount":1,"nsfw":false,"aiGenerated":false,"politicalContent":false,"club":false,"price":null,"priceBeforeSale":null,"eligibleForNomination":false,"user":{"id":"1285090","handle":"drho1337","verified":false,"dateVerified":null,"publicUsername":"drho1337","avatarFilePath":"media/auth/avatars/64/64c472b1-46dc-4e34-953b-567059801f05.jpeg","badgesProfileLevel":{"profileLevel":15,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isHiddenForMe":false},"latestContestResult":null,"__typename":"PrintType"},{"id":"743598","name":"Solder Buddy","slug":"solder-buddy","ratingAvg":"5.0000000000","likesCount":118,"liked":null,"datePublished":"2024-01-29T20:25:28.343653+00:00","dateFeatured":null,"firstPublish":"2024-01-29T20:25:28.340246+00:00","downloadCount":309,"mmu":false,"category":{"id":"52","path":[{"id":"48","name":"Hobby & Makers","nameEn":"Hobby & Makers","__typename":"CategoryType"},{"id":"52","name":"Electronics","nameEn":"Electronics","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2024-01-29T20:25:28.362038+00:00","image":{"id":"2714366","filePath":"media/prints/743598/images/5806440_da6f12df-1527-425e-b53d-7730531478c9_b981b62e-238f-4a3d-bdb0-0215620bcabf/img_3787.jpg","rotation":0,"imageHash":"4zgGDYZgyam/aGevZoaEZn5Q9ShU","imageWidth":4032,"imageHeight":3024,"__typename":"PrintImageType"},"imagesCount":6,"nsfw":false,"aiGenerated":false,"politicalContent":false,"club":false,"price":null,"priceBeforeSale":null,"eligibleForNomination":false,"user":{"id":"1285090","handle":"drho1337","verified":false,"dateVerified":null,"publicUsername":"drho1337","avatarFilePath":"media/auth/avatars/64/64c472b1-46dc-4e34-953b-567059801f05.jpeg","badgesProfileLevel":{"profileLevel":15,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isHiddenForMe":false},"latestContestResult":null,"__typename":"PrintType"},{"id":"621741","name":"Bambu Lab Manual Material System","slug":"bambu-lab-manual-material-system","ratingAvg":"5.0000000000","likesCount":91,"liked":null,"datePublished":"2023-10-22T15:08:39.734163+00:00","dateFeatured":null,"firstPublish":"2023-10-21T17:12:06.191641+00:00","downloadCount":741,"mmu":false,"category":{"id":"136","path":[{"id":"1","name":"3D Printers","nameEn":"3D Printers","__typename":"CategoryType"},{"id":"136","name":"Bambu Lab Parts & Upgrades","nameEn":"Bambu Lab Parts & Upgrades","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2023-10-22T15:08:39.754887+00:00","image":{"id":"2335674","filePath":"media/prints/621741/images/4939273_ff8f7f23-8ec0-4038-95e3-7cf54f81d01a_8da31b6e-280b-46f5-874e-fa4a3cd26f78/img_2658.jpg","rotation":0,"imageHash":"HhgSDQJ/l3p3l3iYd3mYhw13clA3","imageWidth":3024,"imageHeight":4032,"__typename":"PrintImageType"},"imagesCount":3,"nsfw":false,"aiGenerated":false,"politicalContent":false,"club":false,"price":null,"priceBeforeSale":null,"eligibleForNomination":false,"user":{"id":"1285090","handle":"drho1337","verified":false,"dateVerified":null,"publicUsername":"drho1337","avatarFilePath":"media/auth/avatars/64/64c472b1-46dc-4e34-953b-567059801f05.jpeg","badgesProfileLevel":{"profileLevel":15,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isHiddenForMe":false},"latestContestResult":null,"__typename":"PrintType"},{"id":"593696","name":"Flexible TPU pliers","slug":"flexible-tpu-pliers","ratingAvg":"5.0000000000","likesCount":90,"liked":null,"datePublished":"2023-09-25T16:07:19.696317+00:00","dateFeatured":null,"firstPublish":"2023-09-25T16:07:19.694888+00:00","downloadCount":382,"mmu":false,"category":{"id":"51","path":[{"id":"48","name":"Hobby & Makers","nameEn":"Hobby & Makers","__typename":"CategoryType"},{"id":"51","name":"Mechanical Parts","nameEn":"Mechanical Parts","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2023-09-25T16:07:19.707433+00:00","image":{"id":"2241464","filePath":"media/prints/593696/images/4730344_88d99ae8-01fe-42ab-a840-cfa295e8efe8_bec6eb90-484e-4f34-b709-8d59454a840f/ansicht.jpg","rotation":0,"imageHash":"9fcJBIDnmIZ4h3jPRHjriZ+e+A==","imageWidth":1072,"imageHeight":674,"__typename":"PrintImageType"},"imagesCount":1,"nsfw":false,"aiGenerated":false,"politicalContent":false,"club":false,"price":null,"priceBeforeSale":null,"eligibleForNomination":false,"user":{"id":"1285090","handle":"drho1337","verified":false,"dateVerified":null,"publicUsername":"drho1337","avatarFilePath":"media/auth/avatars/64/64c472b1-46dc-4e34-953b-567059801f05.jpeg","badgesProfileLevel":{"profileLevel":15,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isHiddenForMe":false},"latestContestResult":null,"__typename":"PrintType"},{"id":"1095192","name":"Christmas Gnome","slug":"christmas-gnome","ratingAvg":"4.5000000000","likesCount":75,"liked":null,"datePublished":"2024-12-02T20:35:15.589526+00:00","dateFeatured":null,"firstPublish":"2024-12-02T20:35:15.583790+00:00","downloadCount":540,"mmu":false,"category":{"id":"14","path":[{"id":"13","name":"Art & Design","nameEn":"Art & Design","__typename":"CategoryType"},{"id":"14","name":"Sculptures","nameEn":"Sculptures","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2024-12-02T20:35:15.608067+00:00","image":{"id":"3820055","filePath":"media/prints/1095192/images/8280368_fbfa03a8-de72-4faf-9045-e441ca343d29_52c96fbf-72b7-4ddb-a9cf-6c1a272f0dee/picture.jpg","rotation":0,"imageHash":"zTgGBIAG+yOLeIiFW3n2g28u+A==","imageWidth":1280,"imageHeight":720,"__typename":"PrintImageType"},"imagesCount":1,"nsfw":false,"aiGenerated":false,"politicalContent":false,"club":false,"price":null,"priceBeforeSale":null,"eligibleForNomination":true,"user":{"id":"1285090","handle":"drho1337","verified":false,"dateVerified":null,"publicUsername":"drho1337","avatarFilePath":"media/auth/avatars/64/64c472b1-46dc-4e34-953b-567059801f05.jpeg","badgesProfileLevel":{"profileLevel":15,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isHiddenForMe":false},"latestContestResult":null,"__typename":"PrintType"},{"id":"1093340","name":"Minimalistic Shower Head","slug":"minimalistic-shower-head","ratingAvg":"5.0000000000","likesCount":62,"liked":null,"datePublished":"2024-12-01T12:12:13.655433+00:00","dateFeatured":null,"firstPublish":"2024-12-01T10:15:08.144553+00:00","downloadCount":355,"mmu":false,"category":{"id":"5","path":[{"id":"3","name":"Household","nameEn":"Household","__typename":"CategoryType"},{"id":"5","name":"Bathroom","nameEn":"Bathroom","__typename":"CategoryType"}],"__typename":"CategoryType"},"modified":"2024-12-01T12:12:13.679237+00:00","image":{"id":"3814370","filePath":"media/prints/1093340/images/8267126_e8d7e0f8-dbd4-4986-ac14-2969bdd2ca2e_9f576dd7-1806-4194-a488-79627d715d3a/screenshot-2024-12-01-105732.png","rotation":0,"imageHash":"5/cBBIB3yalIiKifZ+dXp3B1Cg==","imageWidth":1231,"imageHeight":668,"__typename":"PrintImageType"},"imagesCount":4,"nsfw":false,"aiGenerated":false,"politicalContent":false,"club":false,"price":null,"priceBeforeSale":null,"eligibleForNomination":true,"user":{"id":"1285090","handle":"drho1337","verified":false,"dateVerified":null,"publicUsername":"drho1337","avatarFilePath":"media/auth/avatars/64/64c472b1-46dc-4e34-953b-567059801f05.jpeg","badgesProfileLevel":{"profileLevel":15,"__typename":"BadgesProfileLevelType"},"__typename":"UserType","isHiddenForMe":false},"latestContestResult":null,"__typename":"PrintType"}],"featured":false,"__typename":"HighlightedModelsType"},"designer":false,"stripeAccountActive":null,"membership":null},"contests":[],"contestsResults":[],"prusameterPoints":null,"latestContestResult":null,"referencingArticles":[]}}}

608 Bearing
