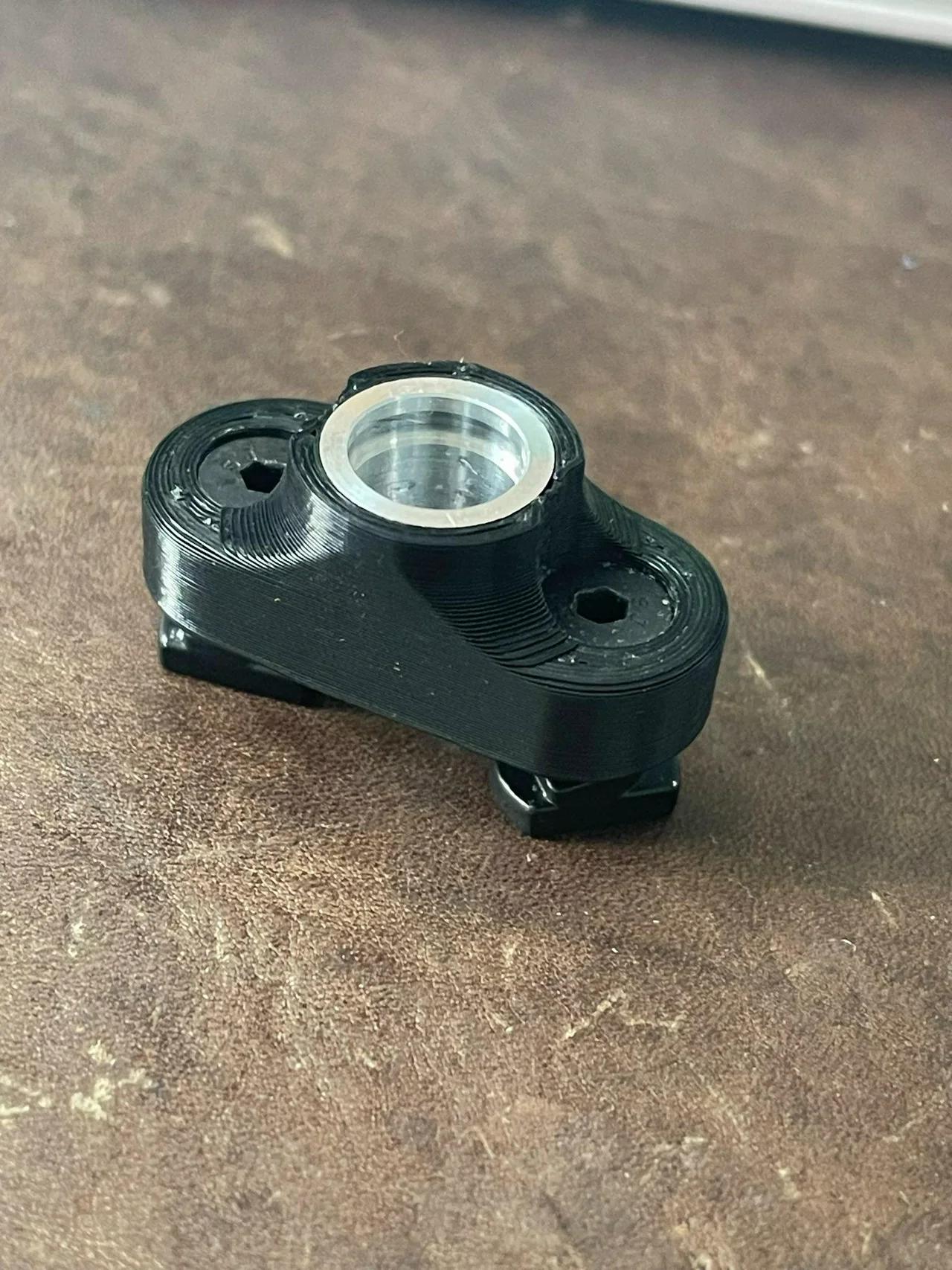

MLOK QD Sling Swivel Mount

MLOK QD Sling Swivel Mount by DB Firearms.

This utilizes QD Socket Heat Inserts by Hyperion 2A

Print with PLA+ or better. CF Nylon would be the best for a long lasting piece. Though these have been known to withstand over 200lbs of force in PLA+

Print with the cup facing up with the MLOK nubs on the build plate. Supports on build plate.

Melting in QD insert: Use the side of a soldering iron to gently apply pressure to the aluminum QD cup. It will slowly melt in. Don't apply extra pressure. A small amount will be enough once the cup gets to the right temperature. To finish the melting in, push the cup in upside
down on a flat surface. Allow to fully cool before using.

You will need two M4x12mm flat head screws with mlok style nuts on the back.
