PICO 4 vr Gunstock (1.1)

1.1 -- Redesigned right hand grip to reduce wear on controller

After 3 major revisions and many less significant changes, I have finally gotten the gunstock to a point where I am happy with the design


The firing hand grip is attached to the stock, but the stock is still light enough to perform other tasks such as grenades and secondary weapons. The only big issue is bolt action rifles where you may need to use your off-hand to cycle the bolt. If any other issues come up, please let me know

Parts you need:
1x 20mm pipe of your desired material (at least 75cm cut into 35cm and 40cm)

5x m3 bolts (13-16mm long)

5x m3 nuts

Printing
All the parts do need supports, but I recommend blocking out the bolt holes.
Fiddling around with print orientation is also recommended

Assembly

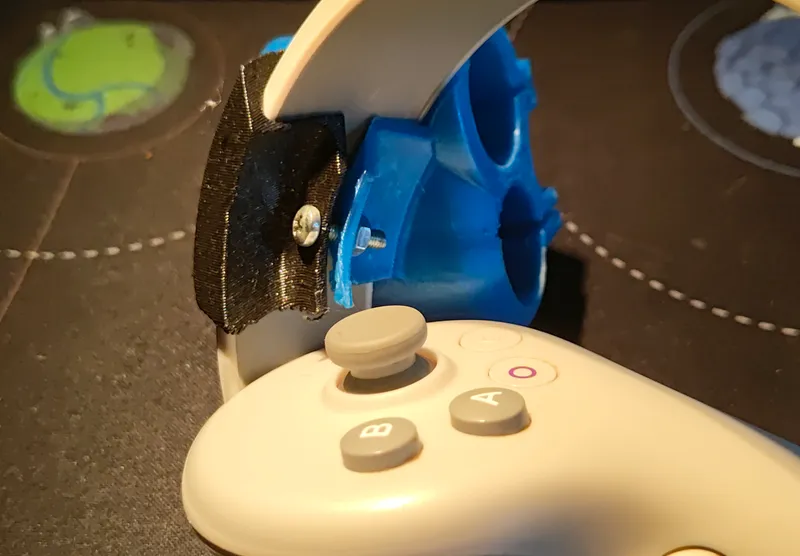

Attach right hand controller to main piece.

Attach the pipes (the longer one should be facing rearwards), and then the stock and the front hand grip. The pipes should be tightened with just enough force to allow them to move when twisted, but not with direct force. This allows for adjustability mid-game.

Please notify me of any issues
