Pendant Lamp - Square Design

- Manufactured on basic FDM 3d printer.
- Accommodate bulb with e26/e27 thread.
- Maximum size of bulb diameter 60mm for adapter with frame marked as A60
- Mounted on low-cost bulb cord like IKEA HEMMA
- Recommend use only LED bulbs up to 13W. that is limitation of PLA and PTEG material.
- Possibility to assemble two lamp designs with one or two shade.

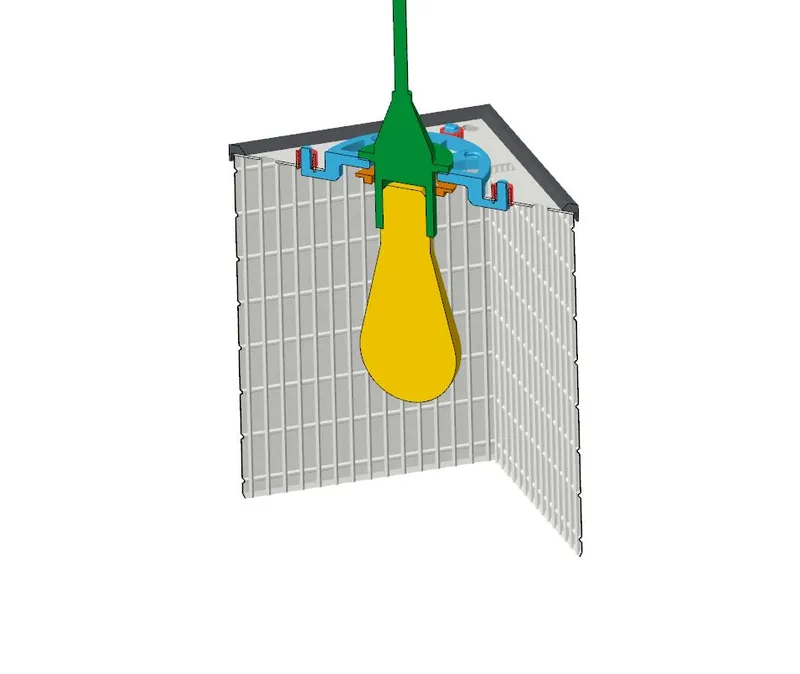

- Universal Mounting system allow combine shade designs on standard adapter.
- Lamp components are design to fit MK3S printing bed with maximus Z dimension 210mm
- SLICER project files are share with parts setup
- Printing time on mk3s is about 7 hours for big parts like shades or  adapter with frame.


Possible lamp configurations:

Big Lamp from two shades:

• Use part: Adapter 140 frame

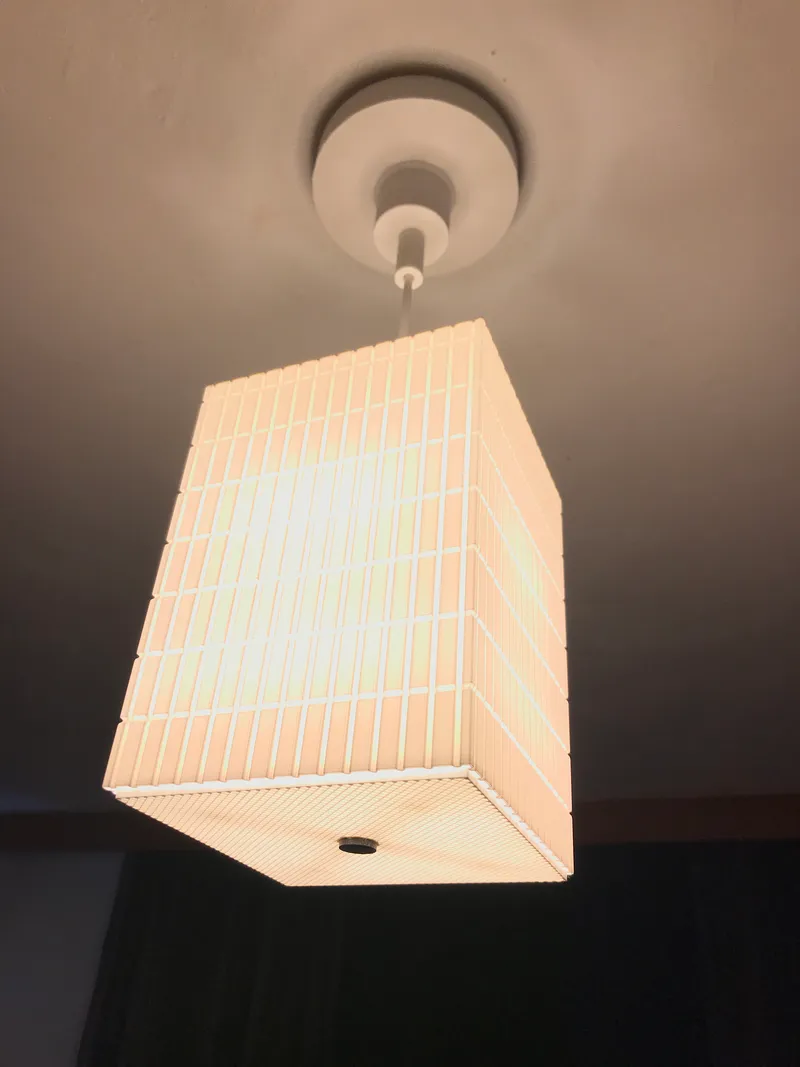

Lamp with one shade and closed bottom:

• Use part: Adapter 12 frame

Lamp with one shade open bottom:

• Use part: Adapter 12

Bottom part

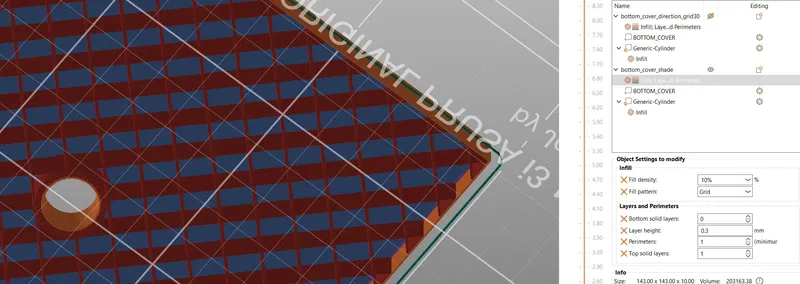

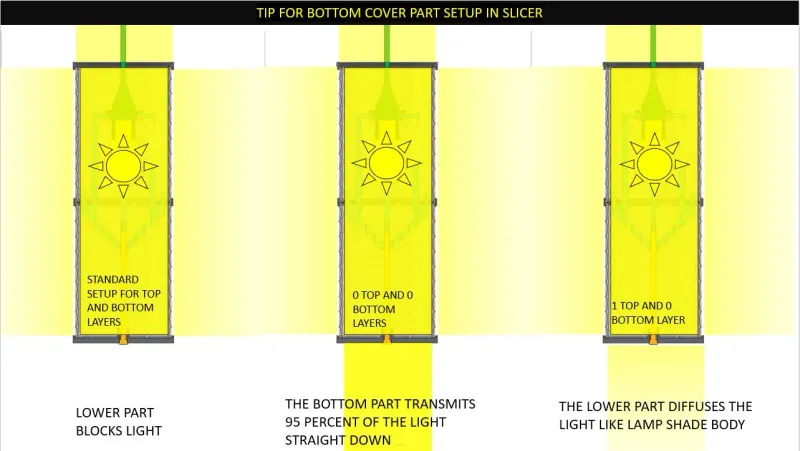

Configure slicer setting for lamp bottom part to get different part function.

•  translucent - no bottom layer and only 1 top layer, change Minimum shell thickness to 0mm ,

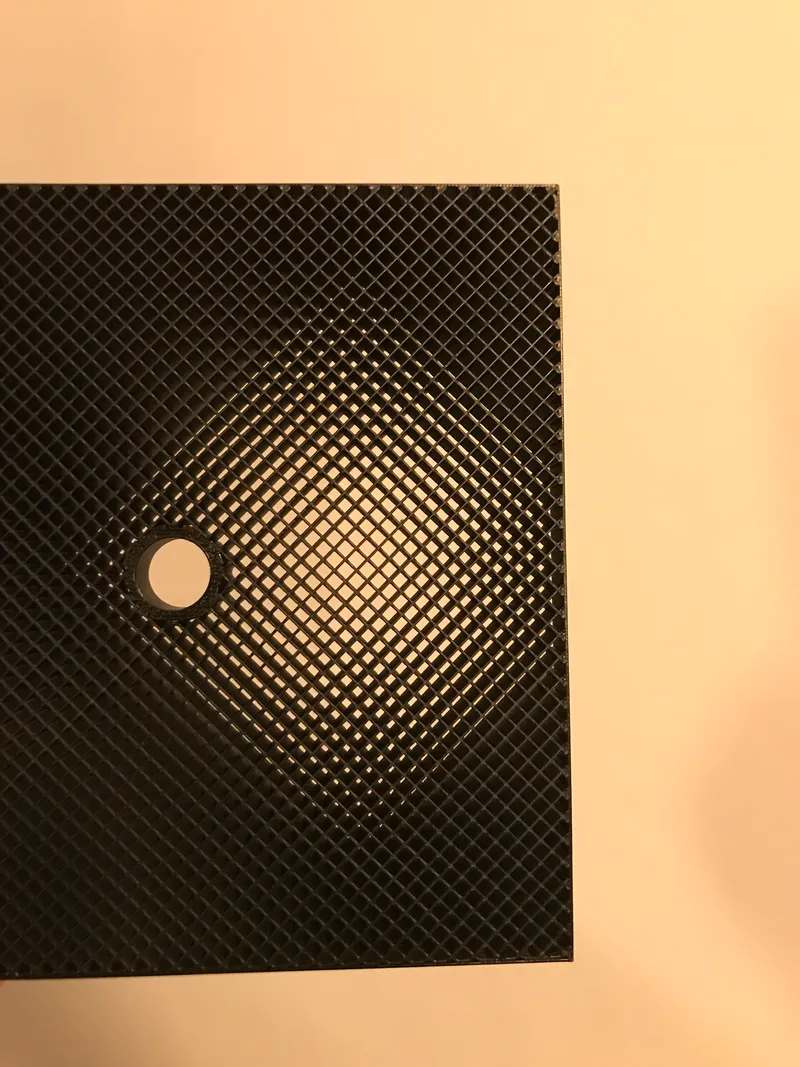

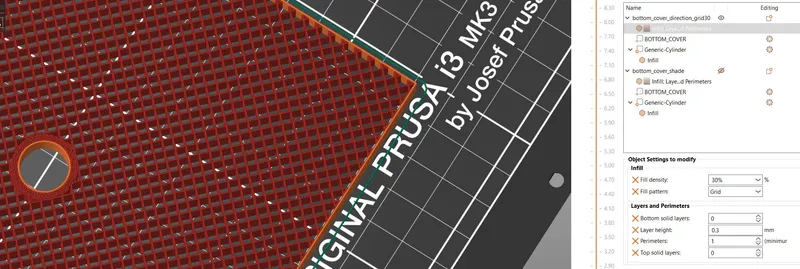

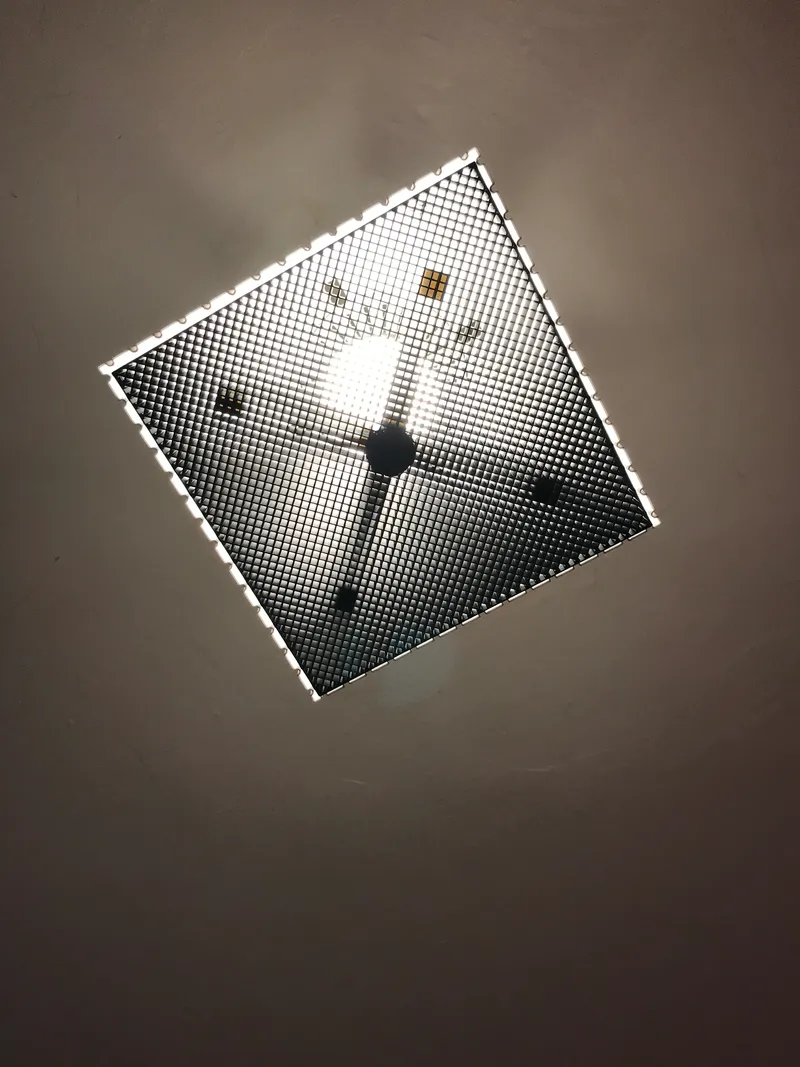

• directional grid lens  - In Slicer set no top and bottom layers  only infill. Sample is with grid infill on 30 percent for fine pattern

direction grind in white

direction grid in black

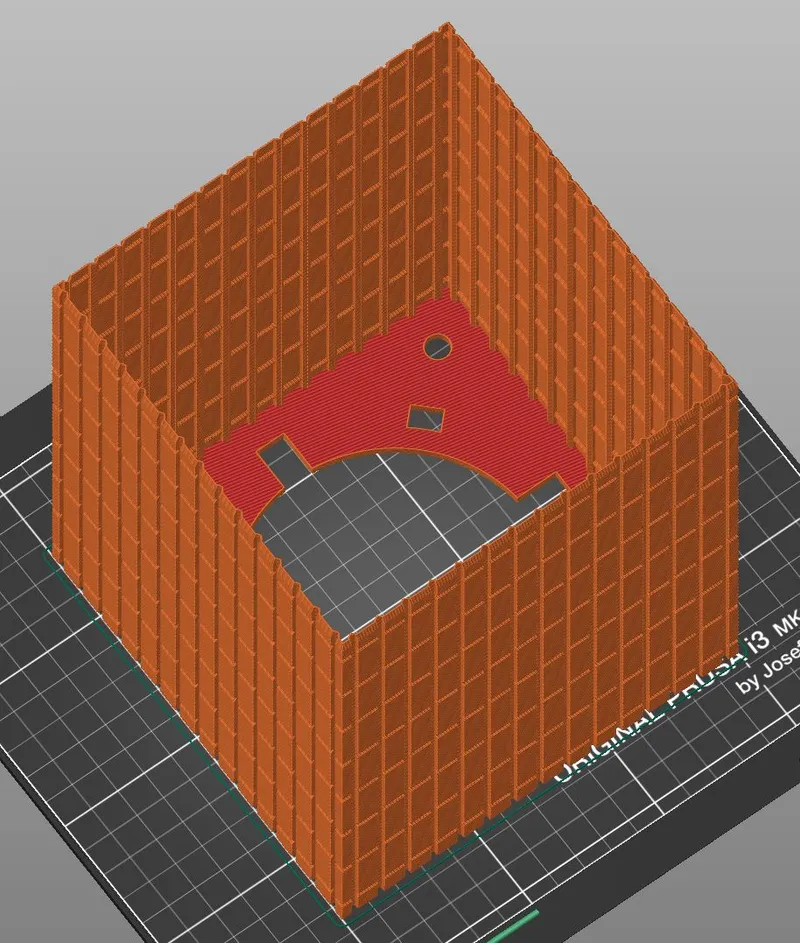

Lamp shade

designed for vase mode print. Size 150x150x210 MK3S+

Recommended number of bottom layers 8 - 12 for strong shade base in vase mode

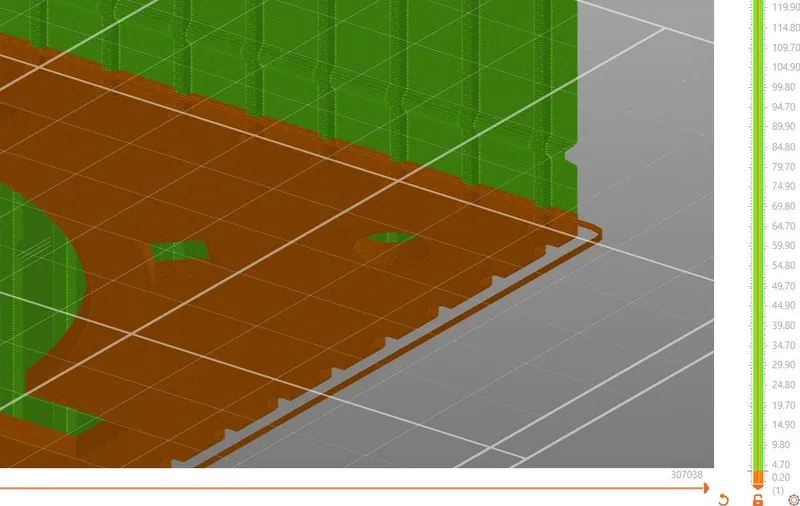

Layer change after first layers for base. Base from transparent material for more light to ceiling.
