Tray with Maze in Various Sizes

I've crafted this unique tray that combines functionality with an artistic touch, introducing a flat surface engraved with a labyrinth pattern. This design is not just for aesthetics; it serves a dual purpose. The maze forms ribs that increase airflow, making it perfect for drying small bottles in the bathroom or any items where quick drying is desired. Beyond its practicality, this tray stands out as a decorative element, enhancing the ambiance of any space it occupies.

The tray's design features a short, elegantly swung rim, adding to its sleek and modern appearance. It is available in various sizes, from small to large, catering to different needs and preferences. Each size boasts a unique, random labyrinth pattern, ensuring that no two trays are exactly alike.

Update 2024-06-05: Added a showcase folder.

Explore the Comprehensive PDF Catalogs

Finding the perfect model amidst the large number of variants has never been easier! Take a look at the detailed PDF catalogs in the "Other Files" section in the “Files” tab. This catalog provides a visual overview of all the models in this project, complete with dimensions, to help you quickly find exactly what you need.

But it's more than just a visual treat; the catalog includes organized tables that let you easily compare models based on specific parameters. Once you've spotted the model that meets your criteria, just search for its filename to find your chosen model.

Printing the Tray

In the files section, you'll find a PrusaSlicer example project, offering basic settings as a starting point for your prints. For more detailed information, please refer to the table below:

Nozzle Size and Layer Height

The tray is designed to print effectively with 0.4mm, 0.6mm, and 0.8mm nozzles, accommodating all wall thicknesses. Select a layer height appropriate for your nozzle size, and always review the sliced result before printing. Aim for the walls to be printed solely with perimeter lines, free of infill.

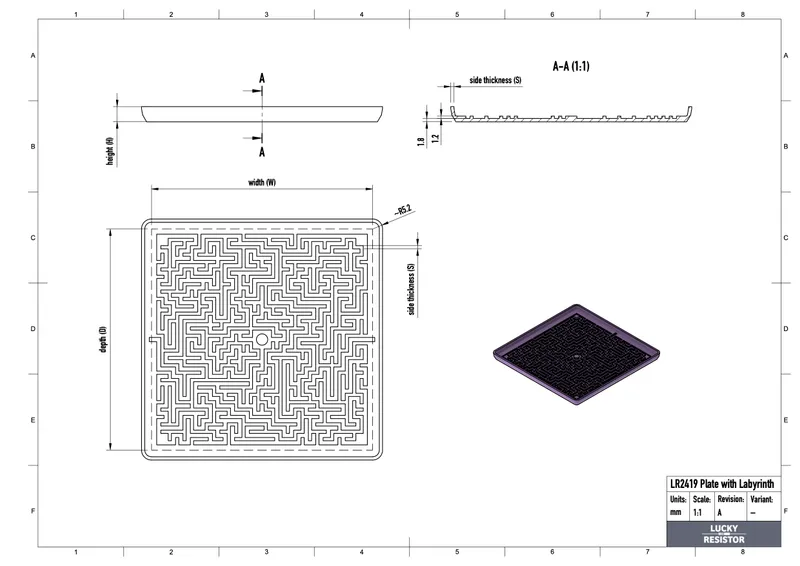

Dimensions

The trays are designed to be as versatile in size as they are in function. An example filename like LR2419-S17-D120-W120 decodes as follows:

• S17 indicates a side thickness of 1.7mm.
• D120 and W120 specify the inner depth and width, both measuring 120mm.

Locating the Model Files

All the 3D models for the trays can be found in the "Files" tab, nestled under the "Other Files" category. To make your selection process as smooth as possible, I've organized them into separate ZIP files based on file format—choose from 3MF and STEP files according to your needs. Simply download the ZIP file that corresponds with the format you require.

Where are the STL files?

I decided to no longer provide STL files, as the 3MF format already contains a mesh based format that can be read by almost every slicer software. In case you need the STL format, please open the 3MF file using PrusaSlicer and export the model as STL from there.

The Source of the Maze

The maze in these model files was created using the following open-source project, that let you easily generate customized mazes in SVG format.

https://github.com/erbsland-dev/erbsland-maze

Explore More from Meti·kumi

Interested in my designs? Browse through my collection of 3D models:

👉 https://metikumi.com/3d-models/

Stay connected on social media for the latest updates and work-in-progress insights:

👉 https://metikumi.com

Conclusion

This tray with its labyrinth pattern is more than just a utility item; it's a piece of art that blends functionality with elegance. Whether you're using it to dry items quickly or simply as a decorative element, it's sure to add a unique touch to your home. If you find this design appealing, please consider rating it and sharing photos of your prints.

Happy printing!
