Ridgid Trim Router Vacuum Hose Adapter
A vacuum hose adapter for my Ridgid trim router. No (extra) supports required.
26
158
2
774
updated
February 20, 2024
Description
PDFVery minor supports built into the adapter. (see red in below image).

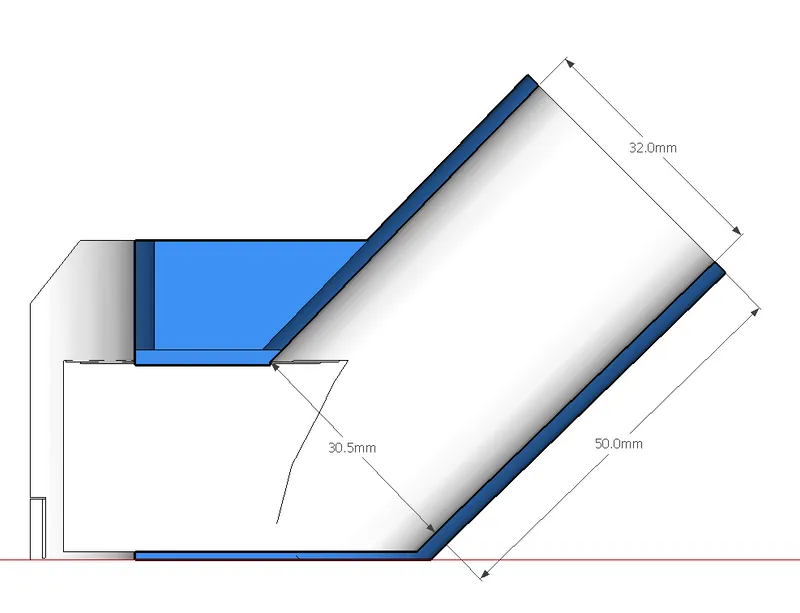

This adapter is designed for the tapered suction end of my central vacuum hose. Connection diameters are as per the following image.
- 0.2mm layer height
- 0.4mm nozzle
- PLA
- 3 perimeters
- 15% infill
Tags
Model origin
The author remixed this model.
Differences of the remix compared to the original
- Changed hose attachment diameter
- Changed print orientation
- Moved intake port as low as possible
- Designed my own 3D printed zip tie alternative
