Sturdy SKÅDIS IVAR mounts

These mounts allow you to fix a SKÅDIS pegboard to the side of a 50 cm IVAR shelf (Ikea).

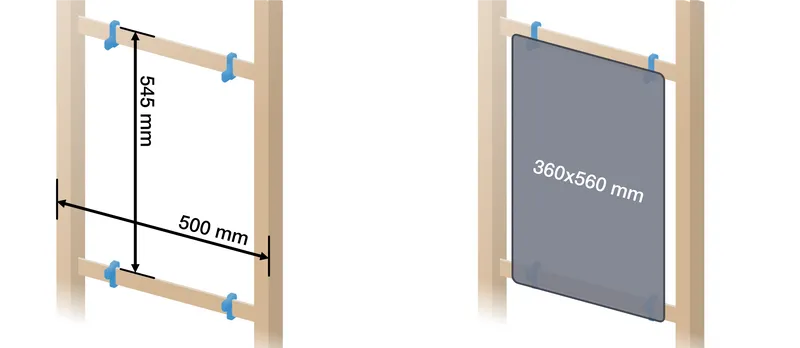

Specifically, they will attach a small SKÅDIS (36x56 cm) to two 54.5 cm apart horizontal IVAR side boards. On my 226 cm tall IVAR, that's the 3rd and 4th side board, counting from the bottom. Make sure your sideboards have the right distance before printing!

While there are a few mounts for this purpose out there, I couldn't find one that secured the SKÅDIS on both its top and bottom. I also wanted to reuse the original SKÅDIS mounting screws to preserve its aesthetic, so these mounts have printed holes that these screws can bite into.

To assemble everything, first hook the mounts onto the side boards, then screw the SKÅDIS onto them using the mounting screws that came with it. After checking that the position is right, clamp down the mounts using an M3 screw each and the spacer blocks.

The clamping part is modelled after the awesome IKEA Ivar Rack Clothes Hanger by @UkoTerpuh – check out their page for detailed clamping instructions.

Recreated the part that clamps on the IVAR board, but added the SKÅDIS mounting parts instead of hooks.
