Place up to 40 AA or AAA batteries inside the storage module. Add more storage modules. Attach the testing module to a storage module. Quickly check the voltage of each battery under a load of approx. 150mA.
Design goals:
Due to the built-in electronics, there is a bit of soldering work.
What you'll further need:
| 1x | Microswitch, compatible in size and function with this one |
| 1x | Mini digital voltmeter, compatible in size and function with this one |
| 1x | Pin header 4pol, male |
| 1x | Pin header 4pol, female |
| 4x | Straight solid copper wire, 1.5mm², 20 cm |
| 1x | Straight solid copper wire, 1.5mm², 7 cm |
| 2x | Straight solid copper wire, 1.5mm², 3 cm |
| 1x | 9-Volt battery |
| 1x | 9-Volt battery connector, like this one. |
| 1x | 10 ohm, 500 milliwatts (load) resistor |
| 1x | Shrinking tube, 5 cm |
| 1x | Flexible (silicone) wire cable, ~26 AWG |
Wiring diagram (test module):

Some hints:

I used PLA (Prusament Galaxy Black) with 10% infill for printing. The 3MF file contains all part with the correct orientation. Adjust temperatures to your needs and make sure you print the model with 0.3mm layer height!

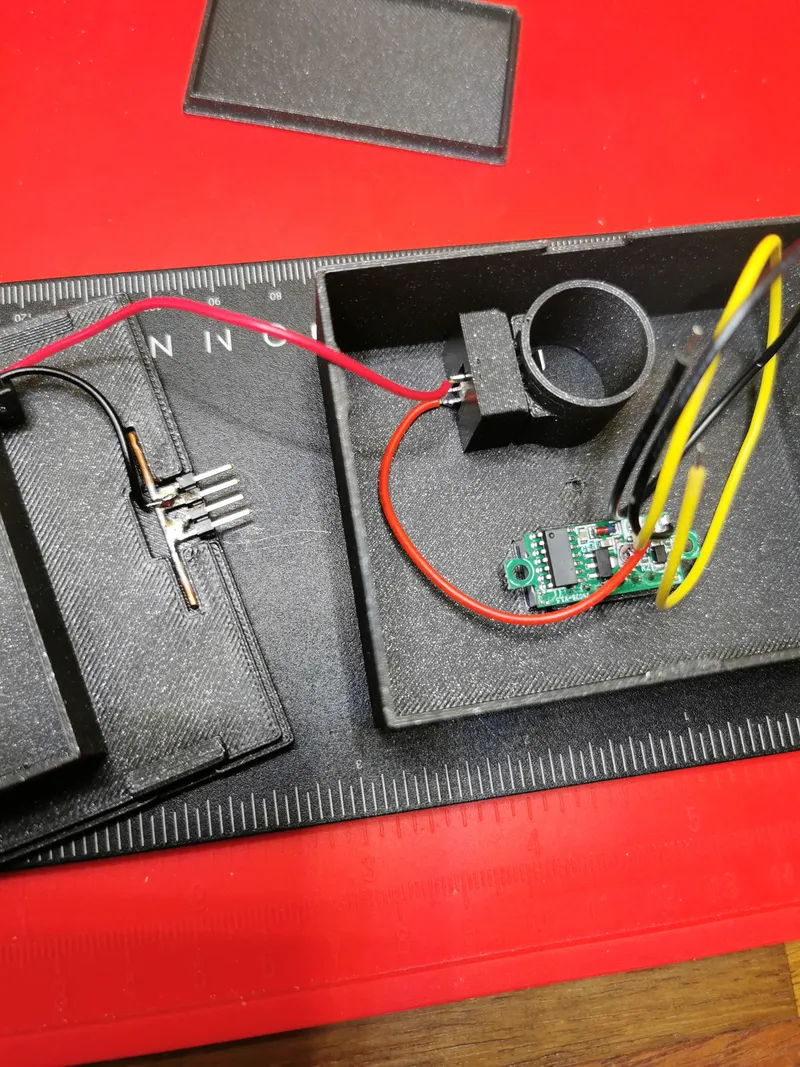

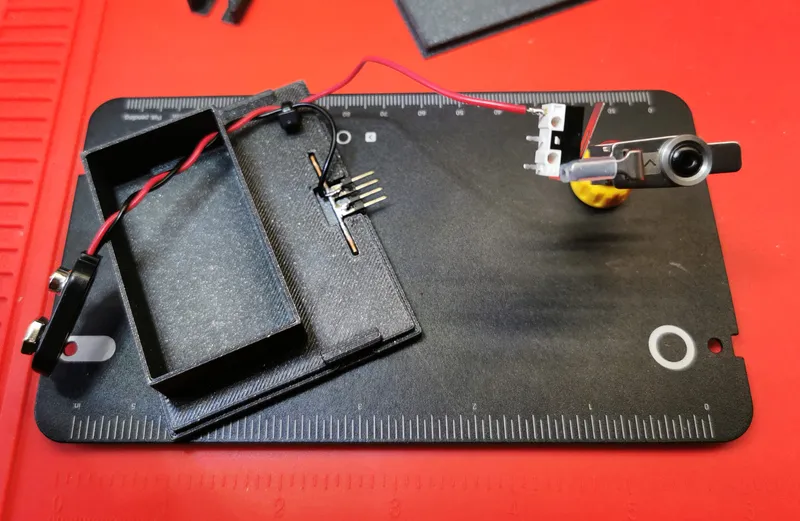

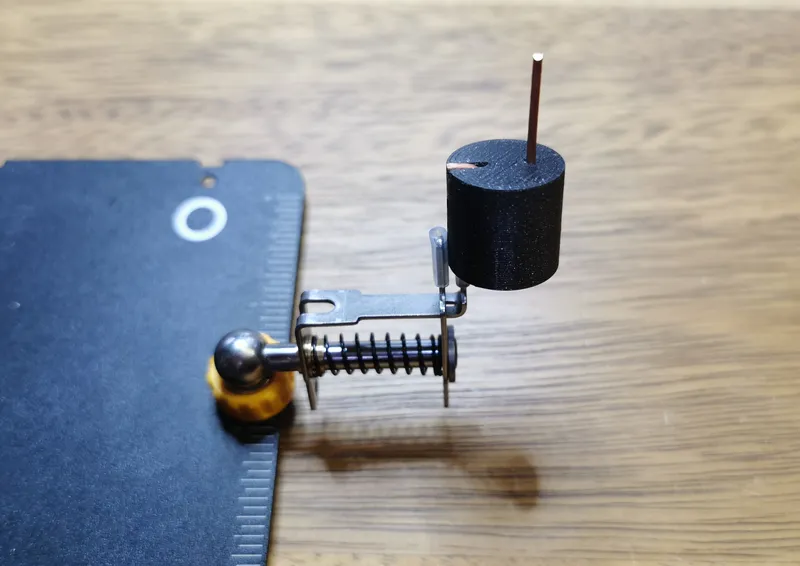

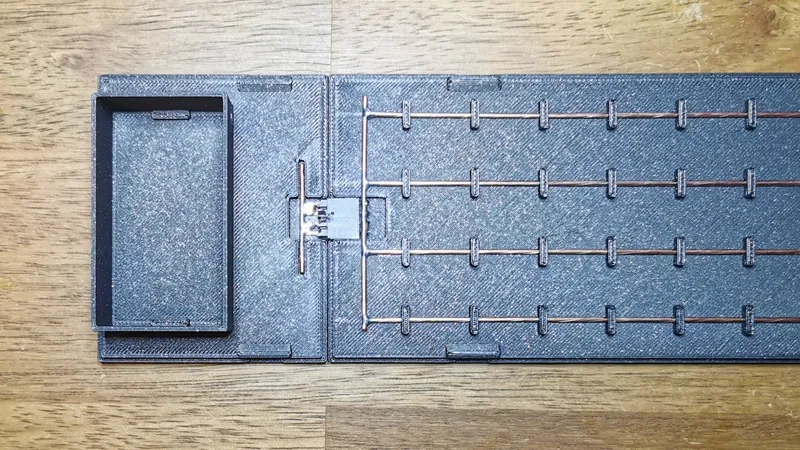

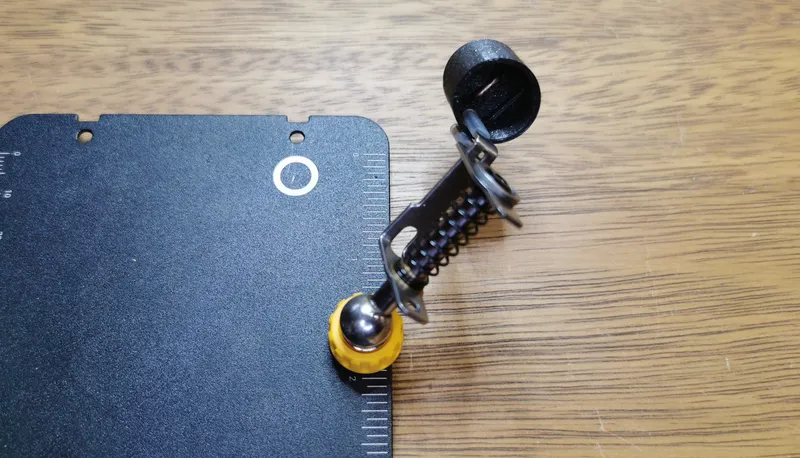

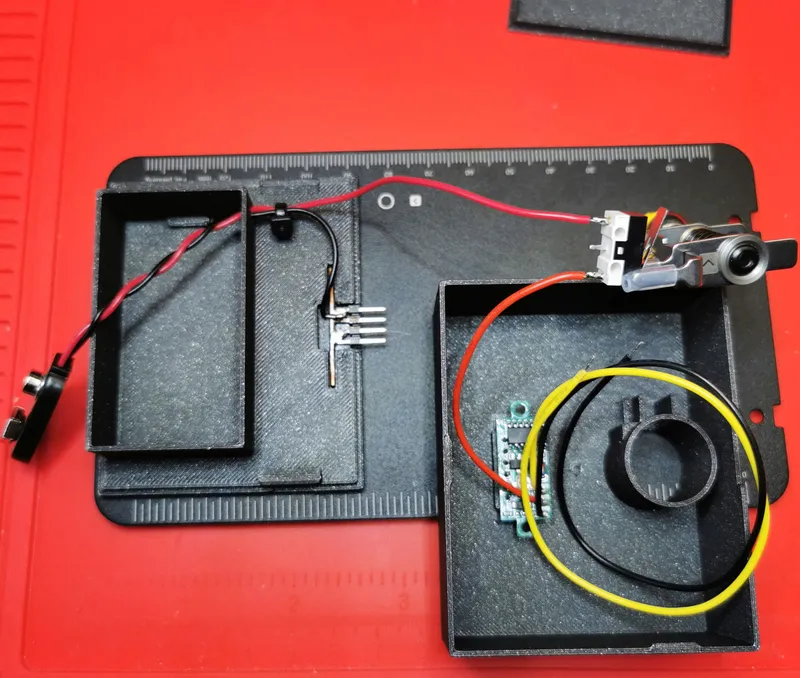

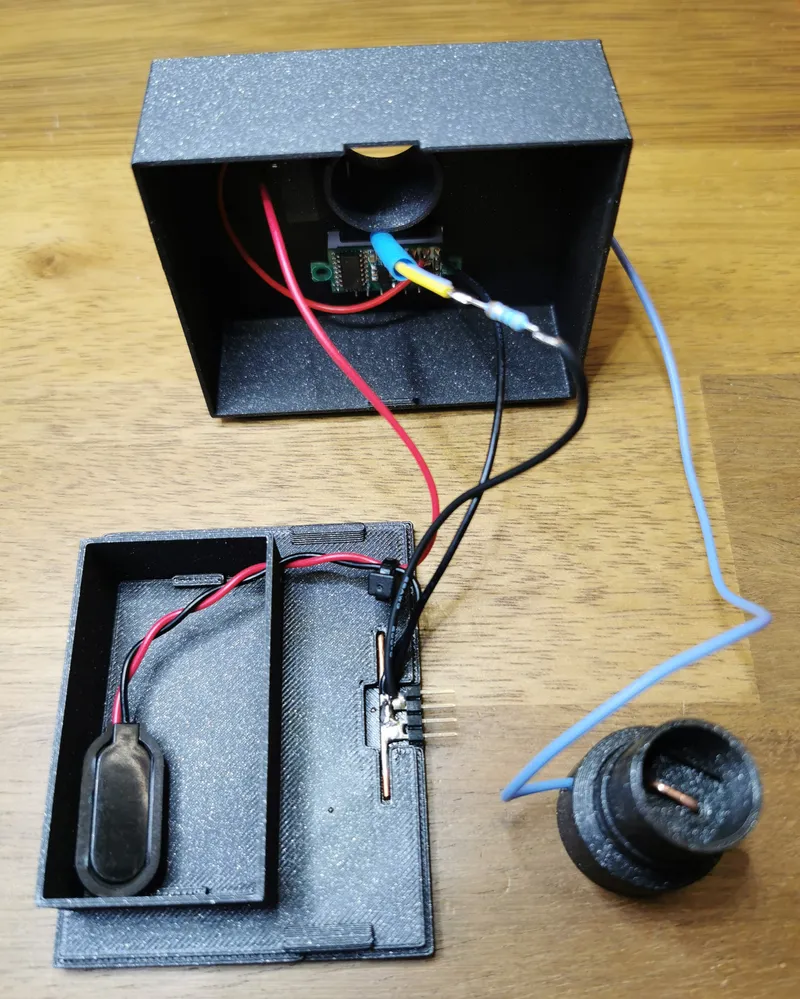

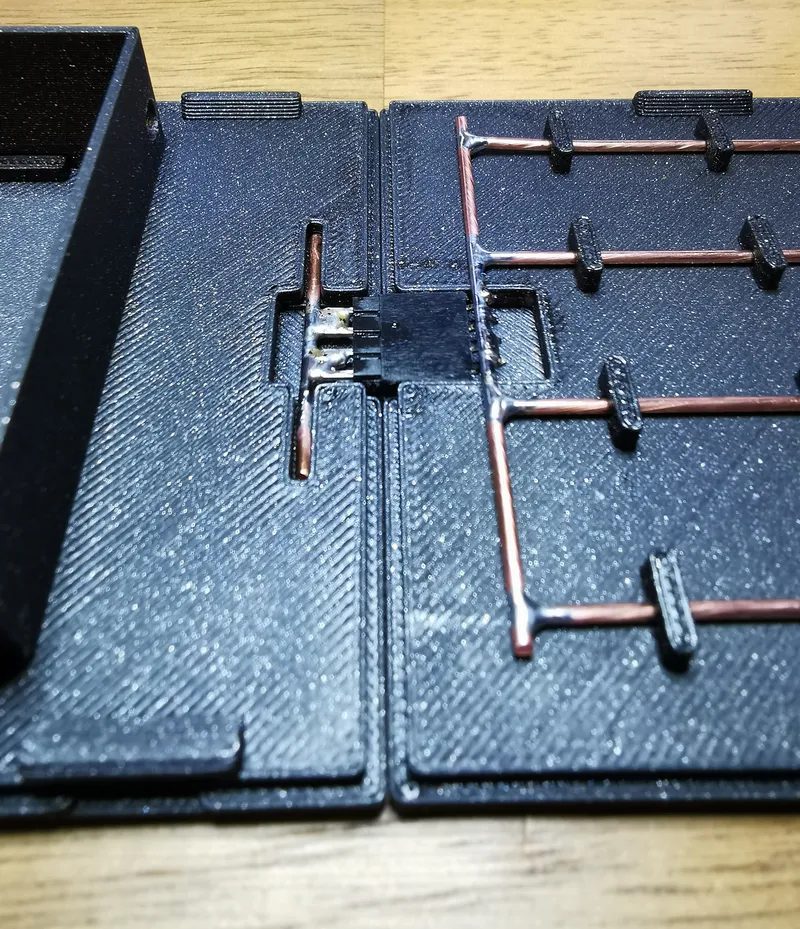

Here are some pictures from the assembly:










If the model generates some resonance, I'll provide more detailed assembly instructions on request.
- enjoy -
